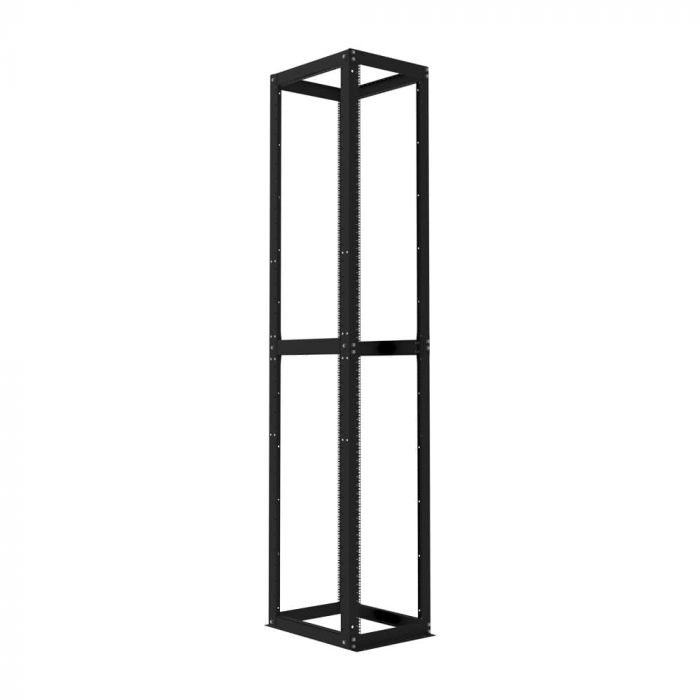

70U 111 Open Frame Rack 24" W x 28.875" D
Need a custom size or rack? Give us a call. We have engineers ready to design your product and in house manufacturing for FAST turnaround time.
70U of Rackable Space
- Rackmount Depth: 28.875" (733mm)
- Rack Height: 122.6" (3,124mm)
- Hole Type: 3/8" Square Holes
- 24" width is perfect for data centers
- Static load capacity of 4000 lb
Dell, HP, IBM, Cisco compatible*
- Uses less floor space than cabinets
- Flush floor mount spreads load on floor tiles
- Base may be bolted to floor for stability
- Optimizes cooling
- Makes wiring easy
- Streamlined support for power strips, PDUs
See "Additional Information" for Tech Specs.
RackSolutions® is proud to be a leading provider of server racks and equipment for SoftLayer®.
The RackSolutions 70U Open Frame Server Rack is possibly the tallest server rack in the world that meets all EIA standards. The 28.875" server rack depth is compatible with all the major OEM's such as Dell, HP, IBM, and Cisco. Compatible with overhead cable trays from B-Line and other manufacturers. Read more about Open Frame Racks (opens in a new tab).
The 70U Open Frame Rack is available by phone. Please call 1-888-505-RACK to order.
Rack Top Options
Close out the top of this rack with one of four Rack Top options. Choose from black or galvanized Rack Tops with or without cable pass-throughs. Hardware included.
Power Distribution: Choose from 8, 16 or 24 Outlets
Installation Examples
Here’s a great example of three, open frame racks bayed together in a server room.
Note: Above is an example of two, 50U, Open Frame Server Racks bayed together with two, 55U Server Racks in a data center.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 169.030000 |
| Country of Manufacture | United States |
| Included Hardware | 111-5215
|
| Rack Type | 4 Post Rack, Open Frame |
| Ingram Part Number | 111-5215 - 8FG034 |
| Tech Notes | Hole Type: EIA 3/8" square hole Rack Post: J-shape Rack Height: 122.6" (3124 mm) Rack Mount Depths: 28.875" (733 mm) |
| Finish | Black, textured powder coat |
