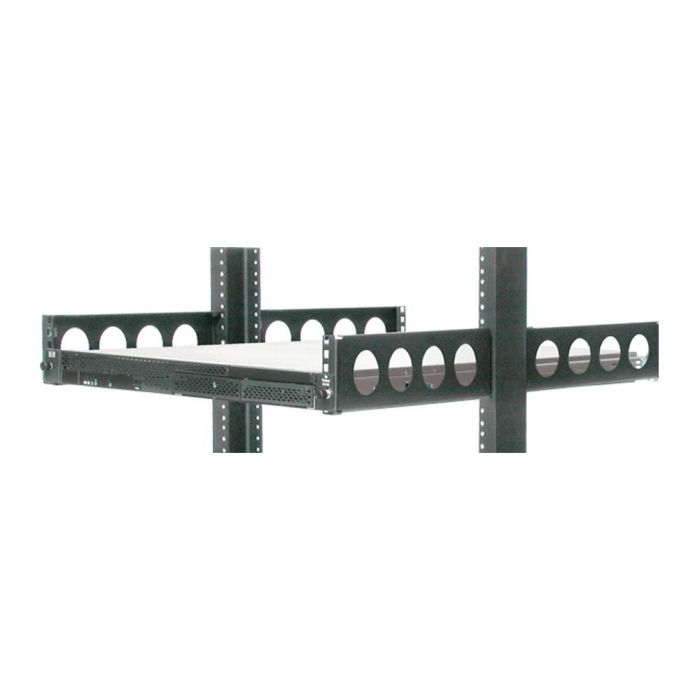

Rear view 2Post flush mount with server - DL140 G3

 Rear view 2Post flush mount with server - DL140 G3

Hover to View, Click to Zoom

  • Front view 2Post center mount with server - DL140 G3
  • Front view 2Post flush mount with server - DL140 G3
  • Rear view 2Post flush mount with server - DL140 G3

HP DL140 G3 - Rackmount Rail Guide

P/N: HP-DL140-G3

HP Standard 1U Universal Rail Kit

Supports racks with round or square mounting holes (including Compaq/HP 7000, 9000, 10000 and H9 series), with an adjustment range of 22.25" - 37.75"

2Post center mount

  1. Use the HP standard 1U universal rail kit, and convert 2U of 2Post rack to 4Post using 2POST-2UKIT
  2. (One kit mounts two servers)
  3. Compatible with upright depths from 3 - 10" (76 - 254 mm)
  4. If you don't have the HP standard universal rail kit, use the 1UKIT-009 fixed rail kit.

2Post flush mount

  1. Use the HP standard 1U universal rail kit and 4UKIT-003

4Post square racks

  1. Use the HP standard 1U universal rail kit, depth range 24 - 31.75"
  2. If there are compatibility issues with your rack, use RackSolutions' 1UKIT-109 Universal Rails (one per server)

4Post round racks

  1. Use the HP standard 1U universal rail kit, depth range 24 - 31.75"
  2. If there are compatibility issues with your rack, use RackSolutions' 1UKIT-109 Universal Rails (one per server)

Wall Mounting

  1. Use HP Universal Rail Kit, and 1URACK-110 Wall Mount Kit

Rack Issues, Problems

  1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
Note: Your server may look different than the one pictured
Product Name P/N: Availability Price Qty
2U, 2Post Conversion Kit 2POST-2UKIT
In Stock
£65.00
1U, 2Post Rack Rails 1UKIT-009
In Stock
£76.00
4U Flush Mount Conversion Kit for 2Post Racks 4UKIT-003
In Stock
£125.00
1U, Universal Rack Rails 1UKIT-109
In Stock
£68.00
2U Wallmount Rack 2URACK-110
In Stock
£110.00
