HP DL145 G2 - Rackmount Rail Guide

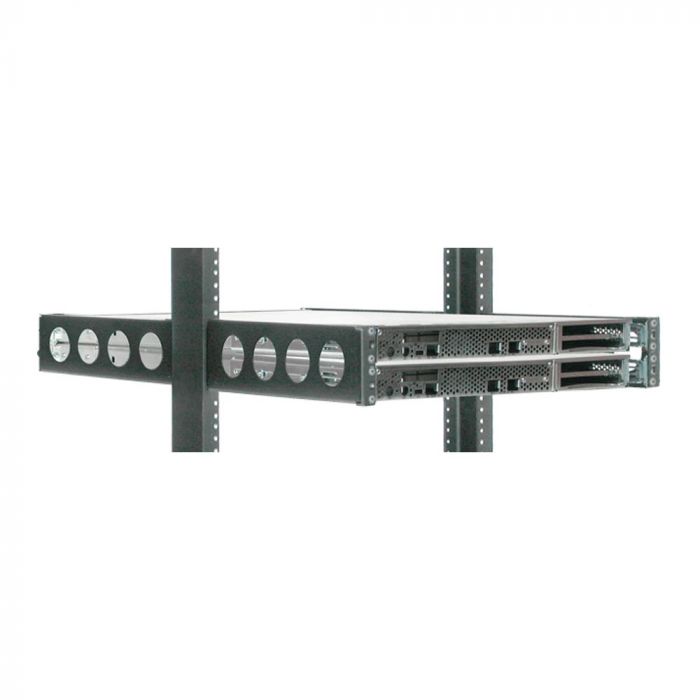

Our Rackmount Rail Guide serves to show how the HP DL145 G2 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 1UKIT-109 and 1UKIT-009 as mounting solutions for this server chassis.
Note: Your server may look different than the one pictured


+ HP Standard 1U Universal Rail Kit
Supports racks with round or square mounting holes (including Compaq/HP 7000, 9000, 10000 and H9 series), with an adjustment range of 22.25" - 37.75"
+ 2Post center mount
Use the 1UKIT-009 fixed rail kit (one per server)
Convert 2U of 2Post rack to 4Post using 2POST-2UKIT
(1 kit mounts two servers)
+ 2Post flush mount
Use the HP standard 1U universal rail kit and 4UKIT-003
+ 4Post square racks
Use the HP Standard 1U Universal Rail Kit. Depth range 24" - 31.75"
If there are compatibility issues with your rack, use RackSolutions' 1UKIT-109 Universal Rails (one per server)
+ 4Post round racks
Use the HP Standard 1U Universal Rail Kit. Depth range 24" - 31.75"
If there are compatibility issues with your rack, use RackSolutions' 1UKIT-109 Universal Rails (one per server)
+ Wall Mount
Use HP Universal Rail Kit
and 2URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above
