HP DL360 G2 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP DL360 G2 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.
Note: Your server may look different than the one pictured
+ HP Standard Rails
The server ships with Fixed Rails which support several rack options
+ Sliding Rail Option
The Slide Rail option is for square holed racks with an installation depth of approximately 29"
+ 2Post Rail Option
The 2Post Rail option supports uprights from 3" to 6.5"
+ 3rd Party Rail Option
The 3rd Party Rail supports round or square holed racks with an installation depth from 28" to 33"

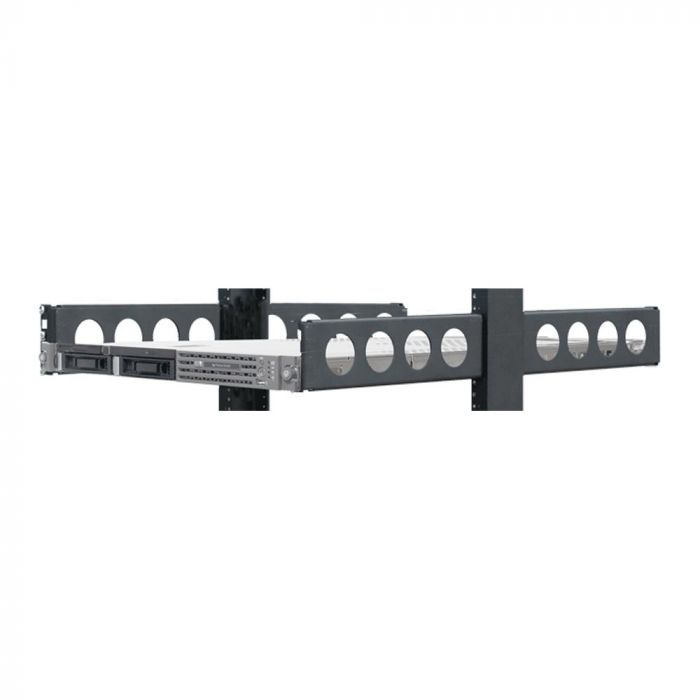

+ 2Post center mount
Use the HP 3rd party rail kit. Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (One kit mounts two servers)
+ 2Post flush mount
Use the HP 3rd party rail kit and 4UKIT-003
+ 4Post square hole racks
Use the HP standard rails for Compaq square hole racks only
Use the HP 3rd party rail kit for all other square racks
Cage nuts are required
+ 4Post round hole racks
Use the HP 3rd party rail kit
+ 4Post threaded hole racks
Use the HP 3rd party rail kit
+ Double 2Post Racks
Use the HP 3rd party rail kit
+ Wall Mounting
Use HP Universal Rail Kit
Use 1URACK-110 Wall Mount Kit
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
