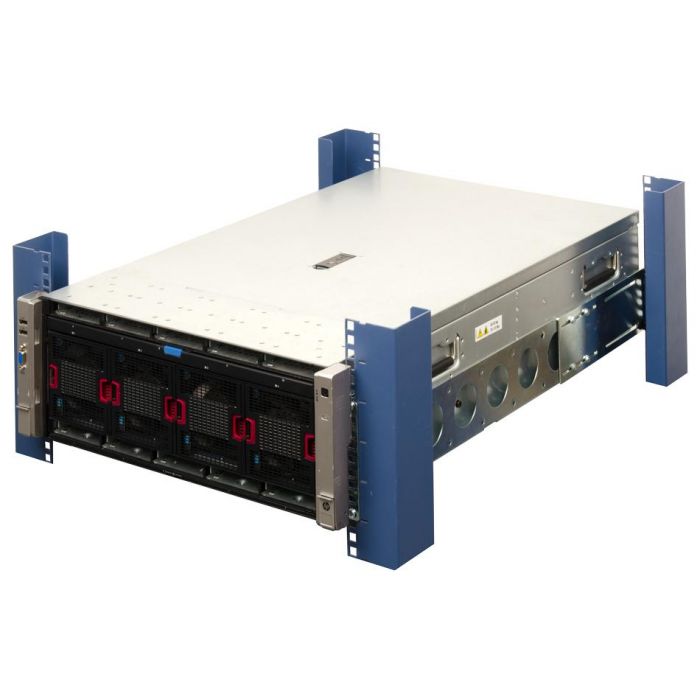

  • Front view -DL580 G8 mounted with HP's rail in a 4Post Rack
  • Rear view -DL580 G8 mounted with HP's rail in a 4Post Rack
  • Side view -DL580 G8 mounted with HP's rail in a 4Post Rack
  • Front view - DL580 G8, 4Post mounted with 3UKIT-109 Universal Rails
  • Side view - DL580 G8, 4Post mounted with 3UKIT-109 Universal Rails
  • Rear view - DL580 G8, 4Post mounted with 3UKIT-109 Universal Rails

HP DL580 G8 - Rackmount Rail Guide

P/N: HP-DL580-G8

HP Standard DL580 G8 Rail Kit

HP's Quick deploy rail systems work as a tool-less sliding solution for most square hole racks. Rack mounting depth must be between 28 ½” to 37”

2Post center mount

  1. Convert 4U of 2Post rack to 4Post using HP's rails and a
    2POST-4UKIT. One kit mounts one server.
    Compatible with upright depths from 3 - 6" (76 - 152 mm)
  2. If you don't have HP's universal rail kit, use RackSolutions'
    Universal Rails, 3UKIT-009

2Post flush mount

  1. Convert 4U of 2Post rack to 4Post using HP's rails and a 4UKIT-003
    One kit mounts one server.
    Compatible with upright depths from 3 - 6" (76 - 152 mm)
  2. If you don't have HP's universal rail kit, use RackSolutions'
    Universal Rails, 3UKIT-009

4Post racks

  1. Use HP's rail kit in a Square hole rack with a depth of 28 ½” to 37” or RackSolutions' Universal Rails, 3UKIT-109 for any other depth or hole type.

Rack Issues, Problems

  1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
Note: Your server may look different than the one pictured
Product Name P/N: Availability Price Qty
4U, 2Post Conversion Kit 2POST-4UKIT
In Stock
£85.00
3U, 2Post Rack Rails 3UKIT-009
In Stock
£120.00
4U Flush Mount Conversion Kit for 2Post Racks 4UKIT-003
In Stock
£125.00
3U, Universal Rack Rails 3UKIT-109
In Stock
£88.00
