HP DL585 G7 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how to rack a HP DL585 G7 both 4 post and 2 post configurations. RackSolutions offers the 3UKIT-009 3UKIT-109 as an HP alternative rail for this server chasis, The rail kit mounts in both 4 post and 2 post racks.

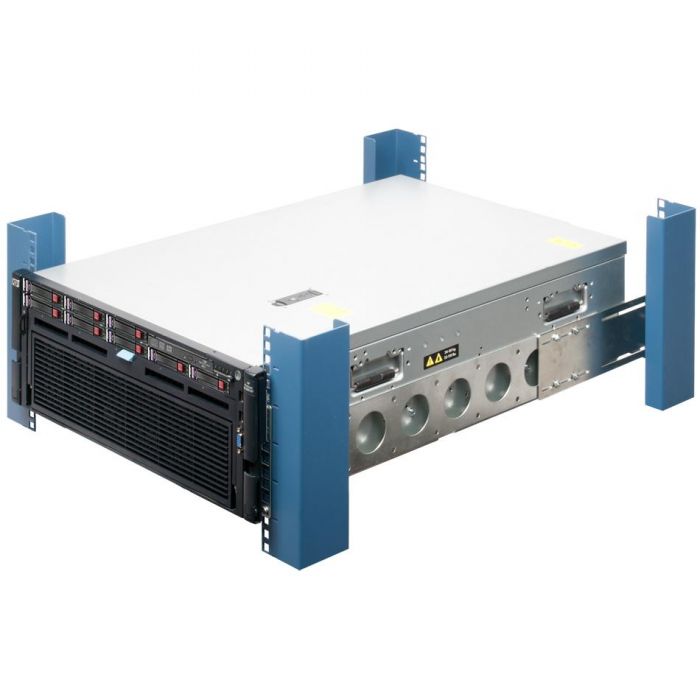

Note: Your server may look different than the one pictured
+ HP Standard 3U-7U Universal Rail Kit
Used for most square hole racks, round hole racks or threaded hole racks. Rack mounting depth must be between 24" and 36"
+ 2Post Center Mount
Convert 4U of 2Post rack to 4Post using HP's rails and a 2POST-4UKIT.
One kit mounts one server
Compatible with upright depths from 3 - 6" (76 - 152 mm)
If you don't have HP's universal rail kit, use RackSolutions' Universal Rails, 3UKIT-009
+ 4Post Square Hole Racks
Use HP's standard 3U - 7U universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 23 3/4"
+ 4Post Round Hole Racks
Use HP's standard 3U - 7U universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 23 3/4"
+ 4Post Threaded Hole Racks
Use HP's standard 3U - 7U universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 23 3/4"
+ Double 2Post racks
Use HP's standard 3U - 7U universal rail kit or RackSolutions' Universal Rails, 3UKIT-109
Call RackSolutions for depths less than 23 3/4"
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
