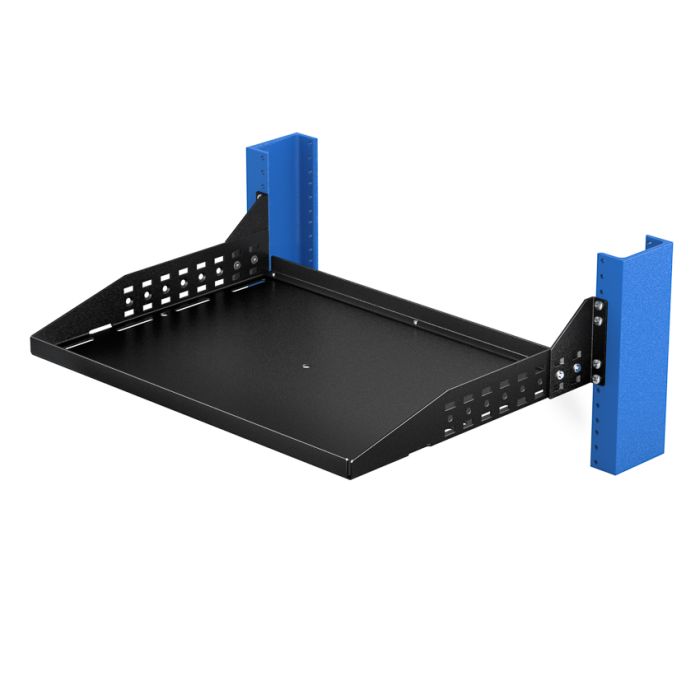

2U 2Post Vented Adjustable Cantilever Shelf 13in Depth
2 Post Shelf Adjustable to Your Needs
- Shelf position adjusted along the mounting bracket
- Equipment stops easily adjusted or removed
- Vented or solid shelf options
- Can be mounted upside down
Compatible With 2 Post Racks
- Weight Capacity: 150 lbs (68 kgs)
- Shelf Depth: 13" (330 mm)
- Compatible with 3" to 8" uprights
- Compatible with round, threaded, or square rack holes
See "Additional Information" for Technical Specifications.
RackSolutions 13" Configurable 2 Post Rack Shelf is designed to be able to be configured to your needs. With a depth of 13 inches (330 mm) and a weight capacity of 150 lbs (68 kgs), the shelf can support a wide variety of networking, AV, and telecommunications equipment. The shelf's position can be adjusted along the mounting mounting bracket in 1" increments. Equipment stops, also called flanges, can be also be re-positioned on the shelf or removed entirely if desired. The shelf mounts the rack cantilever, meaning that it attaches to the rack at only one side of the shelf. Slots for equipment straps along the side of the shelf can be used for strapping down and securing equipment mounted on the shelf. Our 2Post relay rack shelves are designed to fit standard EIA 19" (opens in a new tab) racks.
Shelf Adjustments
RackSolutions 2U Configurable Cantilever 2 Post Rack Shelf is designed to be able to be configured to your needs
Shelf Features
RackSolutions 2Post relay rack shelves are designed to fit standard EIA 19" racks.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | United States |
| Included Hardware | 2USHL-020HALF-13V | 2USHL-020HALF-13S
|
| Synnex Part Number | 2USHL-020HALF-13S - 5068208 2USHL-020HALF-13V - 5068199 |
| Ingram Part Number | 2USHL-020HALF-13S - E93432 2USHL-020HALF-13V - E93431 |
| Assembly Notes | Phillips head screwdriver required |
| Equipment Depth | The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement. |
| Shelf Type | Solid , Vented |
| Rack Type | 2 Post |
| Fixed/Sliding | Fixed |
| Shelf Surface Area | 13" x 17.375" (330 x 441 mm) |
| Finish | Black, textured powder coat |
| Mounting Depth Range | These 2Post rack shelves are cantilever mounted and will install into any 2Post rack as well as any 4Post server rack |
| Weight Capacity | 150 lbs (68 kgs) |
| Rack Units | 2U |
| Tool-less/Standard | Standard |
| Overall Installation Depth | 13" (330 mm) |
| Material | 16 GA Steel |
| Tech Notes | These 2Post rack shelves can be installed in a 4Post server rack |
