1UBRK-270 - 1U Adapter Brackets

 1UBRK-270 - 1U Adapter Brackets

Hover to View, Click to Zoom

  • 1UBRK-059 - 1U Adapter Brackets
  • 1UBRK-200 - 1U Adapter Brackets
  • 1UBRK-290 - 1U Adapter Brackets
  • 1UBRK-350 - 1U Adapter Brackets

1U Adapter Brackets

Use for mounting Tool-less Rails

  • 5 depths available
  • Converts round holes to square holes
  • Dell, HP, IBM compatible
  • Brackets are sold as a pair
Requires 3/8" Screws- Hardware not included
Product Name P/N: Availability Price Qty
1U Bracket, 2-bends, 0.59" wide-2 Pack 1UBRK-059-2PK
In Stock
£15.00
Hardware not included
Product Name P/N: Availability Price Qty
1U Bracket , 4-bends, 2.00" wide- 2 Pack 1UBRK-200-2PK
In Stock
£15.00
1U Bracket, 4-bends, 2.70" wide-2 Pack 1UBRK-270-2PK
In Stock
£15.00
1U Bracket, 2-bends, 2.90" wide- 2 Pack 1UBRK-290-2PK
Call to Order
£15.00

1U Bracket, 4-bends, 3.50" wide- 2 Pack 1UBRK-350-2PK
In Stock
£15.00

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
Rack Hardware
In Stock
Starting at:
£3.50

Features

Video-Different uses of the Adapter Brackets

1U Adapter Brackets - Technical Specifications

Server Compatibility
  • Compatible with most Dell, HP and IBM rails
  •
  • Dell PowerEdge server compatibility: Dell PowerEdge 1750, Dell PowerEdge 1650 with standard Dell RapidRail slides, Dell 1U KMM tray (310-4227) with Dell RapidRail slides
  • Rack Type: 4Post cabinets (Chatsworth MegaFrame, Great Plains, Shark and most other racks), Double 2Post frame (Homaco, APC and others). Recommended double relay rack spacing.
  • Rack mounting holes: Round holes or 12-24 threaded holes
  • Rack upright depth: 22.7" - 29.6" (measured from front to back of the rack's mounting surface)
  • Notes
    1. This kit works with Dell's rack mount slides.

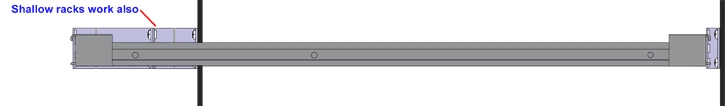

    2. This kit can extend or reduce the mounting depth of 4post square hole racks.
    3. This kit is not designed for APC Netshelter, IBM, and APEX square hole racks.

    Please refer to our RapidRail modification service for these racks.
Rack Type 4Post
Bracket Dimensions

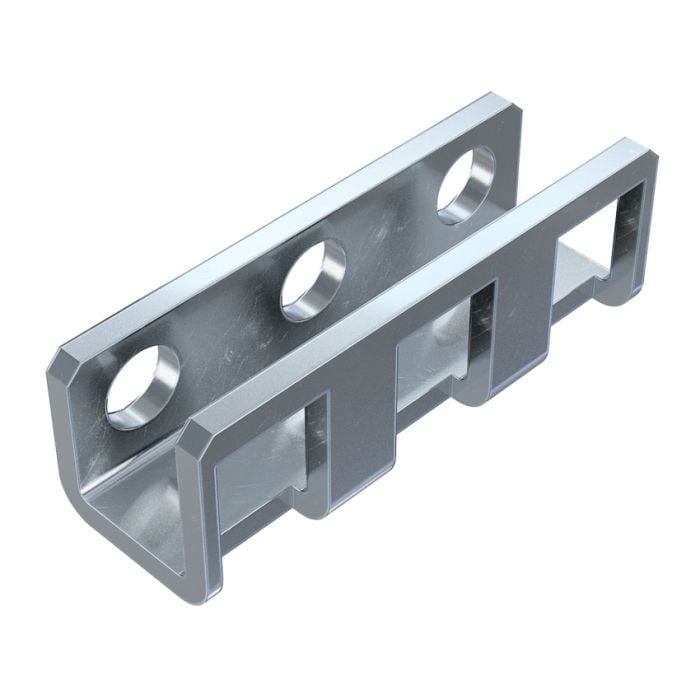

  • Part Number 1UBRK-059 1U tall x 0.59" deep. Round to square holes. 2 bends
  • Part Number 1UBRK-200 1U tall x 2.00" deep. Round to square holes. 4 bends

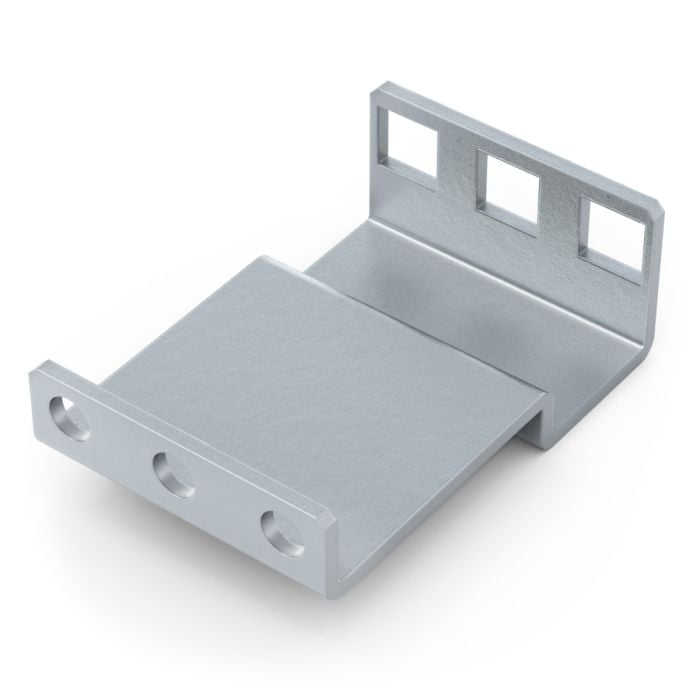

  • Part Number 1UBRK-270 1U tall x 2.70" deep. Round to square holes. 4 bends
  • Part Number 1UBRK-290 1U tall x 2.90" deep. Round to square holes. 2 bends
  • Part Number 1UBRK-350 1U tall x 3.50" deep. Round to square holes. 4 bends
Rack Units 1U tall (1.75", 44.45 mm)
Hole Type EIA 3/8" square holes (9.5 mm), round holes, 12-24 threaded holes
Rack Post Shape 1UBRK-059: C Shape
1UBRK-200: ? Shape
1UBRK-270: ? Shape
1UBRK-290: C Shape
1UBRK-350: ? Shape
Finish Zinc plated
Assembly Notes Phillips head screwdriver required
Requires screws that are 3/8 in length.
Tech Notes
  • 4Post racks: V 4 Post 19" rack (cabinet racks and open frame racks)
  • Rack width: V Standard 19" racks. Meets EIA-310 requirements. See the reducer brackets for 23" and 24" racks.
  • Square hole racks: Compatible with the industry standard 3/8" square hole racks. Rack manufacturers including Dell, HP-Compaq, IBM, APC, etc. Cage nuts are required for square hole mounting.
  • Round hole racks: Compatible with all standard round (non-threaded) holes. Rack manufacturers including HP and IBM.
  • Threaded racks: Compatible with all standard threads including 10-32, 12-24 and metric M6. Rack manufacturers including Chatsworth, Shark, Great Lakes, Middle Atlantic, Bud, etc.
