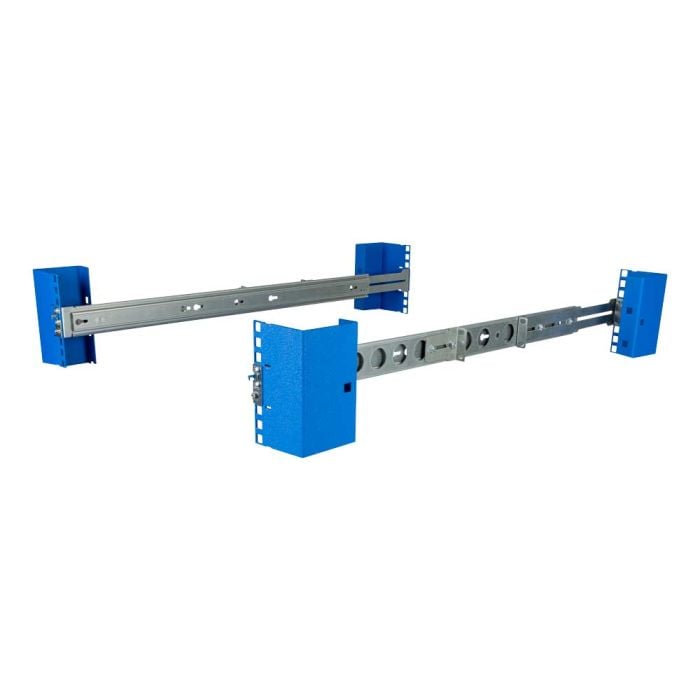

1U Cobra 155-A Dry Slide Rail for Dell
Designed for shallow depth racks
- Inner rails are shortened so they don’t stick out of shallow depth racks
- Works with square, round, and threaded holes
- Dry slide rails offer greater longevity
- Works with all EIA 19” standard racks
- Learn about the Cobra product line
Mount in a 2 or 4 post rack with any hole type
- Center mount on 2 post racks
- Supports L, C, and ? rack upright shapes
- Mounting depth:
- 4 Post: 20” - 30" (596mm - 762mm)
- 2 Post: 3” - 6” (76.2mm - 152.4mm)
Compatible with these servers:
- Dell PowerEdge R260
- Dell PowerEdge R360
- Dell PowerEdge R250
- View entire compatibility list
The Dell PowerEdge R210 and R240 are known as “short depth servers” and we designed a rail to capitalize on that fact. Dry slide rails designed for full length servers typically have excess inner rail in the back. Since the R210 and R240 are shorter servers, the inner rails of this kit can be shortened so that they will fit within low depth racks.
Unlike OEM Dell rails, these will work with square, round or threaded hole racks out of the box. It also can be converted between 2 post and 4 post and four post mounting orientations. The rail is made from 18 Ga galvanized steel for long lasting, high quality experience.
Inner rail protrudes on the 122-2579 (Cobra 79)

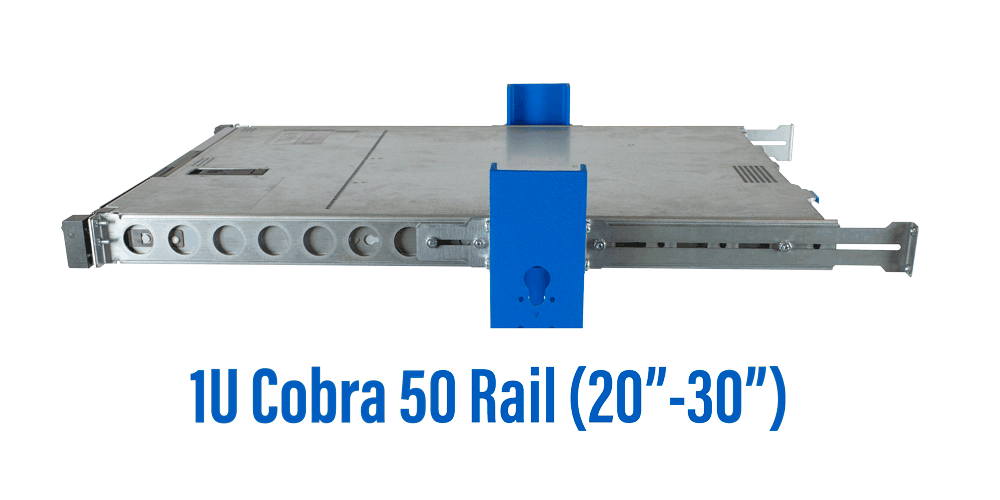

Inner rail stays within outer rail on the 122-7650 (Cobra 50)
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 3.850000 |
| Country of Manufacture | United States |
| Included Hardware |
Kit Contents:
Rear Bracket Hardware:
Mounting Hardware:
Rack Mount 8x:
|
| Compatibility | Dell |
| Compatibility | Dell PowerEdge 16th Generation Servers PowerEdge R260 PowerEdge R360 Dell PowerEdge 15th Generation Servers PowerEdge R250 PowerEdge R350 Dell PowerEdge 14th Generation Servers PowerEdge R240 PowerEdge R340 Dell PowerEdge 13th Generation Servers PowerEdge R230 PowerEdge R330 Dell PowerEdge 12th Generation Servers PowerEdge R220 PowerEdge R320 PowerEdge R420 Dell PowerEdge 11th Generation Servers PowerEdge R210 PowerEdge R210 II PowerEdge R310 PowerEdge R415 PowerEdge R410 Dell PowerVault PowerEdge NX300 PowerEdge NX400 PowerEdge NX440 |
| Dell Part Number | 122-7650- AB490271 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Ingram Part Number | 122-7650 - 8UD720 |
| Rail OEM | Dell |
| Fixed/Sliding | Sliding |
| Tool-less/Standard | Standard |
| Assembly Notes | Phillips head screwdriver required |
| Overall Installation Depth | 20" - 30" (508 - 762mm) |
| Rail Type | 2 Post, 4 Post |
| Mounting Depth Range | 4 Post: 20” - 30" (508 - 762 mm) 2 Post: 3” - 6" (76.2 - 152.4 mm) |
| Finish | Galvanized |
| Material Type | Galvanized 18 Gauge Steel |
| Rack Units | 1U |
| Rack Type | 2 Post , 4 Post |
| Hole Type | Compatible with round, square and threaded racks. |
