16 and 8 Port 1U KVM Switch

In stock
Grouped product items
Product Name SKU Qty
1U KVM 8 Port
£1,110.00 £925.00
180-5551
1U KVM 16 Port
£1,380.00 £1,150.00
180-5552

Rack Mountable KVM Switch:

  • 19" rack mountable 1U KVM switch
  • LCD 17” Monitor unit control center
  • Choose from the 8 port 180-5551 or 16 port 180-5552 KVM
  • Includes mouse, monitor, and keyboard
  • Arranged on sliding rails
  • Linux, Sun, and Window systems are compatible

Mounts in 19" racks

  • Buttons to switch computers quickly
  • Broadcasting mode for multi-tasking
  • Beneficial security login
  • Rear port for external connections
  • Steel designed

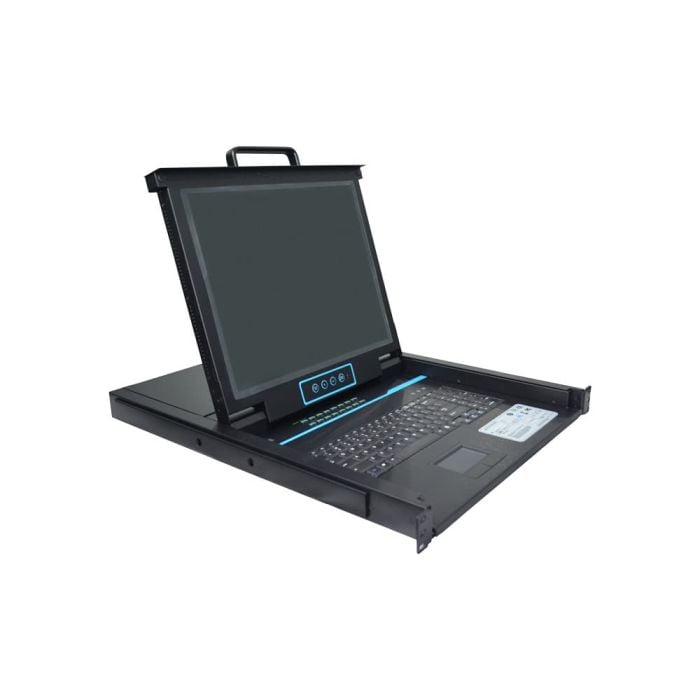

This RackSolutions 1U KVM is available in 8 and 16 port options. This features a LCD 17 inch HD monitor which includes our mouse and keyboard. The monitor’s switches allow the option to alternate between computers without powering off the KVM, saving time. The 8 port has a power consumption of 17 watts and the 16 port with 23 watts. In addition, it has a port on the back to assist the KVM with an external connection. This product works with PCs including PS/2 keyboards, USB, and mouse connectors. The control center requires logins to maintain strict security, and includes a broadcast mode which allows selected computers to be working concurrently. This KVM unit also allows 8 or 16 computers to be controlled directly, but by adding up to 31 cascading switches you can maintain 256 or 512 computers as well. The RackSolutions 1U KVM unit is constructed of steel and is arranged on sliding rails which rack mounts to 4 post server racks.

More Information
Visbility Bypass Enabled Yes
Mounting Depth Range 580mm (23")-900mm (35")
Rack Type 4 Post Rack
Tech Notes Product Dimension (W x D x H): 448mm x 581mm x 42.5mm
Net Weight: 29.32148 pounds
Input power: 100V~ 240Vac, 50~60Hz, <1.5A
Hole Type Compatible with square, round and threaded holes
Included Hardware 1 - 1U KVM Port
8 - 1.8m USB KVM Cable
1 - Power Cord
2 - Mounting Rails
1 - User Manual
Rail Type Sliding
Fixed/Sliding Sliding
Monitor Specs Display Type: SXGA TFT
Display size: 17"
Resolution: 1280x1024@60Hz
Display color: 16.7 M
Brightness: 250cd/m^2 (T y p)
Contrast ratio: 1000: 1 (T y p)
Pixel pitch (mm): 0.264(H) x 0.264(W)
Keyboard Specs 99 keys (82 main keys, plus 17 small number pad keys)
Finish Black Finish
Monitor Width 17"
RoHS Compliant No
TAA Compliant No
