1U Sliding Shelf Rail Kit for Dell Pro Max Tower T2 Desktop
Installs In Any 4 Post Server Rack
- Compatible with the Dell Pro Max Tower T2 Desktop
- Secures PC for safe transportation or stationary use
- Works with square, round, and threaded holes
- Mounting depth: 10” - 31.50" (254 - 800mm)
- Includes cabling crossbar (installation is optional)
- Made in the USA
Rackmounts Dell Pro Max Tower T2 Desktop
- PC chassis is secured to the rack shelf
- Uses 5U of rack space once chassis is mounted
- Rack shelf is dry slide type
- Rails are static, shelf slides on top of rail flanges
- Thumbscrews allow the shelf to be secured to the front of the rack
- Made for IT environments that require frequent relocation
The RackSolutions 1U Sliding Shelf Rail Kit is specifically designed for the Dell Pro Max Tower T2 Desktop. This rail kit mounts in any EIA-30, 19” 4 post server rack with square, round, or threaded holes. The Dell Pro Max Tower T2 Desktop is secured to the rack shelf with a front and rear bracket, allowing the shelf to dry slide on top of the metal flanges found on both sides of the mounting rails. With this sliding shelf rail kit, it prevents equipment from moving or falling during transit, reducing the risk of damages or accidents.
Additionally, it features a mounting depth of 10 - 31.50" (254 - 800mm) and includes a cabling crossbar that is optional for installation. The thumbscrews are used to secure the shelf to the front of the rack. For square hole racks, cage nuts are required for installation.
PC Mounting Cable Management
To keep the Dell Pro Max Tower T2 Desktop’s power cable in place, the sliding shelf features obround cutouts for cabling.
Transport Mount for Dell Pro Max Tower T2
For situations that require transportation, the 1U sliding shelf rail provides a PC mounting solution. The desktop is firmly clamped down and positioned into place on the shelf. This rail kit ensures that your desktop used in transportation scenarios is safe, accessible, and protected during movement. This is useful for relocating equipment between rooms or long-distance transportation.

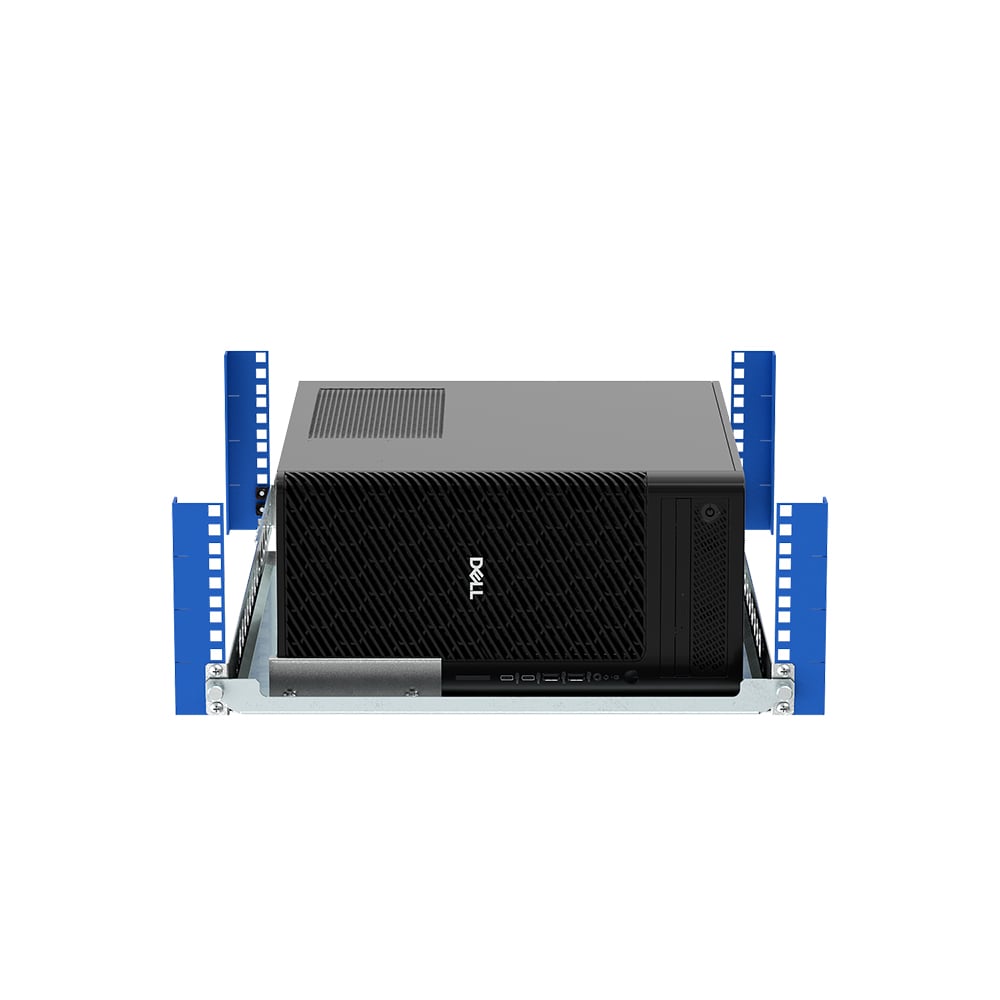

Dell Pro Max Compatibility
This sliding shelf rail kit is only compatible with the Dell Pro Max Tower T2 Desktop.
Industry Applications
Built for versatility, this rail kit is engineered for a range of use cases, including IT relocations, equipment staging areas, mobile deployments, or high-traffic equipment rooms.
IT Relocations - Ensures easy setup and smooth transfer of equipment between different locations.
Equipment Staging Areas - Simplifies equipment setup and reconfiguration for pre-deployment environments.
Mobile Deployments - Provides stable mounting for reliable performance during transit and deployment operations.
High-Traffic Equipment Rooms - Protects and secures PC in busy IT environments with frequent access and equipment handling.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 14.600000 | Country of Manufacture | United States | OEM Compatibility | Dell | Product Line | Pro | Form Factor | Tower | U Height | 1U | Rack Type | 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Fixed/Sliding | Sliding | Weight Capacity | 30 - 100 lbs | Finish | Clear Zinc | Material | Cold-Rolled Steel |
|---|
Data Sheet
1U Sliding Shelf Rail Kit for Dell Pro Max Tower T2 Desktop (112-8178)
Open PDF
Installation Instructions
1U Sliding Shelf Rail Kit for Dell Pro Max Tower T2 Desktop (112-8178)
Open PDF
Dimensional Drawings
1U Sliding Shelf Rail Kit for Dell Pro Max Tower T2 Desktop (112-8178)
Open PDFKit Contents:
- (1) Shelf
- (1) Front Bracket
- (1) Rear Bracket
Bracket Hardware:
- (4) #10-32 Keps Nuts
- Pro Max Tower T2
