Vented - 20" Configurable Relay Rack Shelf

 Vented - 20" Configurable Relay Rack Shelf

Hover to View, Click to Zoom

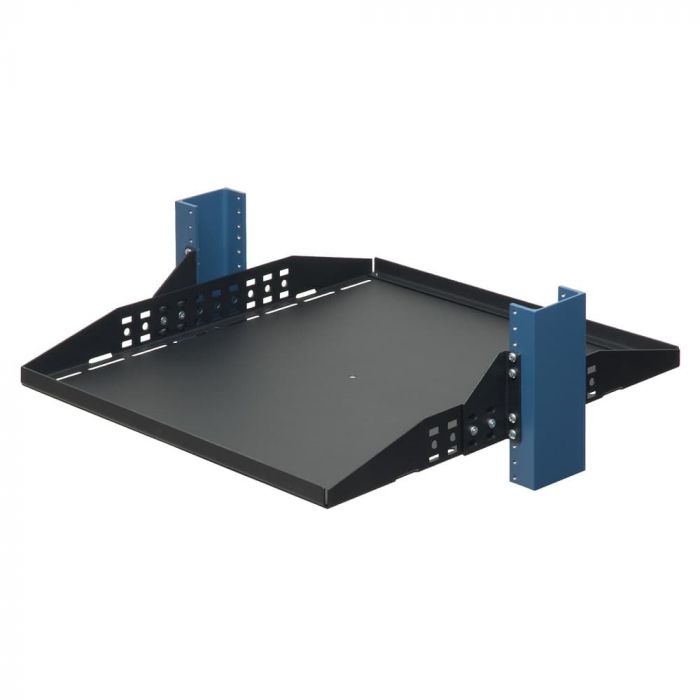

  • Solid - 20" Configurable Relay Rack Shelf

Configurable Relay Rack Shelf - 20"

P/N: 2USHL-020FULL-20

Fits any 2Post relay rack

  • Vented or solid options
  • Rack shelves can mount up-side-down

Cost effective relay rack shelving solution

  • Capacity 150 lbs (68 kgs)

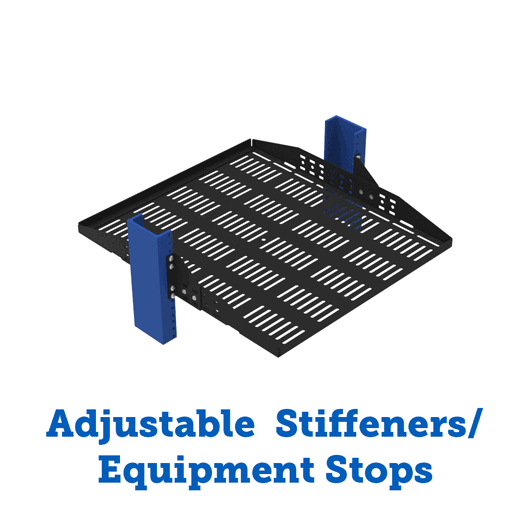

  • Position flanges up or down, or remove them
  • High quality 16 GA steel construction
Product Name P/N: Availability Price Qty
Configurable Relay Rack Shelf - 20" Solid 2USHL-020FULL-20S
In Stock
Configurable Relay Rack Shelf - 20" Vented 2USHL-020FULL-20V
In Stock


The relay rack shelf is compatible with any 19" EIA standard relay rack. The relay rack shelf has a 150 lb (68 kgs) equipment capacity and will support a wide variety of electronic equipment. Electronic devices up to 20" deep can be supported on a relay rack shelf. Transport and seismic options are available for a relay rack shelf if the installation requires.

Configurable Relay Rack Shelf - 20" - Technical Specifications

Rack Type EIA 19" standard relay rack
Rack Type 2Post
Weight Capacity 150 lbs (68 kgs)
Equipment Depth The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement.
Mounting Depth Range These relay rack shelves are cantilever mounted and will install into any relay rack as well as any 4Post server rack
Overall Installation Depth 20" (508 mm)

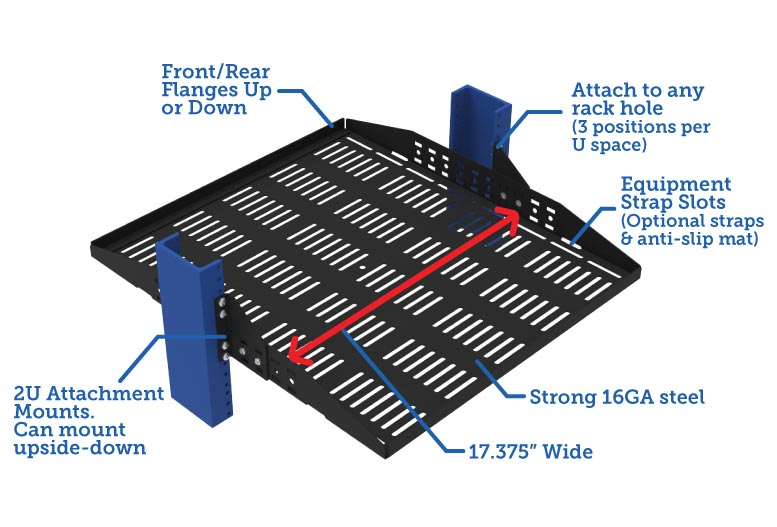

Shelf Surface Area 20" x 17.375" (508 mm x 441 mm)
Shelf Type Vented or Solid
Finish Black, textured powder coat
Included Hardware 10-32 & 12-24 pan head screws
Hole Type 10-32 or 12-24 threaded holes
Square hole relay racks will require cage nuts
Assembly Notes Phillips head screwdriver required
Tech Notes The relay rack shelf can be installed in a 4Post server rack
Shelf depth is measured from front to rear excluding flanges
