RackSolutions' Adapter Kits provide a solution to the common problems associated with installing Rackmount Servers into a variety of different Server Racks. These Adapter Kits allow for considerable adjustment in the installation depth of the Server Rack. If the Server Rack is too deep or too shallow, these Adapter Kits will solve the problem. If your Server Rack has Round Holes and your Slide Rails require Square Holes these kits will convert Round Holes to Square Holes.
Extension for shallow RackFor shallow depth racks, our brackets can be used for rails that extend out past the uprights.
Extension for Deep RailsIf the rails that were supplied with your server are to long, the 1U adapter bracket allows the extra space needed to mount the rails.
What's the mounting depth?First, measure the mounting depth of your server rack, to determine the size of bracket that you will need.
Bracket InstallationInstall brackets (hardware not included) in the space where the rack needs to be extended or reduced.
- Additional Information

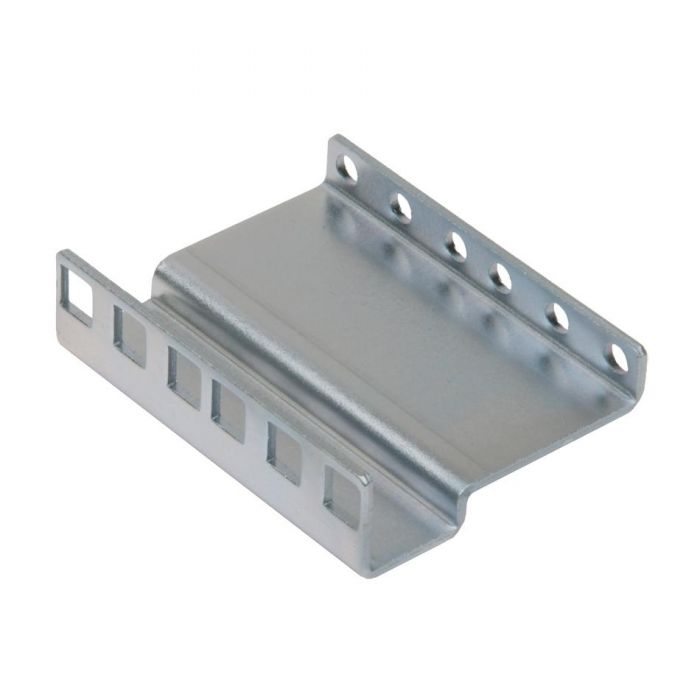

Finish Zinc Plated Rack Units 2U Tall (3.5", 88.9mm) Tech Notes This kit has an assortment of brackets that can be configured in multiple ways to solve most common installation issues. Included Hardware 12-24 & 10-32 Cage Nuts & Screws Assembly Notes Phillips Head Screwdriver Required RoHS Compliant Yes Hole Type EIA 3/8" Square Holes (9.5mm) Rack Post Shape 2UBRK-059: C Shape
2UBRK-200: ? Shape
2UBRK-270: ? Shape
2UBRK-290: C Shape
2UBRK-350: ? Shape What are L, C, Z and ? rack upright shapes?
Bracket Dimensions 2UBRK-059: 0.59" (15mm)
2UBRK-200: 2.00" (50.8mm)
2UBRK-270: 2.70" (68.6mm)
2UBRK-290: 2.90" (73.7mm)
2UBRK-350: 3.50" (88.9mm)
TAA Compliant Yes
