10 foot tall rack!

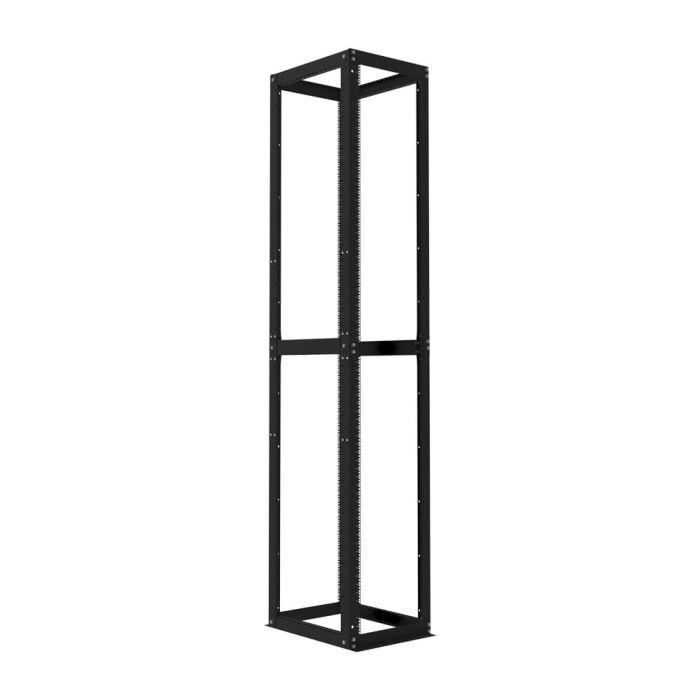

70U Open Frame Server Rack

 70U Open Frame Server Rack

Hover to View, Click to Zoom

70U Open Frame Rack

P/N: Rack Model 111

Ideal for data centers

  • Uses less floor space than cabinets
  • 24" width is perfect for data centers
  • Flush floor mount spreads load on floor tiles
  • Base may be bolted to floor for stability
  • Ships UPS and is unassembled

Dell, HP, IBM, Cisco compatible*

  • Optimizes cooling
  • Makes wiring easy
  • Static load capacity of 4000 lb
  • Streamlined support for power strips, PDUs
  • Quick and easy assembly
  • Alternate racks

    *Note: 28.875" depth only
Product Name P/N: Availability Price Qty
70U Open Frame Rack 111-5215
Call to Order

You may also be interested in the following product(s)

Product Name P/N: Availability Price Qty
Baying Kit for Open Frame Rack 100-1319
In Stock

Data Center Rack

The 70U Open Frame Rack is available by phone. Please call 1-888-903-7225 to order.
The RackSolutions 70U Open Frame Server Rack is possibly the tallest server rack in the world that meets all EIA standards. The 28.875" server rack depth is compatible with all the major OEM's such as Dell, HP, IBM and Cisco. Compatible with overhead cable trays from B-Line and other manufacturers. Read more about Open Frame Racks.

RackSolutions® is proud to be a leading provider of server racks and equipment for SoftLayer®.
See video of RackSolutions' racks being installed in one of SoftLayer's data centers.
See one of SoftLayer's largest data centers featured on its youtube channel.

Rack Top Options

Close out the top of this rack with one of four Rack Top options. Choose from black or galvanized Rack Tops with or without cable pass-throughs. Hardware included.

Power Distribution: Choose from 8, 16 or 24 Outlets

P/N: PSV-F24-15A-S (24 Outlet)

P/N: PSV-F16-15A-R (16 Outlet)

P/N: PSV-F8-15A-Q (8 Outlet)

Installation Examples

Here’s a great example of three, open frame racks bayed together in a server room.

Note: Above is an example of two, 50U, Open Frame Server Racks bayed together with two, 55U Server Racks in a data center.

Customer Feedback

“RackSolutions’ quick turnaround time on racks and custom components has helped to support SoftLayer’s exponential growth at multiple domestic and international sites.” - Joshua Rushe, V.P. of Operations at SoftLayer.

70U Open Frame Rack - Technical Specifications

Finish Black, textured powder coat
Assembly Notes 3/4" wrench required
Assembly time is approximately 15 minutes
Tech Notes Hole Type: EIA 3/8" square hole
Rack Post: J-shape

Rack Height: 122.63" (3124 mm)
Rack Mount Depths: 28.875" (733 mm)
Compatible Accessories Baying Kit for Open Frame Rack -- P/N: 100-1319
Top for Rack 111 with cable pass-throughs (black) -- P/N: 113-1832
