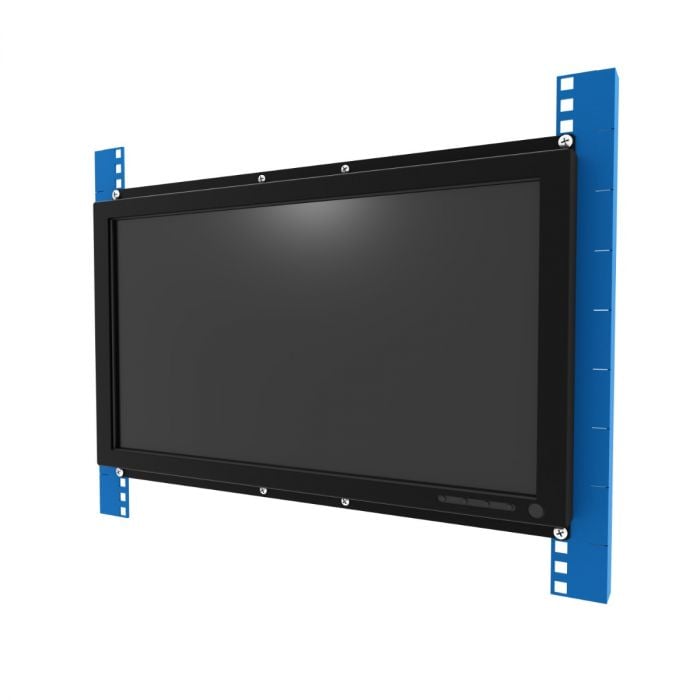

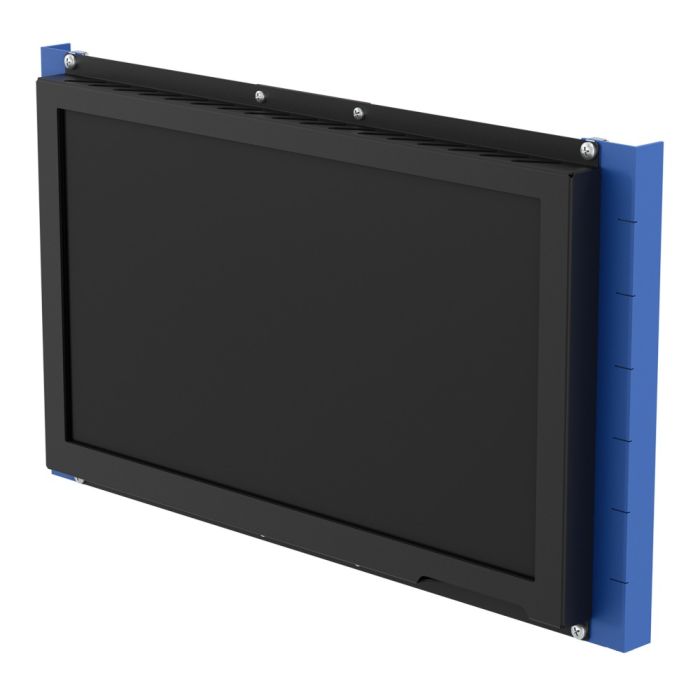

7U Monitor Rackmount with Monitor
£357.00
£297.50
In stock
SKU
163-8428
Easily mount flat panel monitor for video output
- Dell E2020H flat panel monitor included
- VGA Input: 1600 x 900 max screen resolution
- Simply install monitor to rear VESA bracket
- Internal power supply
- Standard KVM switches supported
Compatible with EIA 19” standard racks

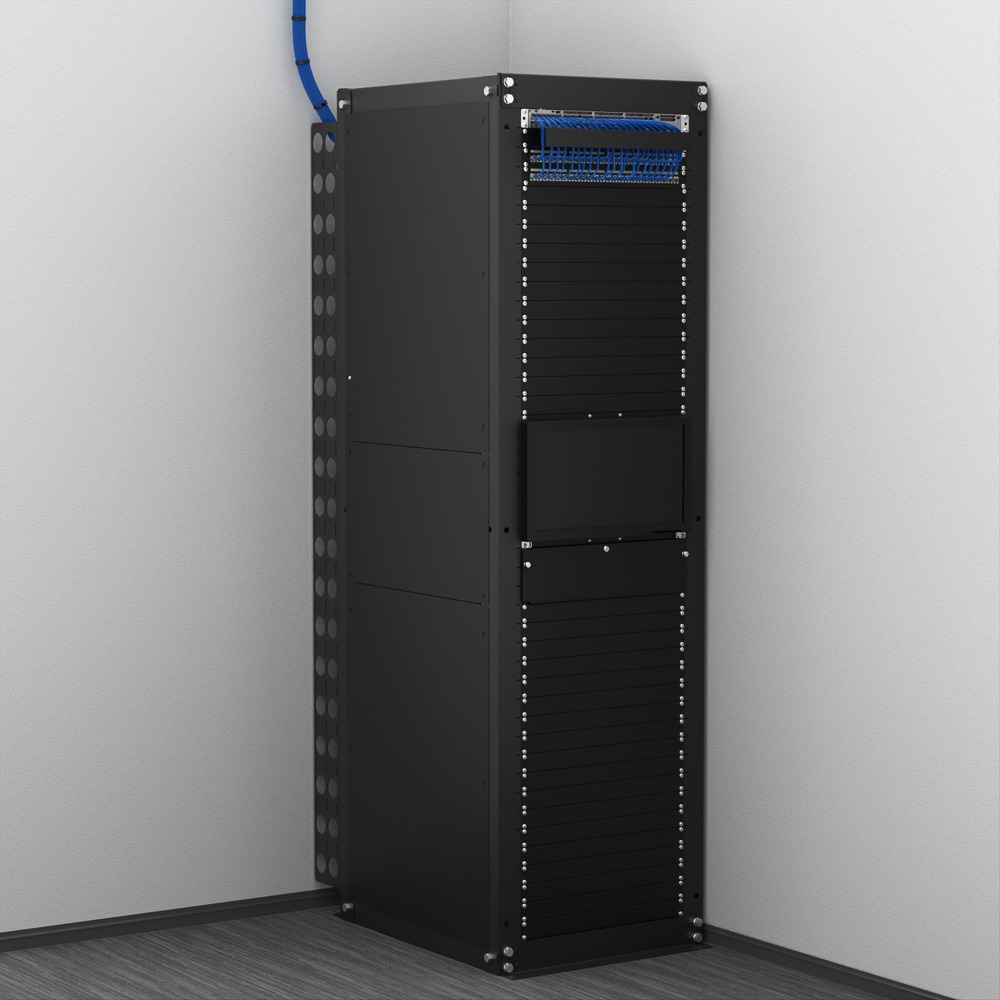

- Install in 4 Post and 2 Post racks
- Fits square, round, and threaded holes

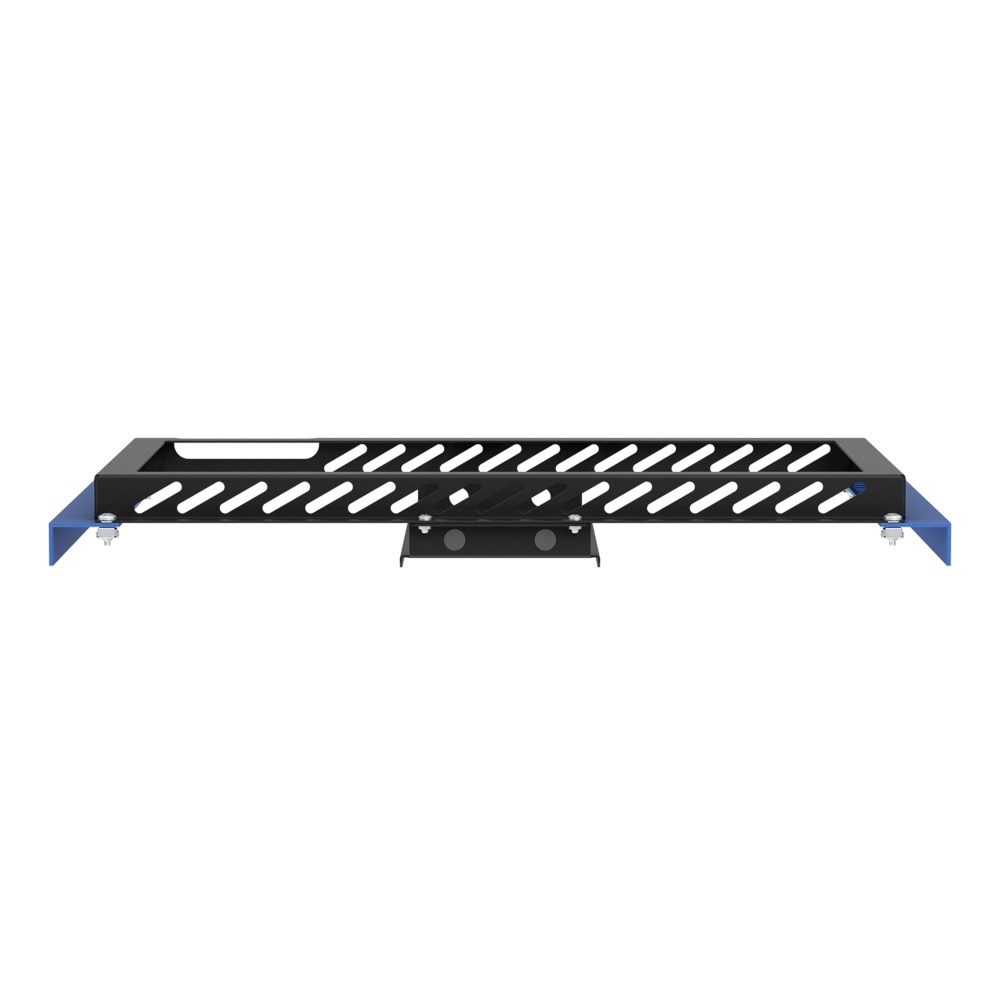

- Faceplate prevents bypass airflow
- Monitor protrudes past the uprights by 1.086"
Designed to mount the Dell E2020H 20’’ flat panel, the RackSolutions 7U rackmount monitor kit is compatible with any standard EIA 19” server rack. Our rackmount monitor kit features a professional and seamless look that is engineered to keep your monitor safely mounted on a 4 post or 2 post rack. The 3-piece kit includes a monitor, rear bracket, and faceplate. The faceplate prevents any bypass airflow by covering all sides of the monitor. You can also pair our rackmount keyboard with the monitor for a complete console solution.
For more information on VESA Mounting Standards and what VESA stands for, visit VESA Mounting Standards Explained.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | No | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 13.800000 | Country of Manufacture | United States | U Height | 4U - 9U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole |
|---|
Kit Contents:
- (1) Dell E2020H Monitor
- (1) Mounting Bracket
- (1) 7U Face Plate
Assembly Hardware:
- (4) M4 x .7 x 25mm Pan Head Screw
- (4) .194 x .5 x .5 Spacer
- (4) 8-32 x .312 Pan Head Screw
Mounting Hardware:
- (5) 10-32 x .5 Pilot Point Pan Head Screw
- (5) 12-24 x .5 Pilot Point Pan Head Screw
- (5) 12-24 Square Nut
- (5) 12-24 Cage Nut
