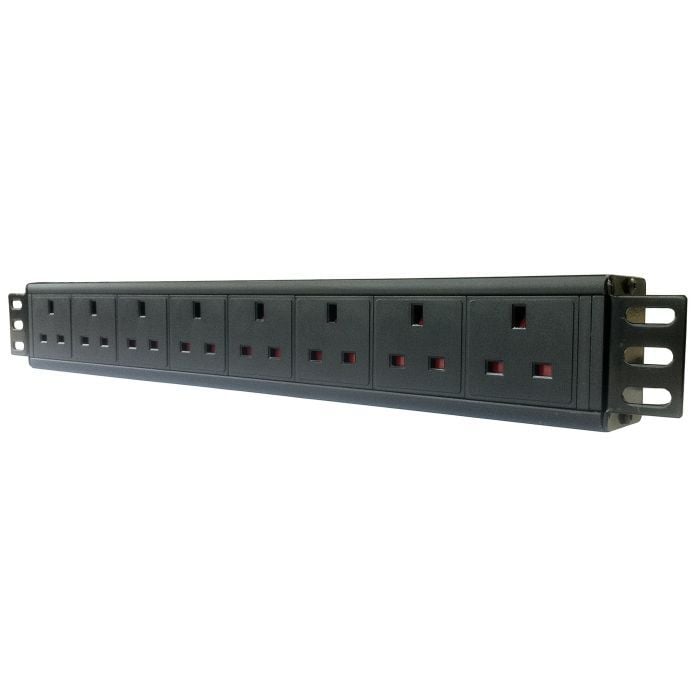

8 Way, 13 Amp, Horizontal Rack Mount Power Strips

In stock
8 Way Power Strip Options
Grouped product items
Product Name SKU Qty
8 Way, Horizontal PDU with NO SWITCH terminating in an 16A plug
£54.00 £45.00
PDU-8W-H-16A
8 Way, Horizontal PDU
£39.60 £33.00
PDU-8W-H
8 Way, Horizontal PDU terminating in IEC C14 plug
£45.60 £38.00
PDU-8W-H-C14
8 Way, Horizontal PDU terminating in an IEC C20 plug
£45.60 £38.00
PDU-8W-H-C20

Installs in rear of most 19” EIA server racks

  • Covered switch with neon indicator
  • All hardware included
  • Custom requirements available on request

The following options are available for all units

  • Digital ammeter
  • Custom length of lead to terminating plug
  • Terminating commando plugs - 16/32 amp
  • Custom colours

Call for further information on pricing and lead times

Our extensive range of rack mount power strips (PDUs) are available in a variety of sizes and options. They will install in most racks or server cabinets that meet EIA standards. PDUs allow power to be distributed from one easily managed location into the rack. Power may originate from a UPS or directly from the mains. There is a selection of terminating plugs on our power strips, as well as options for surge protection and digital ammeters. For specific custom requirements, contact our sales team.

More Information
Visbility Bypass Enabled Yes
Cord Length 6 foot
Surge Suppression This intersects the incoming mains feed across the live, neutral and earth terminals. When a large, transient voltage enters the PDU through any one of the terminals, the surge protector attempts to re-route this transient voltage away from the PDU and back down the incoming mains cable. This creates a temporary dead short and moves the brunt of the transient voltage to ground.
Receptacles & Plugs IEC C13 (IEC 60320), IEC C14 Plug, IEC C20 Plug
Number of Outlets 8 Outlets
Powerstrip Orientation Horizontal
Finish Black powder coat
Amperage 13A
Tech Notes Horizontal rackmount power strips mount in the rear space of a server cabinet.
Safety Features Cover over switch; External M5 earth stud; Every unit is individually
tested and given its own unique serial number for full tractability.
RoHS Compliant No
Assembly Notes Fully Assebled
TAA Compliant No
