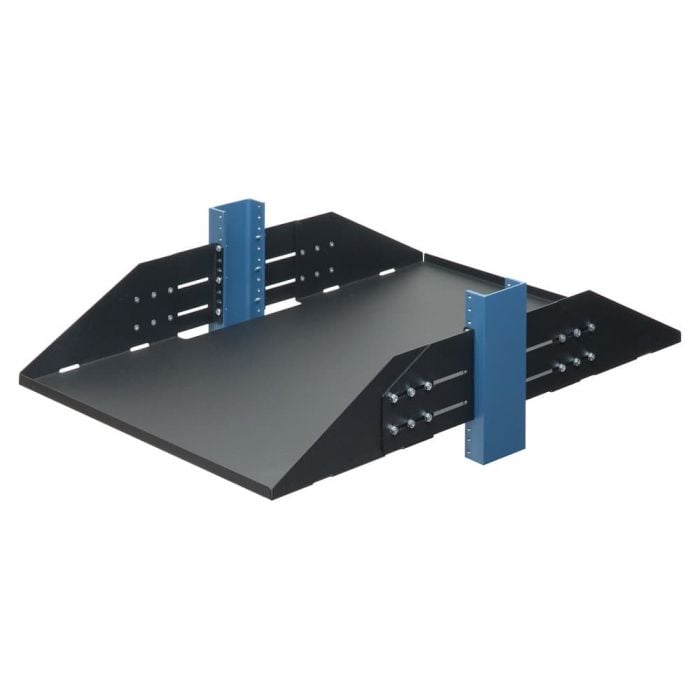

Solid - 29" 2Post Rack Shelf

 Solid - 29" 2Post Rack Shelf

Hover to View, Click to Zoom

  • 107-2237

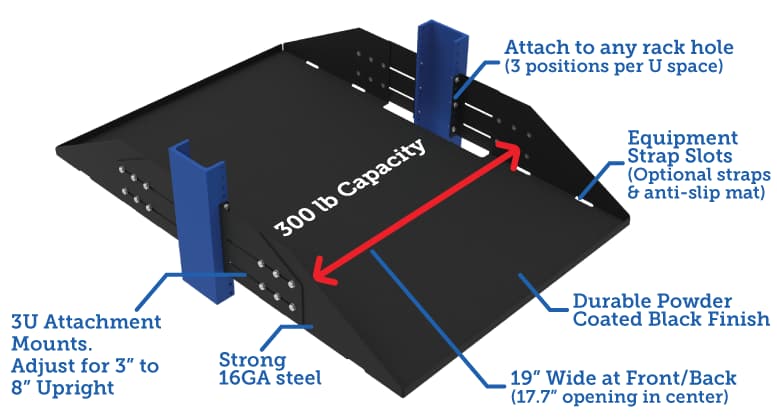

Adjustable, 2 Post Rack Shelf - 29"

P/N: 3USHL-024FULL-29US

Mounts in any 19" 2Post relay rack

  • Compatible with 3" to 8" uprights
  • Works with square, round or threaded holes racks

Fully configurable shelf

  • 300 lb (136 kgs) capacity
  • Supports electronic equipment up to 29" (736 mm) deep
  • Adjustable Depth: 3" - 8" (76 - 203 mm)
  • Shelf can be mounted up-side-down
  • Shelf options include flanges up, down, or up and down
  • Optional straps & anti-slip mats secure equipment
  • Made in the USA from 16 GA steel
Product Name P/N: Availability Price Qty
29" Adjustable Rack Shelf - Flanges Up 3USHL-024FULL-29US
In Stock
£58.00

Features

This Telco Rack Shelf is compatible with most 19" EIA Standard Telco Racks. The 29" Telco Rack Shelf has a 300 lb (136 kgs) equipment capacity and will support a wide variety of electronic equipment. Electronic Devices up to 29" (736 mm) deep can be supported on the Relay Rack Shelf. This 2 Post Rack Shelf comes with flanges up, flanges down or with one flange up and one flange down. See product names below to make the shelf distinction when making your online purchase. Transport and Seismic options are available for this Relay Rack Shelf if the installation requires.

Adjustable, 2 Post Rack Shelf - 29" - Technical Specifications

Rack Type EIA 19" Standard Telco Racks
Rack Type 2Post
Rack Units 3U
Weight Capacity 300lbs (136 kgs)
Equipment Depth Supports equipment up to 29" (736 mm).
The equipment can be deeper than the rack mount shelf as long
as the equipment is installed on the opposite side of the flanges.
The flanges increase load capacity and prevent equipment movement.
Mounting Depth Range These Telco Rack Shelves are compatible with a Telco Rack
with 3" to 8" (76.2 mm to 203 mm) Side Post.
Overall Installation Depth 29" (736.6 mm)
Shelf Surface Area 17.7" x 29" (450 mm x 736.6 mm)
Shelf Type Solid
Finish Black Textured Powdercoat
Included Hardware 10-32 & 12-24 Pan Head Screws
Hole Type 10-32 or 12-24 Threaded Holes
Square Hole Relay Racks will require Cage Nuts
Assembly Notes Phillips Head Screwdriver Required
