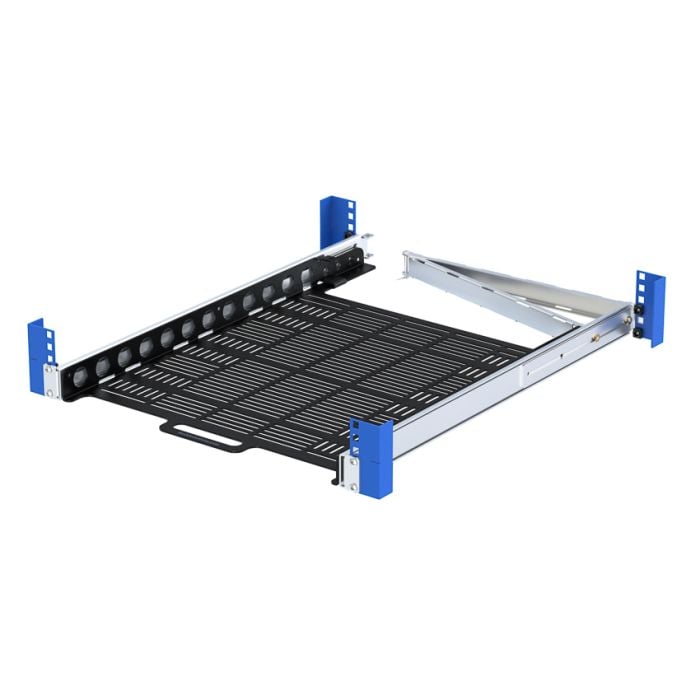

Sliding Computer Shelves

Starting at £108.00 £90.00

In stock
Sliding Computer Shelf With Cma
Grouped product items
Product Name SKU Qty
Sliding Computer Shelf - 24" (with CMA)
£120.00 £100.00
Out of stock
Sliding Computer Shelf Without Cma
Grouped product items
Product Name SKU Qty
Sliding Computer Shelf - 20" (without CMA)
£108.00 £90.00

Sliding Shelf for Desktop Workstations

  • Dry slide rails
  • (CMA) Cable management arm included (1USHL-112 only)
  • Secure PC with included anti-slip mat and strap
  • Shelf extends out 22.5" (572 mm)

Fits Any for 4 Post Racks

  • 45 lbs (21 kgs) capacity
  • Supports items up to 20" (508 mm) deep, 17.7" (450 mm) wide
  • Mounting depth range 11 - 30" (279 - 762 mm)
  • Fits square, round, threaded holes

The RackSolutions Sliding Computer Shelf lets users install a desktop PC on a server rack with a 1U sliding shelf for easy accessibility and storage. The Sliding Computer Shelf is designed for compatibility with most standard 19" EIA standard server racks, making it an ideal solution for those trying to mount PCs close to servers, but needing an efficient, space-saving way to do so. The 17.7" wide shelf stretches to a depth of 20" (508 mm), letting it support most desktop PCs with plenty of room for space. It also comes equipped with a non-slip mat and strap to keep the device in place while the shelf is slid for use. Our Sliding Computer Shelf is a light duty sliding shelf with a weight capacity of 45 lbs (21 kgs). All of this meets with the shelf's 22.5" (572 mm) extension range to create an easy way to service equipment on the shelf. While such advanced features as seismic and transport options are available to meet specialized deployment needs, the shelf does come with a cable management arm by default. This gives users the ability to professionally route cables from the device to maintain airflow and maximize troubleshooting efficiency.

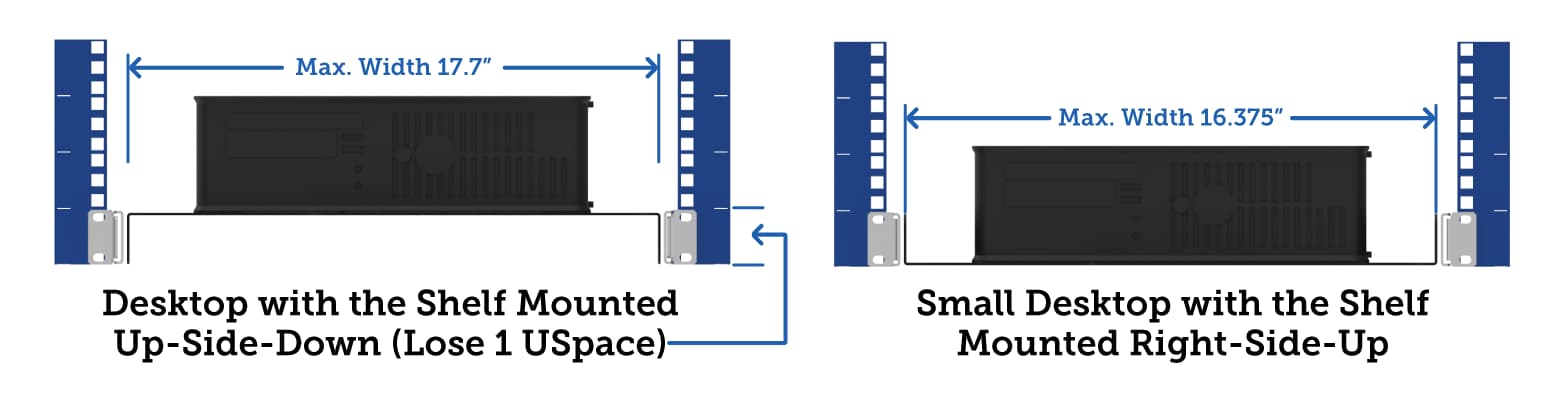

Sliding Computer Shelves Mount Right Side Up or Up Side DownSliding Computer Shelves Mount Right Side Up or Up Side Down

Shelf can mount upside down

Mount up-side-down for maximum width or right-side-up for minimum U space.

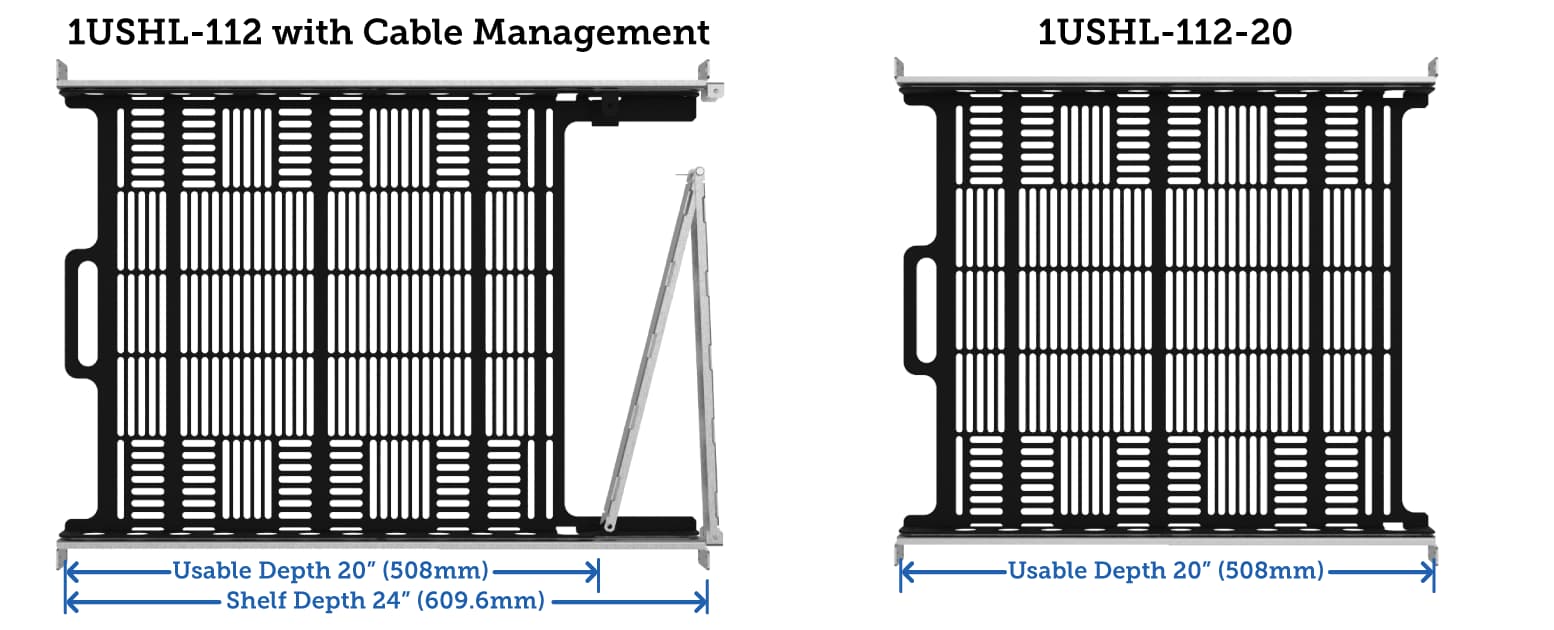

Sliding Computer Shelves Mounting Depth OptionsSliding Computer Shelves Mounting Depth Options

Choose your depth

Choose between the 1USHL-112 and the 1USHL-112-20 based on your needs for equipment mounting.

Sliding Computer Shelves Secured Clevis PinSliding Computer Shelves Secured Clevis Pin

Secured Clevis Pin

Keep your shelf locked in place with our clevis pin. This pin can easily be pulled in and out for easy access to the sliding feature of our shelves, as well as keeping the shelf fixed in place.

Sliding Computer Shelves Easy Equipment AccessSliding Computer Shelves Easy Equipment Access

Easy Equipment Access

Conveniently access your equipment utilizing the handle located at the front of the shelf. This handle gives you the benefit of getting to your non-rack mountable equipment in the fastest way possible.

More Information
Visbility Bypass Enabled Yes
Dell Part Number
112-1534 - A9411918
Assembly Notes Equipment is secured via an anti-slip mat and strap to prevent equipment movement
Equipment Depth Maximum shelf depth 20.0"
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 17.75 x 16.375" (451 x 416 mm) L x W
Finish Black textured powder coat
Mounting Depth Range
  • 1USHL-112:11 - 30" (279 - 762 mm)
  • 1USHL-112-20:11 - 25" (279 - 635 mm)
Included Hardware 10-32 & 12-24 screws
Cage nuts are provided for square hole racks
Anti-slip mat and 72" strap
Locking pin with pull ring (3/16 x 11/16)
Weight Capacity 45 lbs (21 kgs) capacity
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth
  • 1USHL-112:24" (610 mm)
  • 1USHL-112-20:20" (508 mm)
Material 13 Gauge US Steel
Amazon ASIN 1USHL-112 = B00UVKE5PA
112-1534 = B00KYZC0HM
1USHL-112-20 = B00UVKE76C
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes This kit uses a unique "universal racking system" designed to mount in all 4Post rack types.
