Data Center Open Frame 4 Post Server Rack

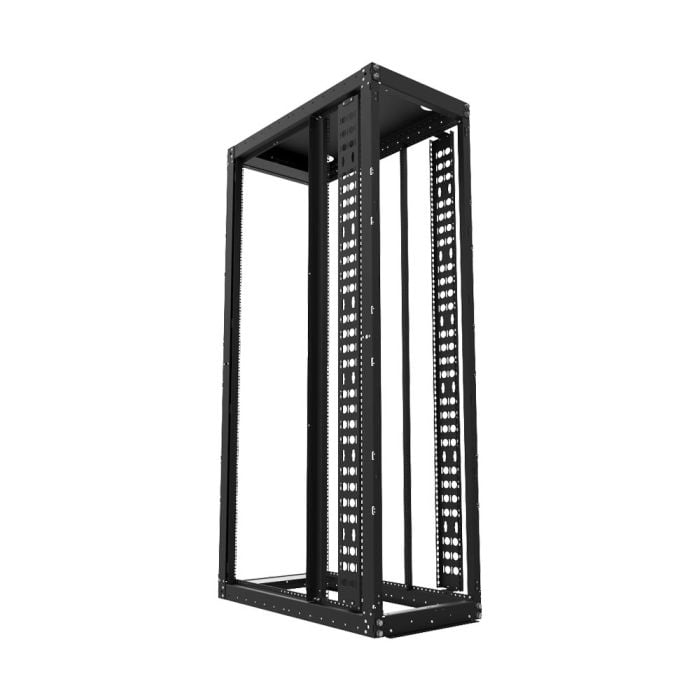

 Data Center Open Frame 4 Post Server Rack

Hover to View, Click to Zoom

  • 2 Vertical Cable Management Bars

Data Center Open Frame Rack

Unique Features:

  • Compatible with any server
  • Rack top with cable pass throughs comes included
  • Casters and levelers not required, saving significant cost
  • Clearly marked rack units on EIA uprights of rack

Features & benefits

  • 48" of physical depth will easily accommodate modern equipment
  • Rack Units: 48U
  • Static load 3000 lbs
  • Compatible with overhead cabling and raised floor cabling systems
  • Robust steel frame
  • Ships fully assembled. Loading dock or lift gate required for delivery.

Call to Order


Price as configured: £0.00


These Data Center Open Frame server racks are compatible with Dell, HP and IBM servers and computers. They are also compatible with most other standard brands as well. These server racks meet the EIA standards for 19" server racks.The open frame server racks come in 48U height server rack, perfect for most any server room or data center. The width of the rack is the standard 24" width used in Data Centers and the 48" depth allows for additional PDUs and cable management. These racks also ship fully assembled and ship on a pallet .

Cable Management Bars

Each of these racks come standard with 2 vertical cable management bars. The 5" width of the cable management bars create enough room to mount 2 APC style PDUs side by side. The design allows for the cable management bars to be recessed for maximum airflow pass through.

Casters & Leveling Feet Kit

The casters have the ability to move while fully populated with 3000 lbs. Once the rack is rolled into place it can then be set on the leveling feet.

Data Center Open Frame Rack - Technical Specifications

Finish Durable, powder coat finish
Assembly Notes Ships fully assembled on a pallet
Tech Notes
  • Static load capacity - 3000 lbs
  • Dimensions: 90.6”H x 24”W x 48”D
  • Includes 2 vertical cable management bars that are the same height as the U space.
  • EIA 19” Rack
  • Square hole mounting posts
  • Multiple cage nut sizes fit in square holes
