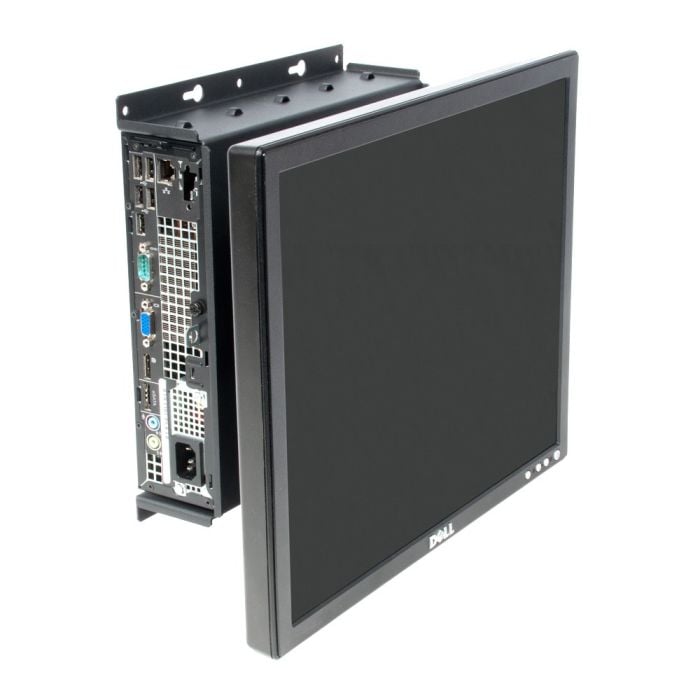

Tilt Wall Mount - shown with monitor and Optiplex 780

 Tilt Wall Mount - shown with monitor and Optiplex 780

Hover to View, Click to Zoom

  • Tilt Wall Mount - shown with monitor and Optiplex 780
  • Tilt Wall Mount - shown with monitor
  • Tilt Wall Mount for Dell Optiplex 780 USFF - rear view
  • Fixed Wall Mount - shown with monitor and Optiplex 780
  • Dell Optiplex 780 USFF, Fixed Wall Mount with monitor
  • Fixed Wall Mount for Dell Optiplex 780 USFF - rear view

Dell Optiplex 780 USFF Wall Mount

Tilt and Fixed monitor options

  • Compatible with most flat panel displays
  • 75 mm and 100 mm VESA hole pattern
  • Wallmount bracket supports up to 50 lbs
  • All required mounting hardware is included
  • Optional keyboard wall mount is also available
Product Name P/N: Availability Price Qty
Dell Optiplex 780 USFF Wall Mount - Fixed Monitor 104-1965
Built to Order
£35.00

Dell Optiplex 780 USFF Wall Mount - Tilt Monitor 104-1952
In Stock
£40.00

Features

The Dell Optiplex 780 USFF Wall Mount is compatible with most flat panel displays. There are two options when choosing a Dell Optiplex 780 USFF Wall Mount, a version that allows your monitor to tilt and one that stays fixed. All required mounting hardware is included with the Dell Optiplex 780 USFF Wall Mount.

Dell Optiplex 780 USFF Wall Mount - Technical Specifications

Dimensions Tilt Monitor Outside Dimensions P/N: 104-1952
H x W x D = 11.11" (282 mm) x 9.84" (250 mm) x 3.94" (100 mm)

Fixed Monitor Outside Dimensions P/N: 104-1965
H x W x D = 11.11" (282 mm) x 9.84" (250 mm) x 2.90" (73 mm)
Finish Black, textured powder finish
Included Hardware
  • Monitor Hardware:
  • (8) Nylon spacers
  • (5) M4 x 10 mm pan head screws
  • (5) M4 x 18 mm pan head screws
  • (5) M4 x 25 mm pan head screws

  • Wall Mount Hardware:
  • (4) pan head screws
  • (4) pan anchors

  • Pivot Hardware:
  • (5) 8-32 flat head screws
Assembly Notes Requires Phillips screwdriver
Compatible Accessories Dell Optiplex 780 USFF
Dell Optiplex 790 USFF
Dell Optiplex 990 USFF
Dell Optiplex 3010 USFF
Dell Optiplex 3020 USFF
Dell Optiplex 7010 USFF
Dell Optiplex 7020 USFF
Dell Optiplex 9010 USFF
Dell Optiplex 9020 USFF
