4Post installation - Dell R410, R310, NX300 Fixed Rails

 4Post installation - Dell R410, R310, NX300 Fixed Rails

Hover to View, Click to Zoom

  • Front view with server - 1U Fixed Rail for Dell PowerEdge R410
  • 2Post center mount - Dell R410, R310, NX300 Fixed Rails
  • 2Post center mount with server - Dell R410, R310, NX300 Rails
  • 2Post flush mount - Dell R410, R310, R210, Fixed Rails
  • 2Post flush mount with server - Dell R410, R310, NX300 Rails

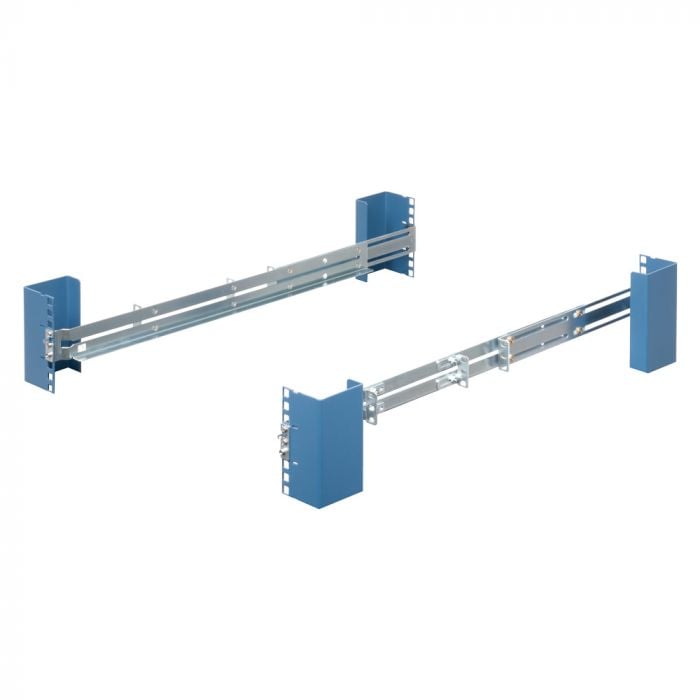

Dell PowerEdge R410, R310, R210, NX300 Fixed Rails

P/N: 1UBRK-R4

Dell R210,310,410,415 and NX300 compatible

  • Square, round, threaded holes
  • Mounting depth of 13 - 31.5" (330 - 800 mm)
  • Supports L, C, Z, and ? rack upright shapes
  • Dell rail not required

Fits in any 2 or 4Post Rack

  • Works with square, round and threaded holes 4Post racks
  • 2Post center or flush mount
  • Center or flush mounts in Telco, relay racks
Product Name P/N: Availability Price Qty
Dell R410, R310, R210, NX300 Fixed Rails 1UBRK-R4
In Stock
£85.00

Features

The Dell PowerEdge R410, R415, R310, R210, NX300 Fixed Rails are compatible with 4Post or 2Post rack rails. They work with square, round, or threaded hole racks. These rack rails offer a mounting depth range of 13 - 31.5" (330 - 800 mm). The front mounting flange of the rail kit engages the Dell server's slam latch.

Dell PowerEdge R410, R310, R210, NX300 Fixed Rails - Technical Specifications

Rail OEM Dell
Server Compatibility Dell PowerEdge R410
Dell PowerEdge R415
Dell PowerEdge R310
Dell PowerEdge R210
Dell PowerEdge R220
Dell PowerEdge NX300
Rack Type 4Post 19" EIA-310 standard server rack
Rack Type 4Post, 2Post
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rack Units 1U
Mounting Depth Range 13 - 31.5" (330 - 800 mm)
Overall Installation Depth 4Post : 13 - 31.5" (330 - 800 mm)
2Post:: 2 - 8" (51 - 203 mm)
Tech Notes The front mounting flange of the rail kit engages the Dell slam latch
