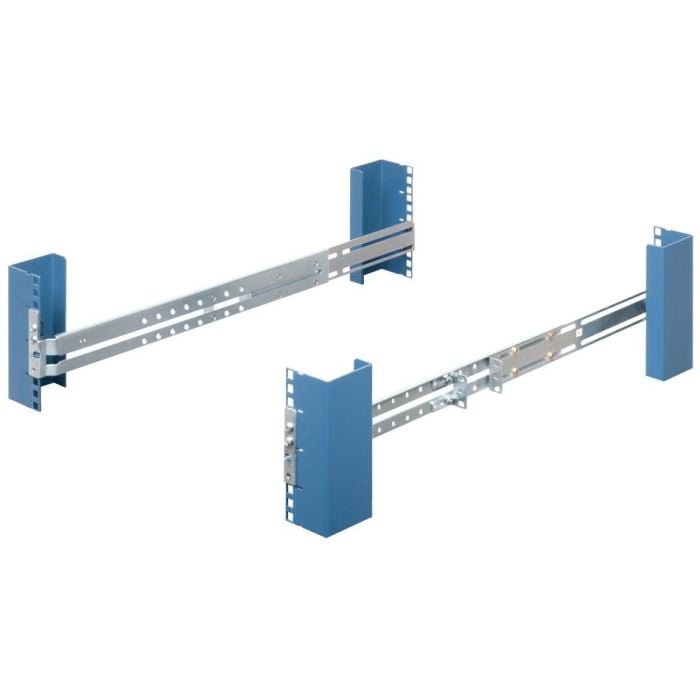

Front view - Dell PowerEdge R710 Rack Rails

 Front view - Dell PowerEdge R710 Rack Rails

Hover to View, Click to Zoom

  • Front view with server - Dell PowerEdge R710 Rack Rails

Dell PowerEdge R710 Rack Rails


Fits any 4Post rack

  • Square, round, threaded holes
  • Mounting depth of 3 - 30" (76.2 - 762 mm)
  • Supports L, C, Z, and ? rack upright shapes

Alternative to Dell R710 rail kit

  • Dell rail kit not required

Fits any 2Post rack

  • Center mounts in 2Post rack
  • Works with 3"-6" uprights
Product Name P/N: Availability Price Qty
Dell PowerEdge R710 Rack Rails 2UBRK-R7
In Stock


The Dell PE R710 rail kit is a replacement for the Dell rail kit that is provided with the R710 server. The R710 rail kit is compatible with 4Post and 2Post server racks. The Dell R710 rail kit is not a ball-bearing rail kit. The Dell R710 rail kit is a fixed rack mounting device.

Dell PowerEdge R710 Rack Rails - Technical Specifications

Rail OEM Dell
Server Compatibility Dell PowerEdge R710
Rack Type 4Post and 2Post 19" EIA-310 standard server racks
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type Fixed
Mounting Depth Range 3 - 30" (76.2 - 762 mm)
Overall Installation Depth 27.6" (701 mm)
Included Hardware
  • (10) 10-32 pan head screws
  • (10) 12-24 pan head screws
  • (10) 10-32 cage nuts
  • (10) 12-24 cage nuts
Finish Zinc plated
Tech Notes The front mounting flange of the rail kit engages the Dell slam latch
Assembly Notes Phillips head screwdriver required
