Alternative to Dell R510 Rail Kit

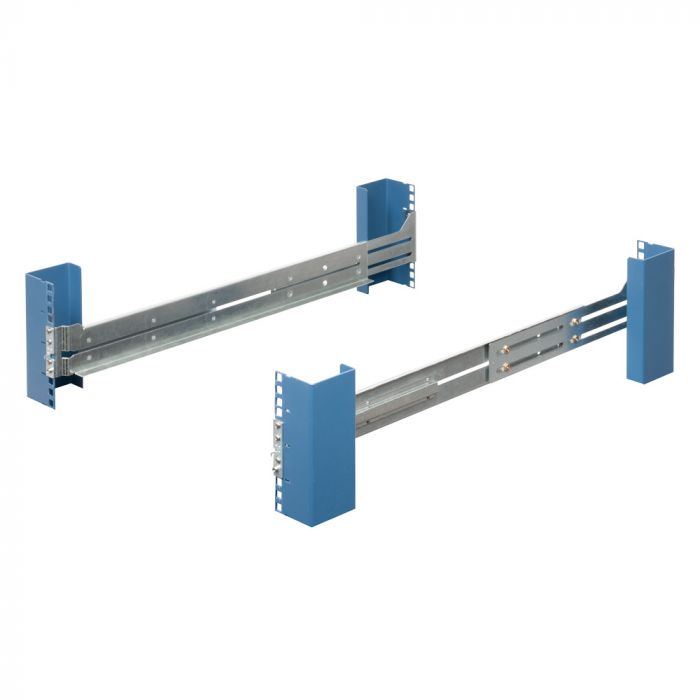

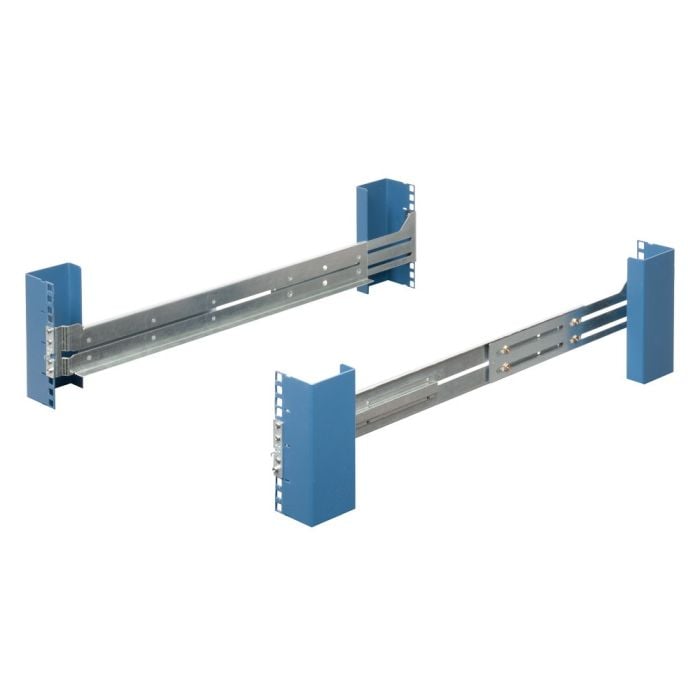

Front view - Dell R510 Rack Rails

 Front view - Dell R510 Rack Rails

Hover to View, Click to Zoom

  • Front view with server - Dell R510 Rack Rails
  • Rear view - Dell R510 Rack Rails
  • Side view - Dell R510 Rack Rails
  • Front view - P/N: 109-1872 - 2Post center mount - Dell R510 Rack Rails
  • Front view with server P/N: 109-1872 - 2Post center mount - Dell R510 Rack Rails
  • Front view - P/N: 109-1872 - 2Post flush mount - Dell R510 Rack Rails

Dell PowerEdge R510 Rack Rails

P/N: 109-1685

Fits any 4 Post rack

  • Square, round, threaded holes
  • Supports L, C, Z, and ? rack upright shapes
  • Compatible with 4 hard drive and 8 hard drive chassis only
  • Dell R510 chassis with 12 hard drives require 2UKIT-109 rails

4Post Mounting

  • 4Post Shallow Mounting of 30.1 - 32.5" (764 - 825 mm): Requires the P/N:109-1685
  • 4Post Deep Mounting depth of 11 - 34" (279 - 864 mm) : Requires the P/N:109-1837

2Post Mounting

  • 2Post Center Mount or Flush Mount: Requires the P/N:109-1872
  • Dell R510 chassis with 12 hard drives require 2UKIT-009 rails
Product Name P/N: Availability Price Qty
Dell R510 Rack Rails (See Mounting Depth Details) 109-1685
In Stock
£35.00
Dell R510 Rack Rails (11 - 34" Mounting Depth) 109-1837
In Stock
£45.00

Features

The Dell PE R510 rail kit is a replacement for the Dell rail kit that is provided with the R510 server. The R510 rails work with 4Post server racks. The Dell R510 rail kit is not a ball-bearing rail kit. The Dell R510 rail kit is a fixed rack mounting device.

Dell PowerEdge R510 Rack Rails - Technical Specifications

Rail OEM Dell
Server Compatibility Dell PowerEdge R510
Dell PowerEdge R520
Dell PowerEdge R530
Dell PowerEdge R720 XD
Dell PowerEdge R720
Dell PowerEdge R730 XD
Dell PowerEdge R730
Dell PowerEdge R7910
Rack Type 4Post, 2Post, 19" EIA-310 standard server rack
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Rail Type Fixed
Mounting Depth Range P/N: 109-1685
Pre-set at 26 - 29.35" (660 - 745 mm)
30.1 - 32.5" (764 - 825 mm) range may be attained with a hardware adjustment

P/N: 109-1837
Pre-set at 26.2 - 30.3" (665 - 769 mm)
11 - 34" (279 - 769 mm) range may be attained with a hardware adjustment
Included Hardware
Kit Contents:
(1) Right Rail Assembly
(1) Left Rail Assembly
Mounting Hardware:
(2) Hook Plates (Left & Right)
(6) 8-32 x .500 Pan Head
(8) 10-32 x .500 Pan Head
(8) 12-24 x .500 Pan Head
(8) 2-24 Cage Nut
Finish Galvanized
Assembly Notes Phillips head screwdriver required
