122-2579 with server

 122-2579 with server

Hover to View, Click to Zoom

  • 2Post Center Mount

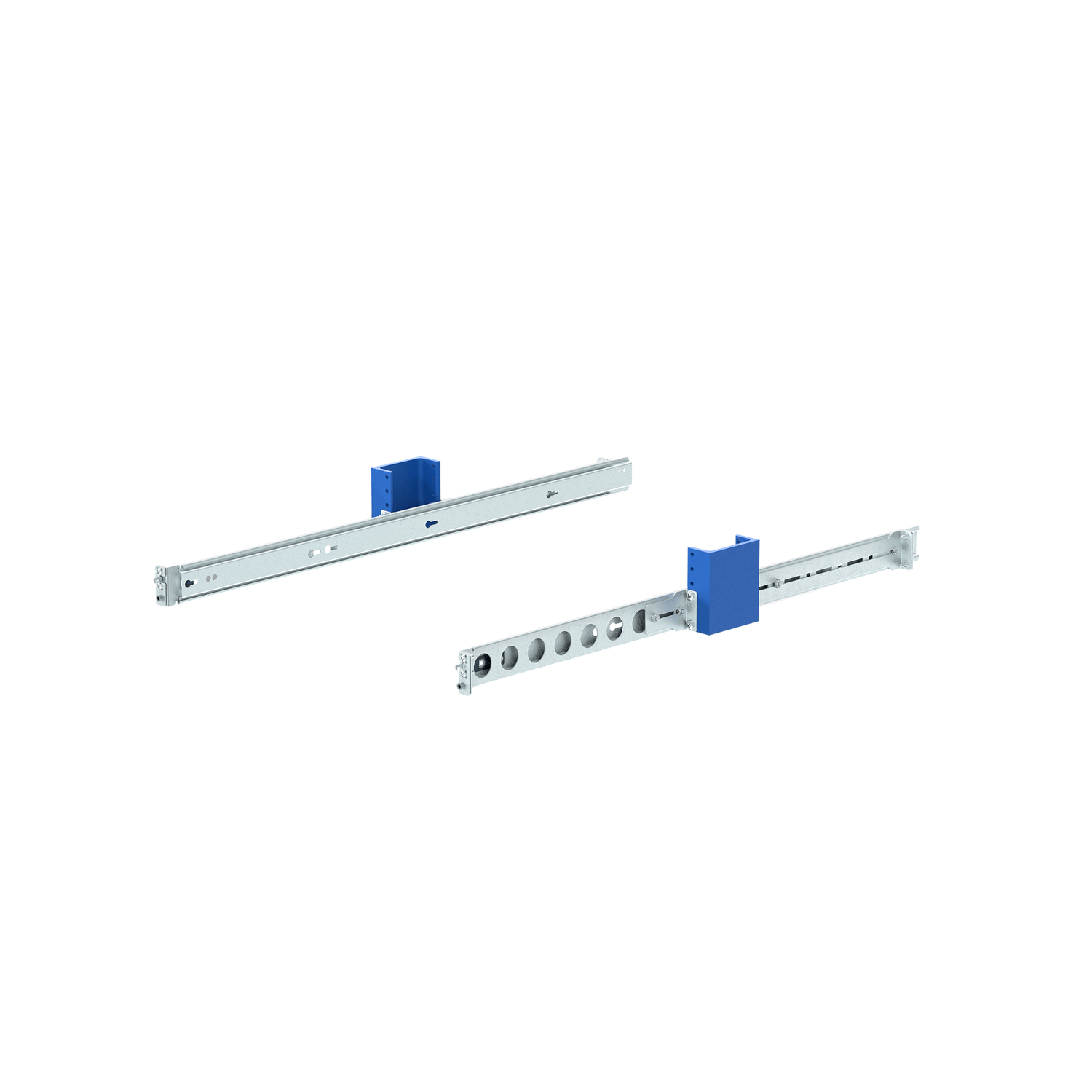

Dell PowerEdge R320, R420, R620 Slide Rails

Fits any 4Post rack

  • Square, round, threaded holes.
  • Mounting depth of 3 - 30" (76.2 - 762 mm).
  • Dell rail kit not required.
  • Supports L, C, Z and ? rack upright shapes

Alternative to Dell R620 rail kit

  • High quality, dry slide rail kit

Fits any 2Post rack

  • Center mounts in 2Post rack
  • Works with 3"-6" uprights
Product Name P/N: Availability Price Qty
Dell R320, R410,R420, R620 Slide Rails 122-2579
In Stock
£80.00

Features

The Dell PowerEdge R320, R420, R430, R620, R630 ,NX300, NX400, R230 Slide Rails can provide a stable, sturdy and easy-to-install sliding rail solution for Dell-compatible server racks. These slide rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. In terms of server compatibility, the slide rails are designed for the Dell PowerEdge R320, R330, R410, R415, R420, R620, R630, R230,NX300 and NX400. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3” - 30" (76.2 - 762 mm). This rail kit is not a ball-bearing rail kit.

Dell PowerEdge R320, R420, R620 Slide Rails - Technical Specifications

Rail OEM Dell
Server Compatibility Dell PowerEdge R620
Dell PowerEdge R630
Dell PowerEdge R420
Dell PowerEdge R430
Dell PowerEdge R415
Dell PowerEdge R410
Dell PowerEdge R320
Dell PowerEdge R330
Dell PowerEdge R230
Dell PowerEdge NX300
Dell PowerEdge NX400
Rack Type 19" EIA-310 standard server rack
Rack Type 4Post, 2Post
Hole Type Compatible with round,square and threaded racks.
Rail Type Dry slide rails
Mounting Depth Range 3” - 30" (76.2 - 762 mm)
Included Hardware Assorted hardware included
Assembly Notes Phillips head screwdriver required
