Dell PowerEdge R520, R720, R720xd, R730, R820 Slide Rails

122-2580

Availability: In stock

Dell PowerEdge R520, R720, R720xd, R730, R820 Slide Rails

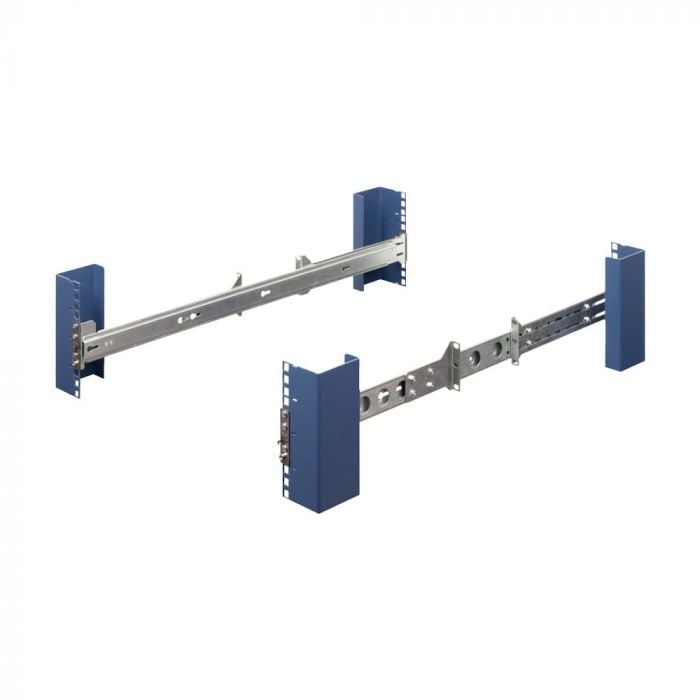

  • 122-2580 RackSolutions Dell R520, R510, R720, R720xd, R730, R820 Slide Rails
    122-2580 RackSolutions Dell R520, R510, R720, R720xd, R730, R820 Slide Rails
    close

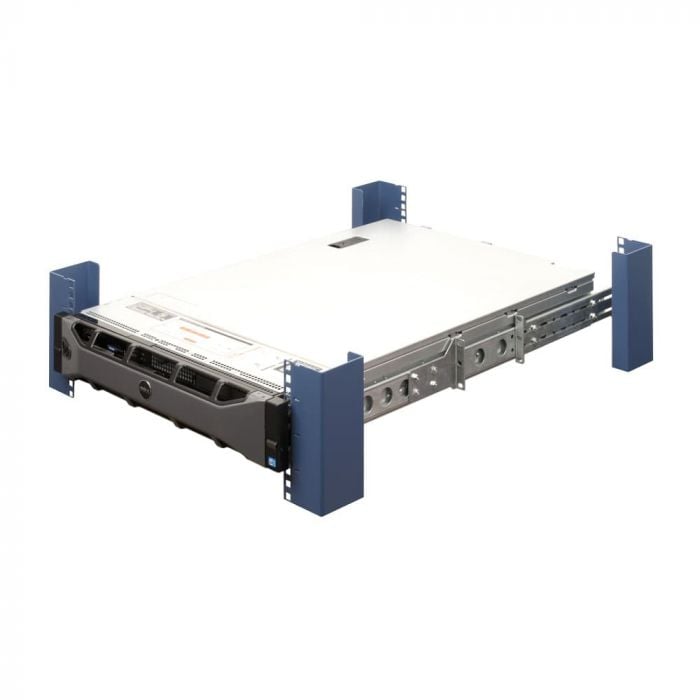

  • 122-2580 in a 2 Post Rack
    122-2580 in a 2 Post Rack
    close
  • 122-2580 RackSolutions Dell R520, R510, R720, R720xd, R730, R820 Slide Rails
    122-2580 RackSolutions Dell R520, R510, R720, R720xd, R730, R820 Slide Rails
    close
  • 122-2580 in a 2 Post Rack - Rails Extended
    122-2580 in a 2 Post Rack - Rails Extended
    close
  • 122-2580 in a 2 Post Rack - Side View
    122-2580 in a 2 Post Rack - Side View
    close

Fits any 4Post rack

  • Square, round, threaded holes.
  • Mounting depth of 3 - 30" (76.2 - 762 mm).
  • Dell rail kit not required.
  • Supports L, C, Z and ? rack upright shapes

Alternative to Dell R720 rail kit

  • High quality, dry slide rail kit

Fits any 2Post rack

  • Centre mounts in 2Post rack
  • Works with 3" - 6" uprights
some_text
Rack Solutions Promise
Product Name SKU Price Qty
Dell PowerEdge R520, R720, R720xd, R730, R820 Slide Rails 122-2580
Excl. VAT: £90.00 Incl. VAT: £108.00
Description

Details

Features

The Dell PowerEdge R520, R720,R730, R820 Dry Slide rails are an alternative solution for the Dell rail kit that is provided with the R510, R520, R530, R720,R720xd, R730, R820 and R7910 server. This rail kit is not a ball-bearing rail kit. Dell PowerEdge R720 Slide Rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3 - 32" (76.2 - 812.8 mm).

Additional Information

Additional Information

Compatibility Dell PowerEdge R820
Dell PowerEdge R720
Dell PowerEdge R720XD
Dell PowerEdge R730XD
Dell PowerEdge R730
Dell PowerEdge R740
Dell PowerEdge R520
Dell PowerEdge R530
Dell PowerEdge R510
Dell PowerEdge R540
Dell Part Number Dell PowerEdge R820 - A6239058
Dell PowerEdge R720 - A6239058
Dell PowerEdge R720XD - A6239058
Dell PowerEdge R730XD - A6239058
Dell PowerEdge R730 - A6239058
Dell PowerEdge R740 - A6239058
Dell PowerEdge R520 - A6239058
Dell PowerEdge R530 - A6239058
Dell PowerEdge R510 - A6239058
Dell PowerEdge R540 - A6239058
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Assorted
Assembly Notes Phillips head screwdriver required
Rail Type Dry Slide
Mounting Depth Range 4Post: 12 - 32" (304.8 - 812.8 mm)
2Post: 3 - 6" (76.2 - 152.4 mm) uprights
Tech Notes The front mounting flange of the rail kit engages the Dell slam latch.
Finish Zinc plated
Rack Units 2U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24 and metric M6
