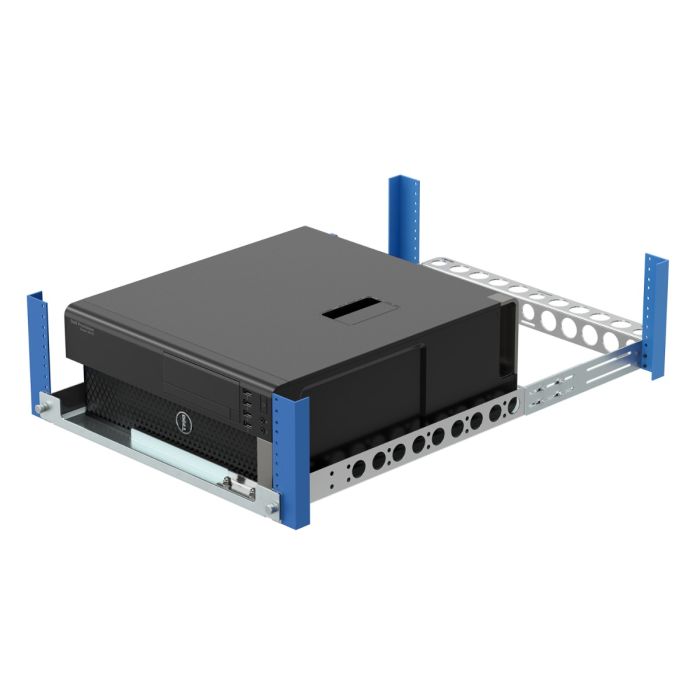

Sliding Shelf/Rails for Dell T3600 or T5600

112-2167

Availability: In stock

Sliding Shelf/Rails for Dell T3600 or T5600

Fits any 4 Post rack

  • Fits square, round, threaded holes
  • Mounting depth: 10 - 31.75" (254 - 806 mm)
  • Includes cabling crossbar (installation is optional)

Rackmounts Dell T3600 and T5600

  • Computer chassis is secured to the shelf
  • Uses 4U space once chassis has been mounted
  • Shelf is a dry slide type
  • Rails are static. Shelf slides on top of rail flanges
  • Thumb screws allow shelf to be secured to front of rack

Compatible with these servers:

  • Dell Precision T3600
  • Dell Precision T3610
  • Dell Precision T5810
  • Dell Precision T5600
  • Dell Precision T5610
  • Dell Precision T7810
RackSolutions is a Dell Technology Partner
Rack Solutions Promise
Product Name SKU Price Qty
Sliding Shelf/Rails for Dell T3600 or T5600 112-2167
Excl. VAT: £100.00 Incl. VAT: £120.00
Description

Details

Features

The Sliding Shelf/Rails for the Dell T3600 and T5600 mounts in any EIA-310, 19" rack with square, round or threaded holes. The T3600 or T5600 is secured to the shelf with a front and rear bracket allowing the shelf to dry slide on top of the metal flanges found on both sides of the universal, fixed mounting rails. The shelf slides completely out of the rack. The Sliding Shelf for the Dell T3600 and T5600 has a mounting depth range of: 10 - 31.75" (254 - 806 mm). It includes a cabling cross bar that is optional for installation. Thumb screws allow shelf for the T3600 and T5600 to be secured to front of the rack. Cage nuts are required for square hole racks. This shelf is compatible with the Dell T3600,T3610,T5810,T5600,T5610 and Dell T7810.

Additional Information

Additional Information

Compatibility Dell Precision T3600
Dell Precision T3610
Dell Precision T5810
Dell Precision T5600
Dell Precision T5610
Dell Precision T7810
Dell Part Number Dell T3600 or T5600 - A6782673
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware All hardware is included.
Cable Management Cable bar is included, but installation is optional
Assembly Notes 3/8" wrench and Phillips head screwdriver required
Mounting Depth Range 10 - 31.75" (254 - 806 mm)
Tech Notes Compatible with these servers:
Dell T3600
Dell T3610
Dell T5810
Dell T5600
Dell T5610
Dell T7810
Finish Zinc plated
Material Type Steel
Rack Units 2U
Rack Type 4 Post
Amazon ASIN B0093GQVK0
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
TAA Compliant Yes
