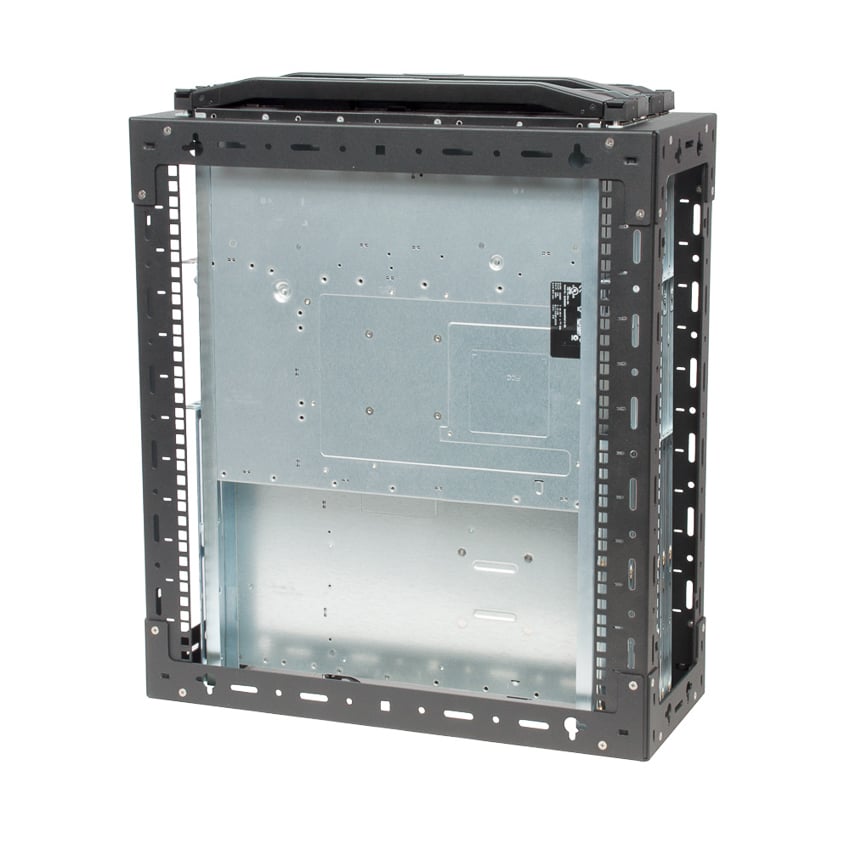

Desktop Rack, 12U x 4U, shown with a 1U server

 Desktop Rack, 12U x 4U, shown with a 1U server

Hover to View, Click to Zoom

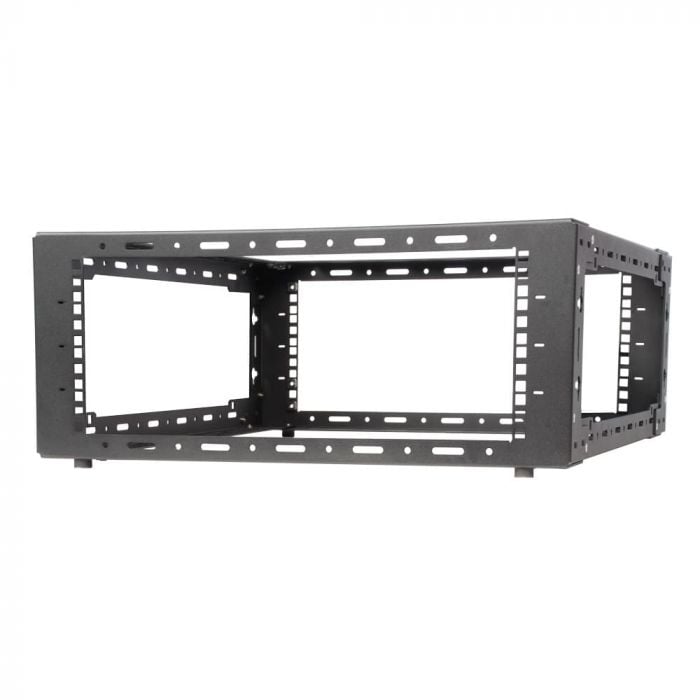

  • Desktop Rack, 12U x 4U
  • 12U x 4U, Desktop Rack shown with side panels
  • 12U x 4U, Desktop Rack shown with two, 1U servers and a PDU
  • 12U x 4U, Desktop Rack shown with three, 1U servers and a PDU
  • 12U x 4U, Desktop Rack shown with four, 1U servers
  • Close-up of top, outside corner of Desktop Rack
  • Close-up of bottom, inside corner of Desktop Rack
  • Close-up of bottom, outside corner with rubber feet

Open Frame Desktop Rack

9 configurations

  • 4U, 6U, or 9U front mount
  • 12U, 15U, 21U top mount
  • 50 lb per U capacity (9U = 450 lb capacity)
  • Optional side panels

Desktop mount 19" equipment and servers

  • Mount 19" rack mount equipment
  • Mount servers up to 9U
  • Open design allows for optimal air flow
  • Easy cable access & tie points
  • For servers, use 15U depth = 29.95" mounting depth
  • *Be sure your server rails will extend to 29.95" before ordering
How to select a Desktop Rack

Alternate racks

In Stock

Starting at:
£133.49

Price as configured: £0.00

  •
  •   Call to Order
  •
  •
  •
  •
  •
  •   Call to Order
  •   Call to Order
  •
  •
  •   Call to Order
  •
  •   Call to Order
  •   Call to Order
  •   Call to Order
  •   Call to Order
  •   Call to Order
  •   Call to Order

Price as configured: £0.00

Add Items to Cart

Features

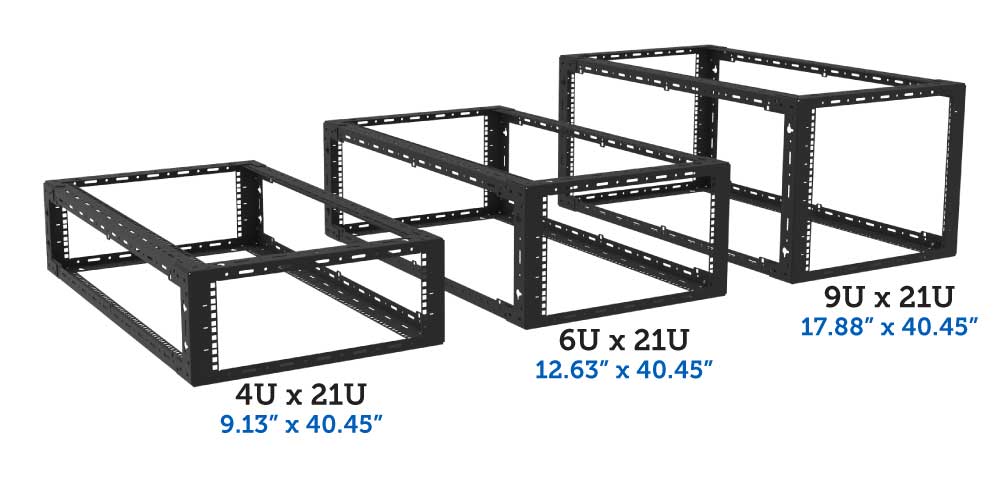

Sizes


Side Panels

These tool-less, non-locking, side panels come in 9 different sizes and are sold as single units. You must order 2 side panels per rack if you wish to install side panels on the left and right side of the rack. Desktop rack side panels are easy to install.


Filler Panels

Filler Panels may be used to fill in the open spaces on the front, back and top of the Desktop Rack.


Power Strips

Any of these horizontal power strips will easily mount to the top, front or back of this Desktop Rack.

Open Frame Desktop Rack - Technical Specifications

Finish Black, powder coated
Included Hardware (2) Frames
(4) Posts

Assembly Hardware Kit
(32) 10-32 x .375" Flat Head Screws

Mounting Hardware Kit
(4) .25" Hex Lag Screws
(4) .281 Flat Washers

Rack Mount Hardware Kit
(20) 12-24 x .500" Pan Head Screws
(20)12-24 Cage Nuts

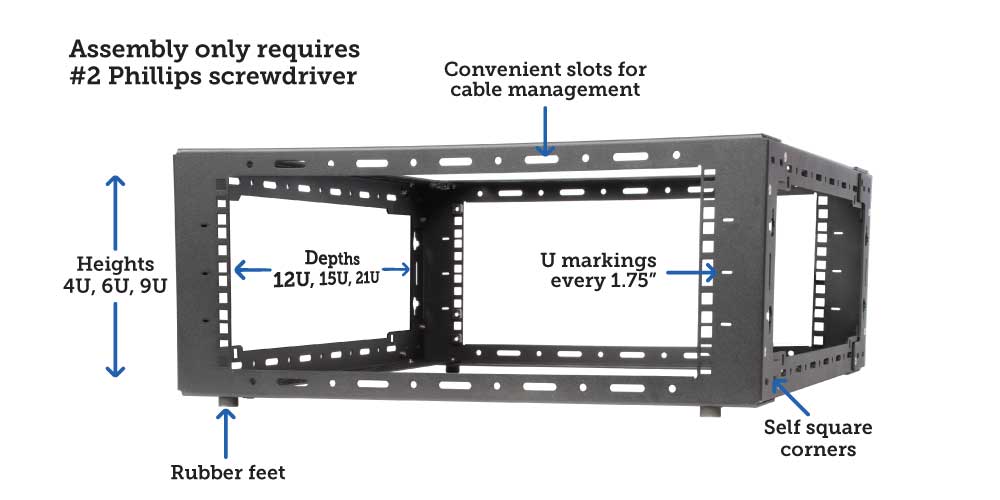

Assembly Notes Assembly time is less than 10 minutes
Requires only a #2 Phillips Screwdriver
