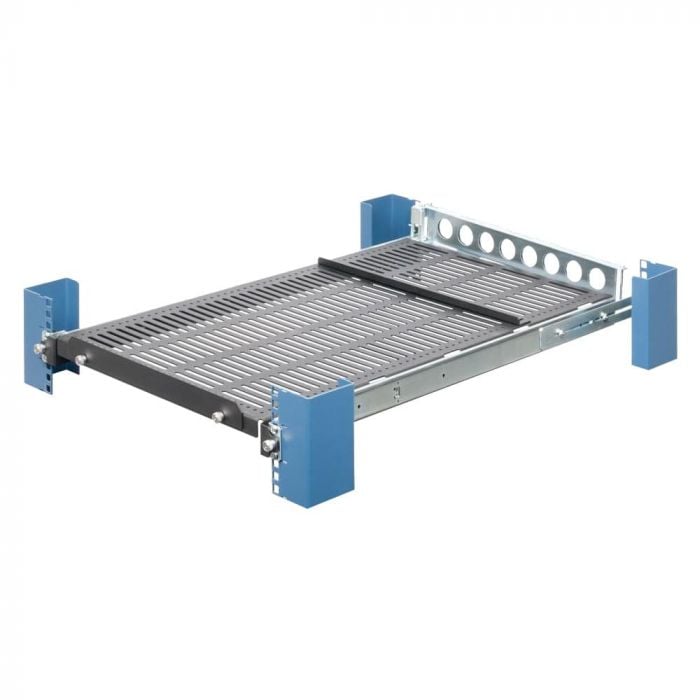

Sliding Equipment Shelf (Shallow)

As low as £0.00 £0.00
In stock

Easy Slide Shelf with Cable Management and Stop Bars

  • Cable management arm, equipment stops included with shallow rack shelf
  • Tower-to-Rack conversion
  • Dell, HP, IBM compatible
  • High quality ball bearing slides

Fits Any 4 Post Rack

  • Weight Capacity: 95lbs (43kgs)
  • Shelf Depth: 22" (558mm)
  • Mounting Depth: 10 - 28" (254 - 711 mm)
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

RackSolutions equipment shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lb equipment capacity and will support a wide variety of electronic equipment. Computer equipment up to 22" deep can be supported on a 19 inch equipment shelf. The slide rails extend a full 18" on this shorter equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Includes removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat and optional straps for securing equipment for transport or seismic applications.

More Information
Visbility Bypass Enabled Yes
Dell Part Number
115-1772 - A9753598

115-1892 - AA569322
Assembly Notes Removable front equipment stop bar
Adjustable rear equipment stop bar
Anti-slip mat included
Optional straps for securing equipment for transport or seismic applications
Equipment Depth 22" (558mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 22" L x 16.5" W (558 x 419 mm)
Finish Textured, powder-coated black
Mounting Depth Range 19" - 30" (482mm - 762mm)
Included Hardware Cage nuts and screws
Weight Capacity 95lbs (43kgs)
Rack Units 1U
Tool-less/Standard Standard
Hole Type Compatible with round, threaded, or square rack holes
TAA Compliant Yes
RoHS Compliant Yes
