Rear Brackets 2-Pack for 108 Fixed Shelf
£32.40
£27.00
Out of stock
SKU
101-1838
Rear Brackets for 1USHL-108 Fixed Rack Shelf
- 1 Pair of Replacement Brackets
- Sold Separately from Shelf
- Blue Post/Shelf sold separately
- Fits square, round, and threaded holes
Shelf Compatibility
- 1USHL-108 Fixed Rack Shelf - Capacity: 150 lbs (68 kgs)
- 1USHL-108 Fixed Rack Shelf - Depth: 24" (610 mm) or 108-2272 20" (508 mm)
- 1USHL-108 Fixed Rack Shelf - Mounting Depth: 24" shelf - adjustable mounting from 11-30" (279-762 mm)
- 108-2272 Fixed Rack Shelf - Mounting Depth: 20" shelf - adjustable mounting from 11-25" (279-635 mm)
- Brackets can be used with any 2 Post or 4 Post Rack
Our RackSolutions Fixed Rack Shelf (1USHL-108) comes complete with rear brackets for installation, but in the event that the brackets are lost or need to be replaced for any reason, we provide extra Rear Brackets that are sold separately.

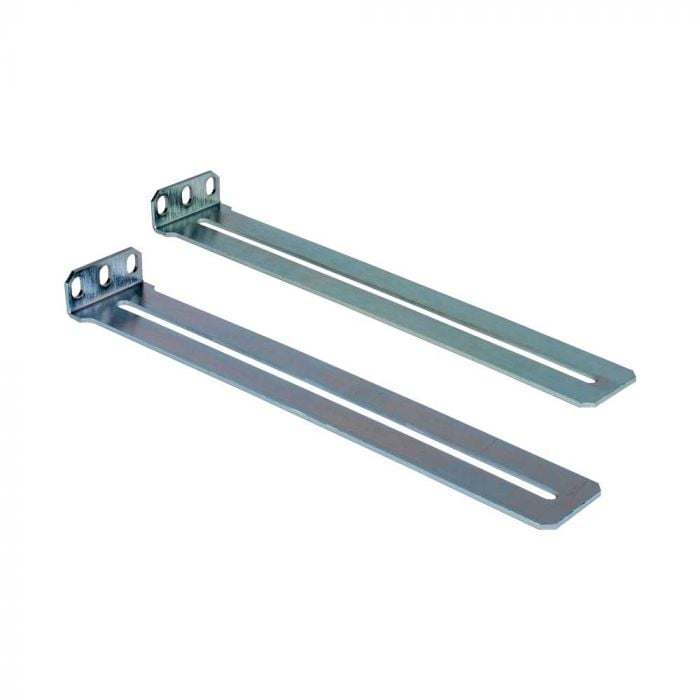

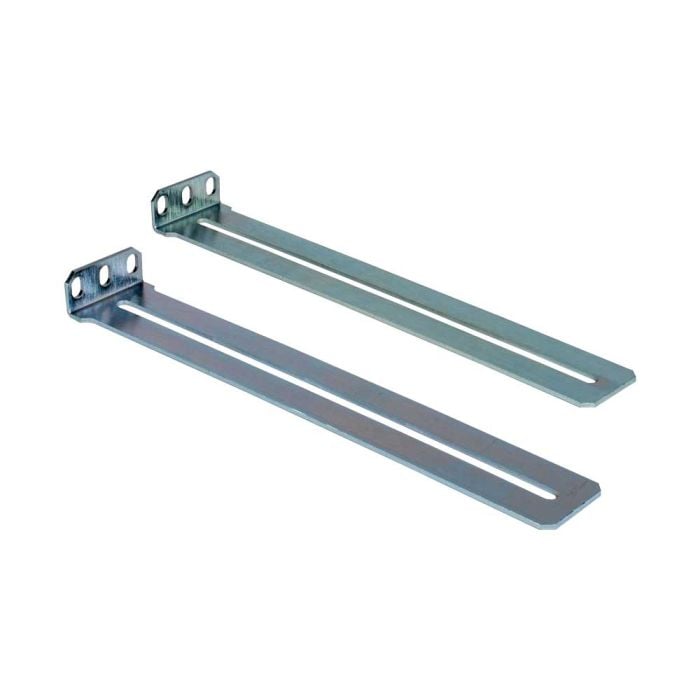

Our Rear Brackets include 2 silver brackets that are great replacement rack brackets for the Fixed Rack Shelf. The blue posts and shelf are shown for reference only.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 1.230000 |
| Country of Manufacture | United States |
| Assembly Notes | The Fixed Rack Shelf, 1USHL-108, comes complete with these rear brackets, but in the event that the brackets are lost or need to be replaced for whatever reason, this pair is also sold separately. |
| Equipment Depth | Shelf depth is 24.0" (610 mm). Equipment can be deeper. Shelf depth is 20.0" (508 mm). Equipment can be deeper. |
| Shelf Type | Vented |
| Rack Type | 2 Post , 4 Post |
| Fixed/Sliding | Fixed |
| Shelf Surface Area | 1USHL-108 17.1" x 24" (435 x 609.6 mm) |
| Mounting Depth Range | 11 - 30" (279 - 762 mm) for 24" shelf 11 - 25" for 20" shelf (279 - 635 mm) |
| Weight Capacity | This shelf 1USHL-108 is capable of being installed right side up or upside down, depending on the equipment width. 150 lbs (68 kgs) for 4Post mounting 100 lbs (45 kgs) for 2Post, center mounting 75 lbs (34 kgs) for 2Post, flush mounting |
| Rack Units | 1U |
| Hole Type | Fits Square, Round, Threaded Holes |
