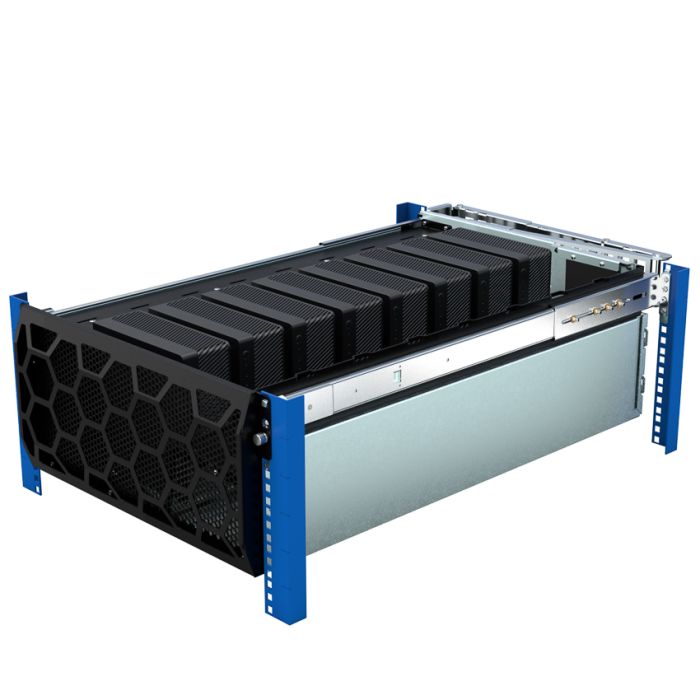

5U HyperShelf for 8 Dell Precision 3260 Compact Workstation
Designed for Dell Precision 3260
- Rack mount 8 Dell Precision 3260 per 5 rack units of space
- Increase scalability and decrease deployment times
- No power button or peripheral port interference
- 26” - 29.50” mounting depth range
Maximize Space and Performance

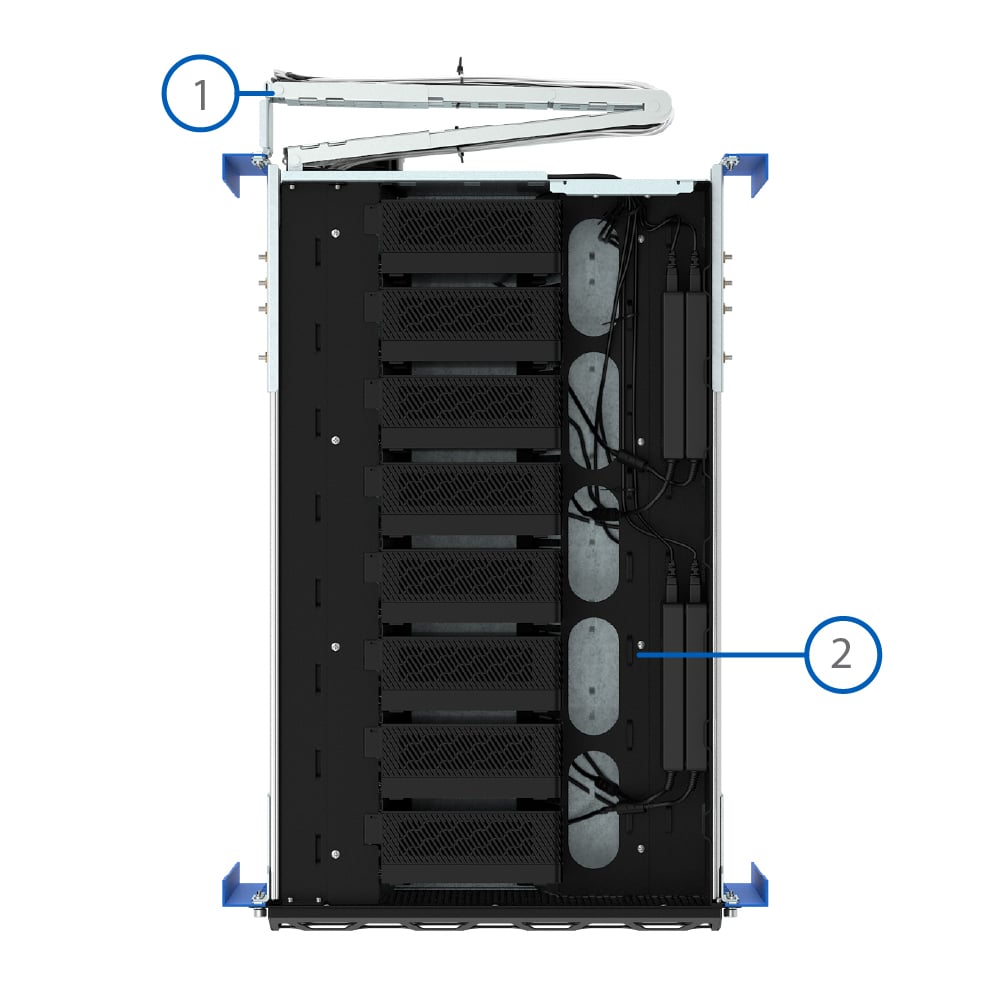

- Fully articulated cable management arm for in-rack serviceability

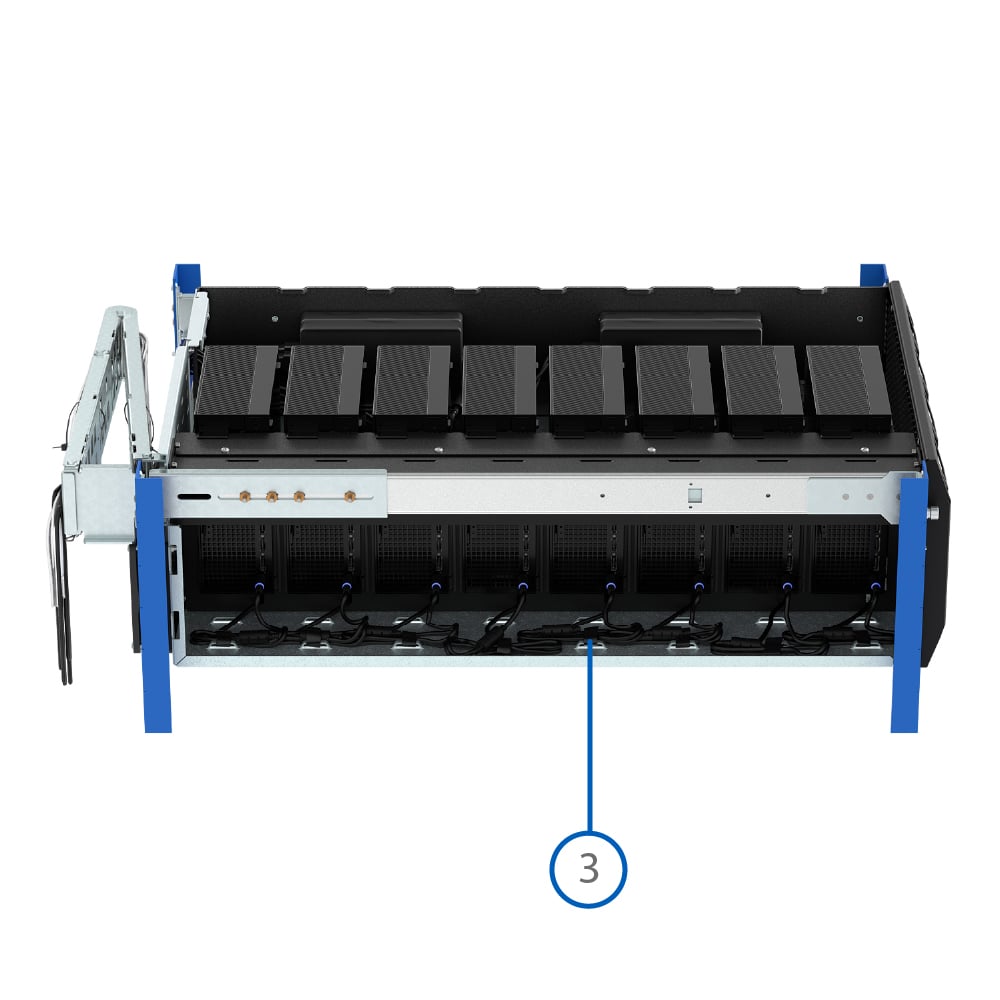

- Built-in cable management for tie points and cable pathways
- Designated tie down points for power adapters

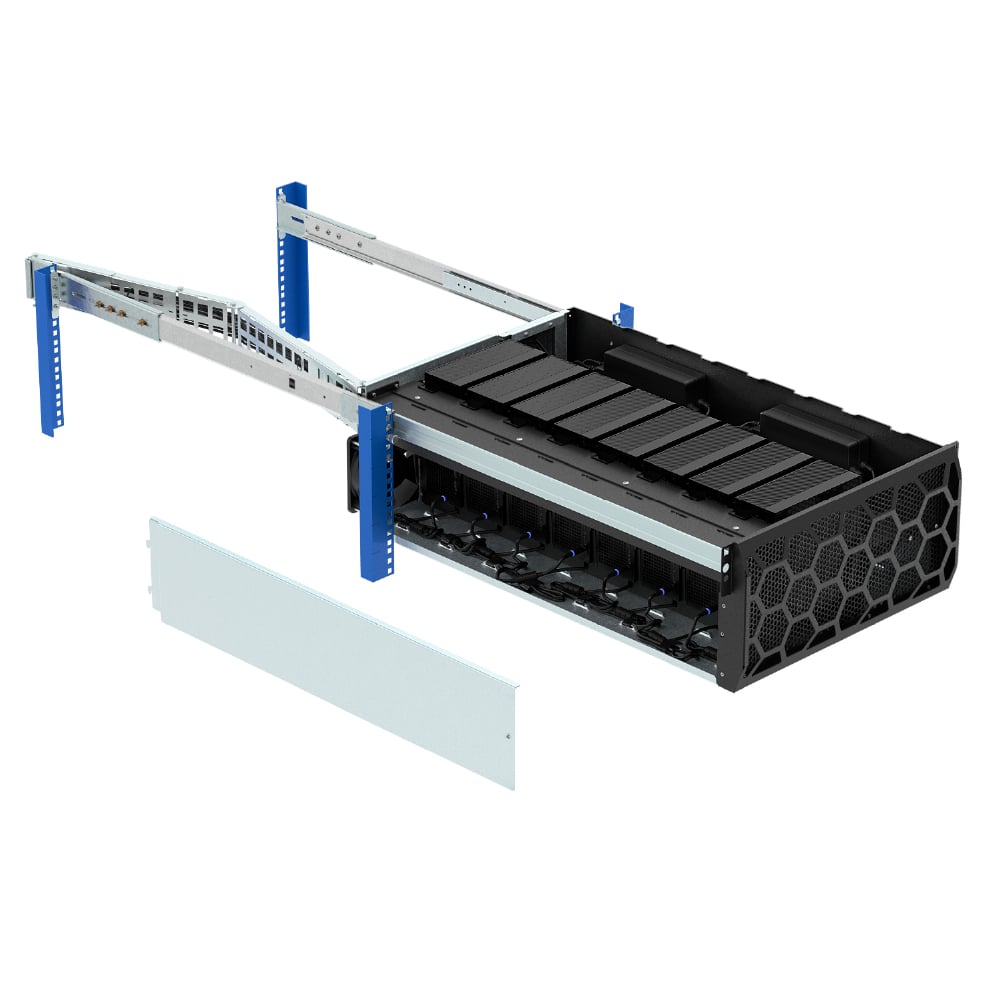

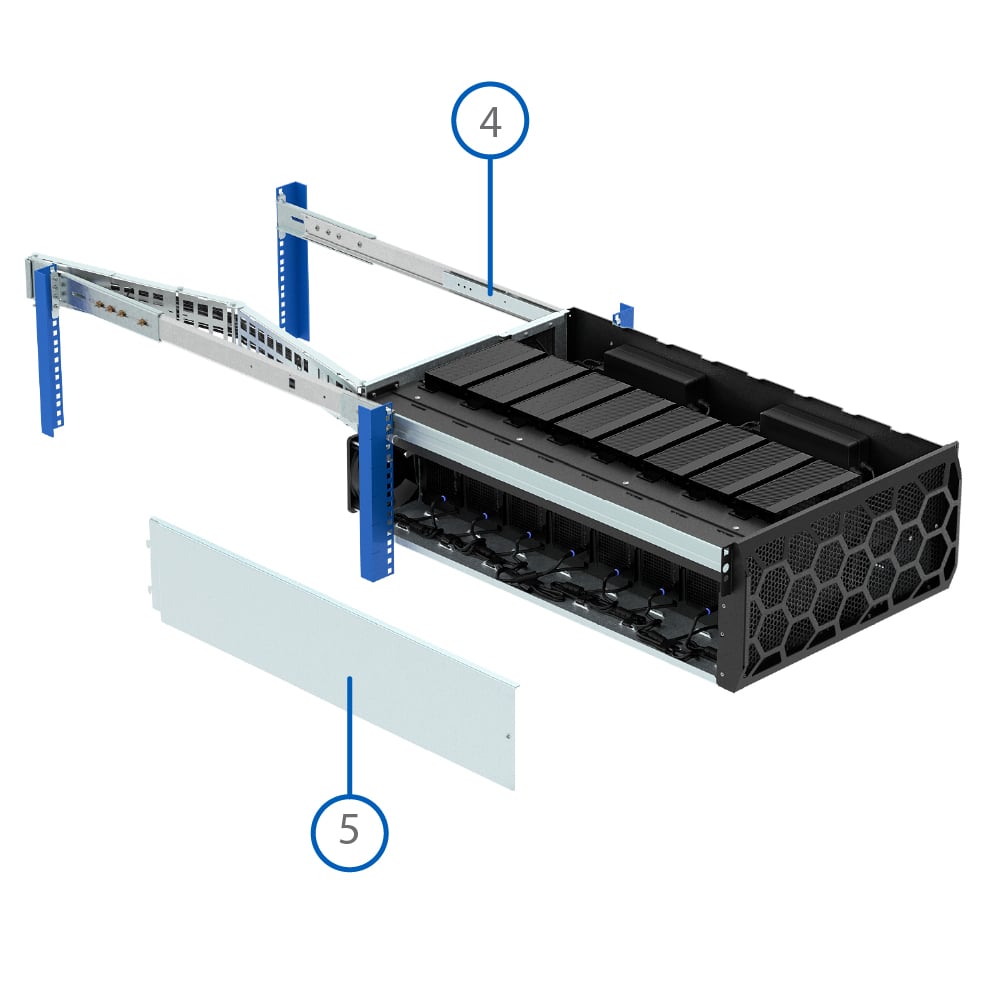

- High-quality ball bearing slide rails with high capacity and full extension

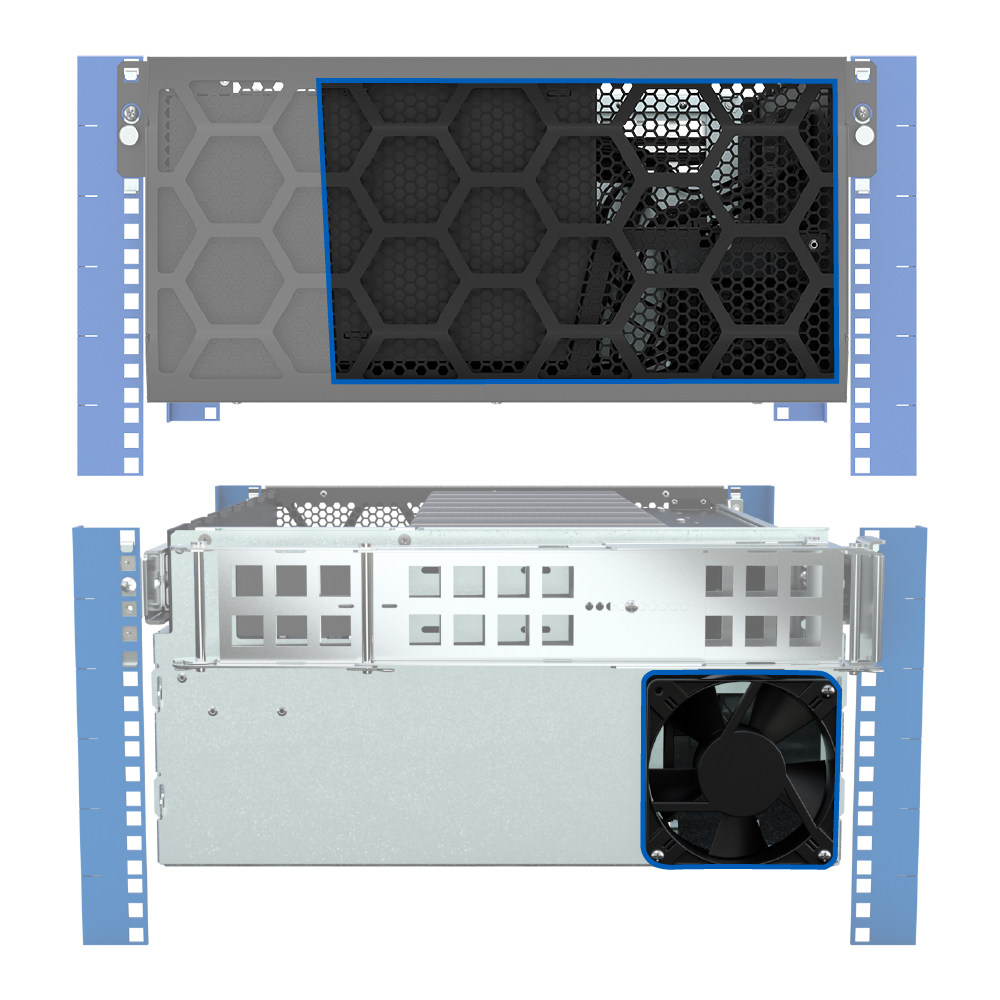

- Integrated 120mm exhaust fan for increased airflow and cooling efficiency
HyperShelves are equipped with a standard 6ft Fan Cable with a NEMA 5-15 plug to a Fan Terminal Receptacle. A 6ft Fan Cable with a IEC C14 plug to a Fan Terminal Receptacle (SKU:100-9043) can be purchased separately from RackSolutions. An adapter may be required to accommodate different plug types. RackSolutions does not provide adapters for the HyperShelf.
RackSolutions HyperShelf for Dell Precision 3260 is designed for enterprise deployments and data center environments. You can rack mount up to 8 Dell Precision PCs in a 5U sliding enclosure. This rack mount shelf is built to optimize airflow and space so that your Dell PCs will last and perform.

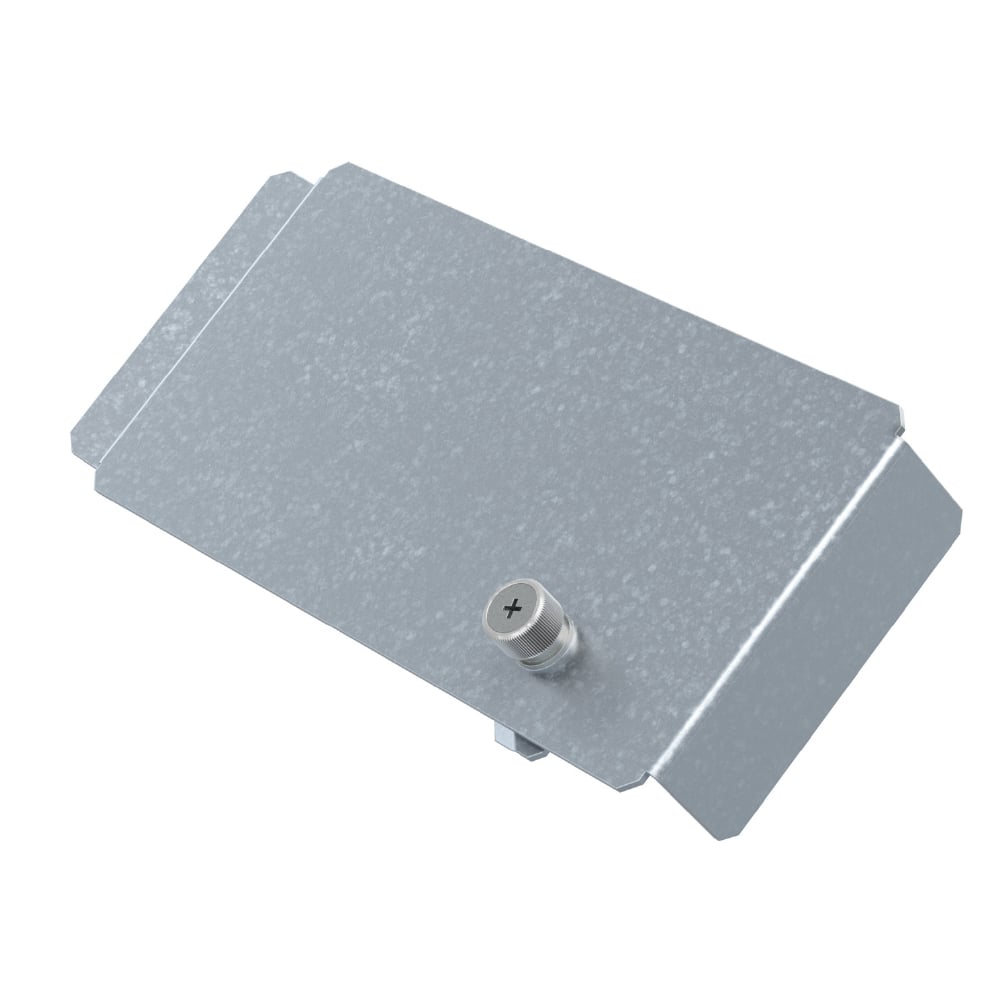

The HyperShelf provides a lower installation cost per computing device and does not interfere with the power button or peripheral ports. A removable side panel is included for easy cable access and exhaust containment. You will be able to increase operational efficiency with limited space while decreasing deployment times.
BABA Compliant | No |
---|---|
RoHS Compliant | Yes |
TAA Compliant | Yes |
UL Compliant | No |
ETL Compliant | No |
Country of Manufacture | United States |
Included Hardware | 115-8765
|
Compatibility | Dell |
Dell Part Number | AC200198 |
Ingram Part Number | 115-8765 - 06UU57 |
Fixed/Sliding | Sliding |
Finish | Galvanized Steel |
Hole Type | Square |
Material | 16 GA Steel |
Shelf Depth | 25"-30" (635mm-762mm) |
