1U Rack Mount Shelf for Apple Mac Mini (3rd and 4th Generation)

As low as £0.00 £0.00
In stock
Qty:

Rack Mount up to 4 Mac Minis Per Shelf

  • Mount up to 4 Mac Mini computers in just 1U of space
  • Compatible with Apple Mac Mini 2nd and 3rd Generation (2010 to 2018)
  • Compatible with the Developer Transition Kit (DTK) with A12Z SoC processor
  • Left and right snap-in tool-less slide rails for quick installation and easy maintenance
  • Integrated airflow ducting for optimal cooling and performance
  • All rear peripheral ports are accessible
  • Includes adhesive cable tie-downs

112-5541 ONLY

  • Front panel USB 2.0 ports
  • Includes rear tool-less cable management bar

See "Additional Information" for compatibility.

The Mini Rack Access is an ideal solution to create a mini power rack. In less than 1U, up to 4 Mac minis can be installed in a standard 19" server rack shelf or any standard equipment rack. No tools are required for installation of the mini access. The four USB 2.0 ports on the front allow for easy access to each Mac mini. The sliding shelf works with standard mounting depth server racks that are square hole. The design of the 19" shelf allows airflow from the front of the rack to exhaust directly to the rear of the rack shelf without trapping them in hot air, the temperature will stay cool even when the Mac mini self is mounted between two other components. The layout of the Mini rack allows cables from the front Mac minis to be routed down the center of the rack. Two cable management clips ensure the cabling stays put. There's also an option to install at the rear of the rack. This rack is also compatible with Apple's Developer Transition Kits running the A12Z SoC.

Tech Specs for Mac Mini Rack Shelf

  • Only compatible with racks with standard EIA 3/8" square holes
  • Mounting Depth: 27.77- 29.97" (705.5mm - 761.23)
  • Shelf Depth: 17.75" (450.85 mm)
  • Compatible with square hole 19" racks
  • Weight Capacity: 45 lbs (21 kgs)

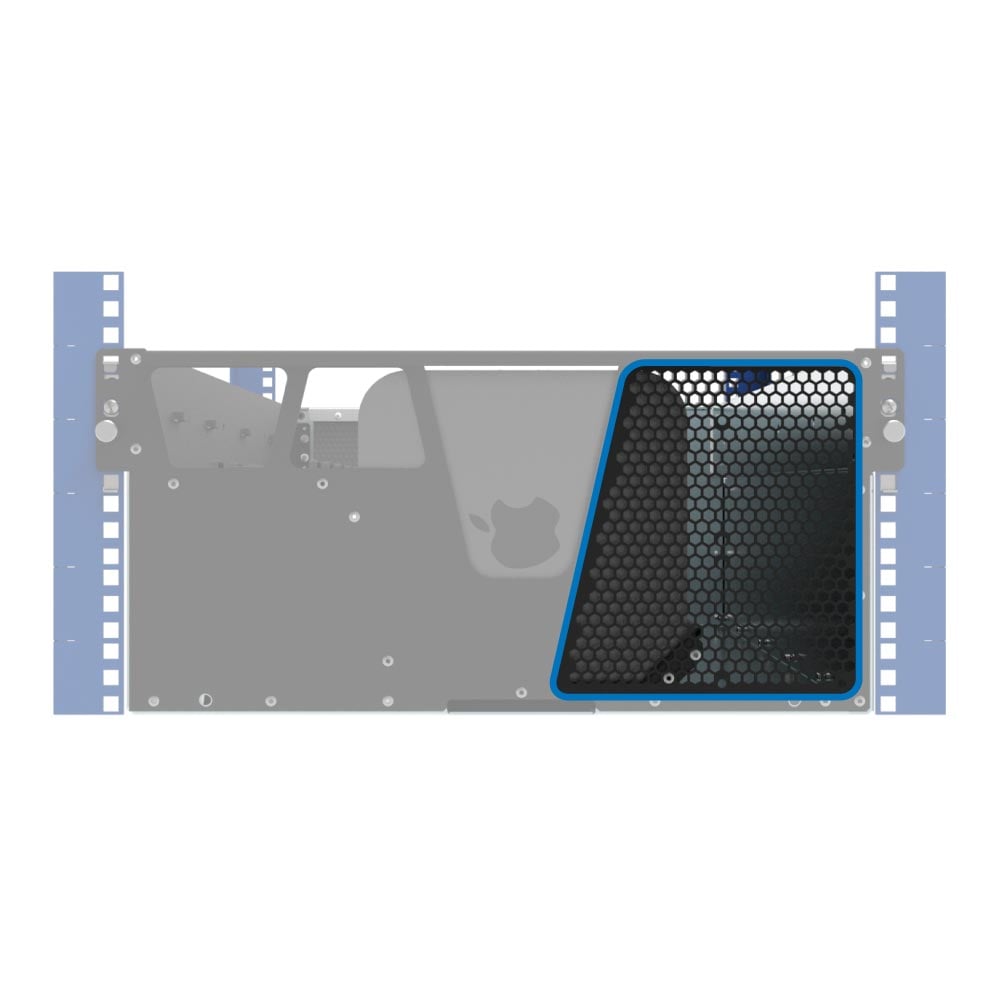

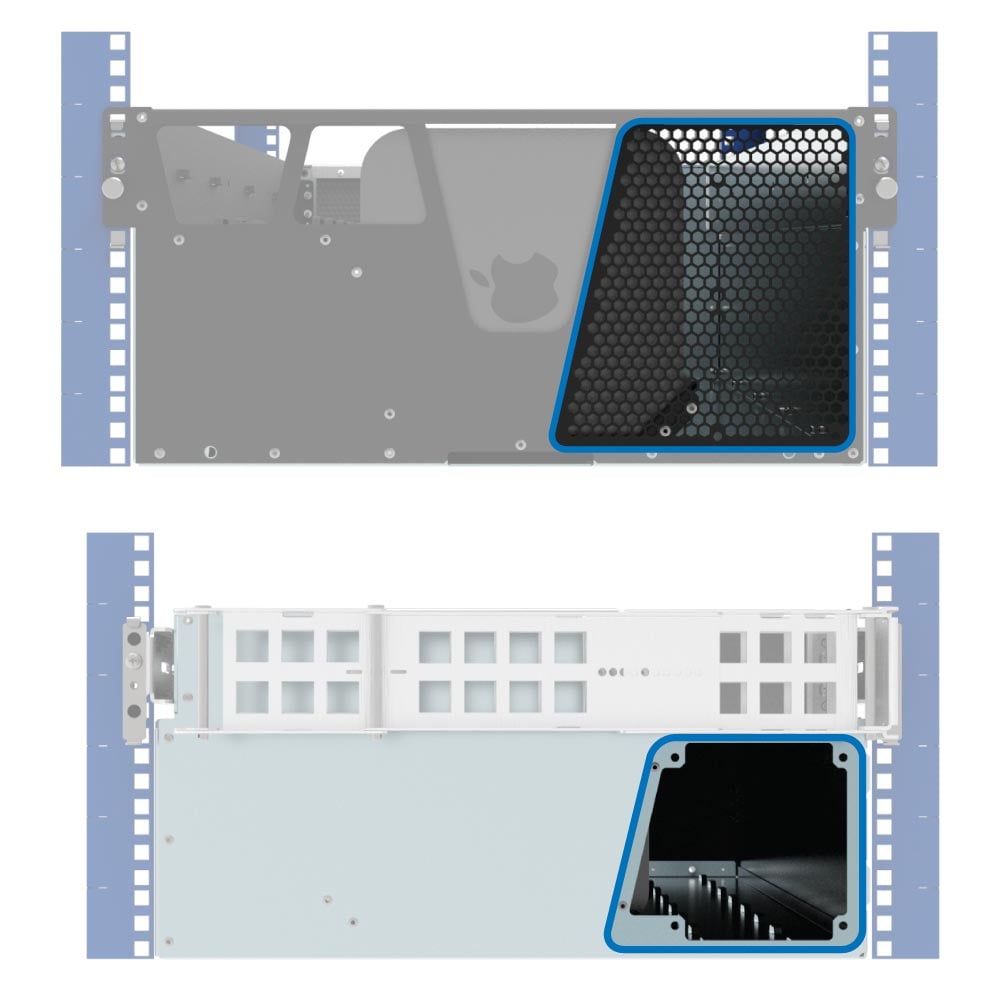

Integrated Aiflow DuctIntegrated Aiflow Duct

Integrated Airflow Duct

The ventilation system takes in cold air through the shelf's front air intake and moves the air to a lower chamber where each Mac Mini's air intake resides. Then the Mac Mini's own exhaust then pushes the hot air out, keeping hot and cold air separate.

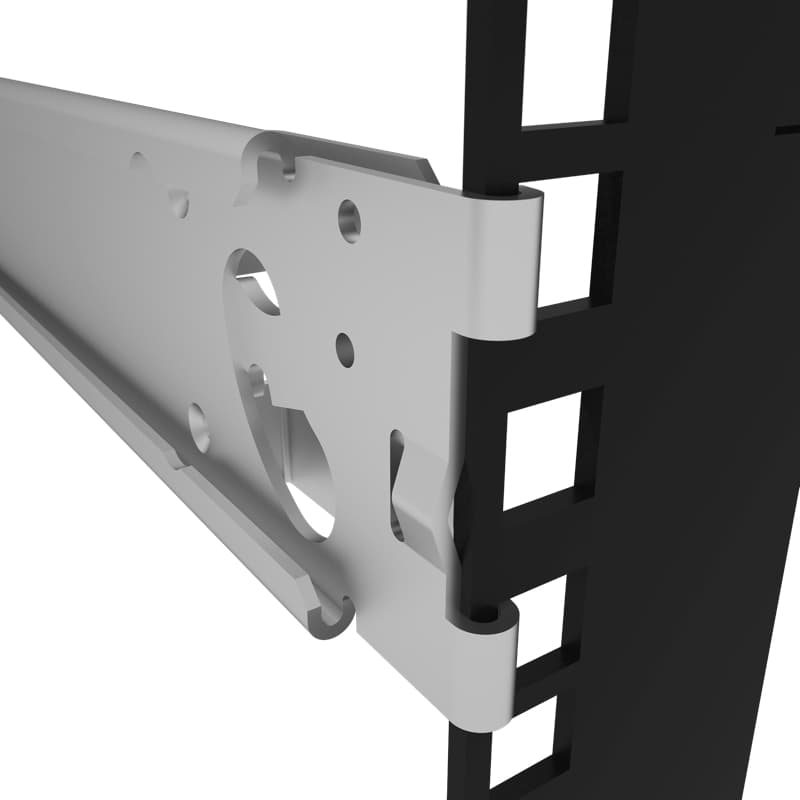

Tool-less InstallationTool-less Installation

Tool-less Installation

The Mac Mini Shelf can be installed in less than 5 minutes, no tools required. Each rail securely engages the square mounting holes on each side of the rack which then allow shelf to just slide into place.
More Information
Visbility Bypass Enabled Yes
Equipment Depth 17.75" (451mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 17.75 x 16.375" (451 x 416 mm) L x W
Mounting Depth Range 27.77- 29.97"
Included Hardware Cage nuts are provided for square hole racks
Weight Capacity 45 lbs (21 kgs) capacity
Tool-less/Standard Tool-less
Overall Installation Depth 24" (610 mm)
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes
    Compatible with:
  • Mac mini (Mid 2010)
  • Mac mini (Mid 2011)
  • Mac mini (Late 2012)
  • Mac mini (Late 2014)
  • Mac mini (2018)
  • Developer Transition Kit (DTK) with A12Z SoC
