Mini Rack

112-4901

Availability: In stock

Mini Rack

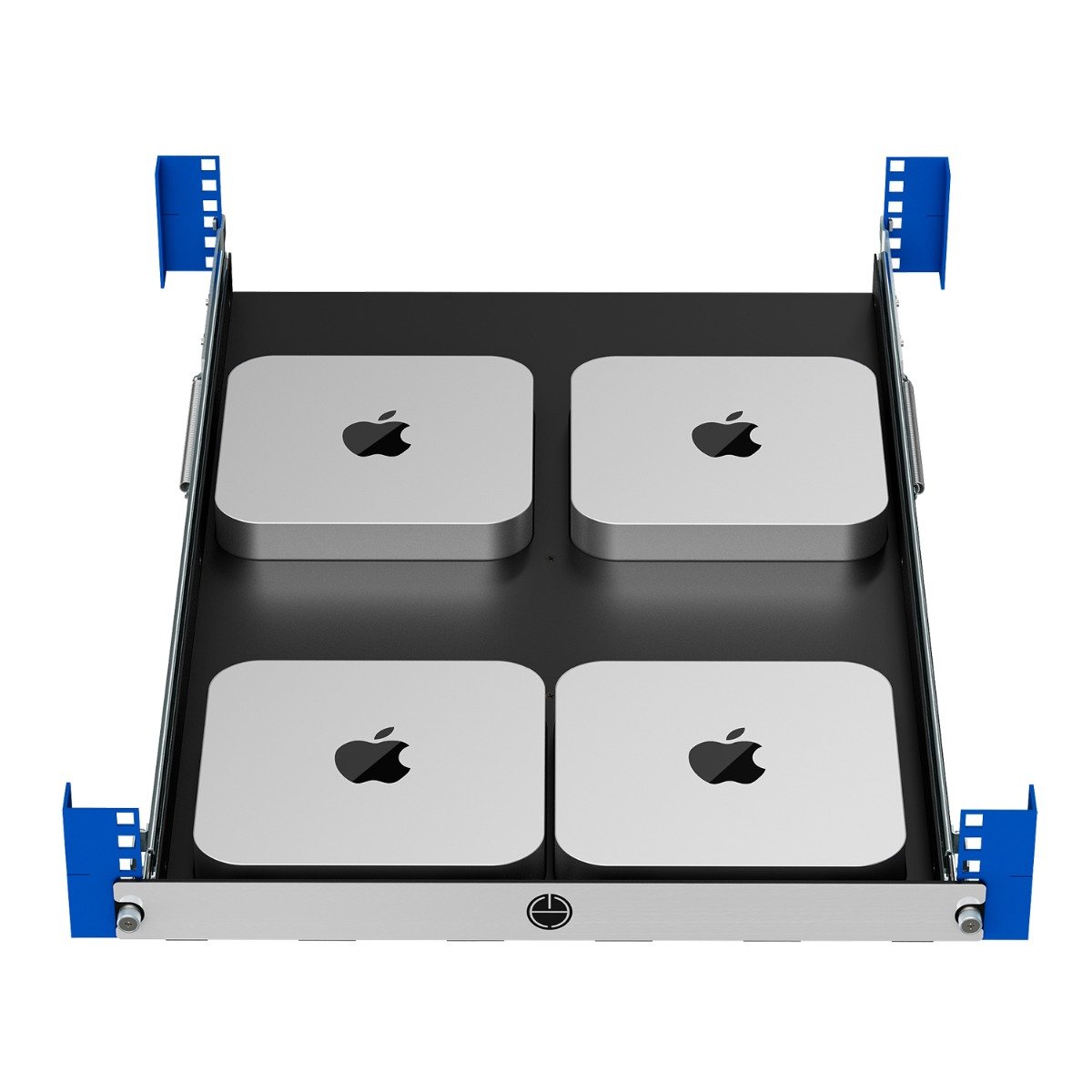

  • Mini Rack™ for Mac Minis
    Mini Rack™ for Mac Minis
    close
  • Mini Rack™-Cable management routing
    Mini Rack™-Cable management routing
    close
  • Mini Rack™-Demonstration of Airflow
    Mini Rack™-Demonstration of Airflow
    close

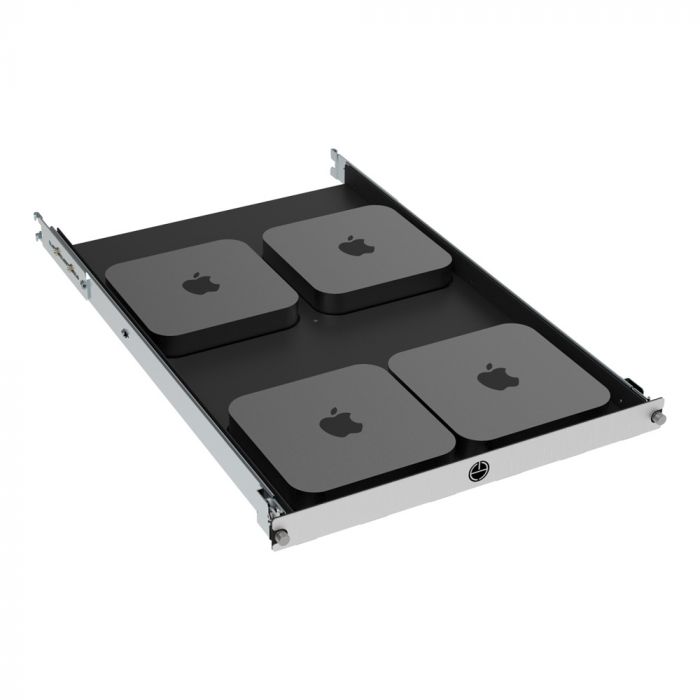

  • Mini Rack™ with Mac Minis
    Mini Rack™ with Mac Minis
    close
  • Mini Rack™-Demonstration of how many Mini Rack™ can be mounted
    Mini Rack™-Demonstration of how many Mini Rack™ can be mounted
    close

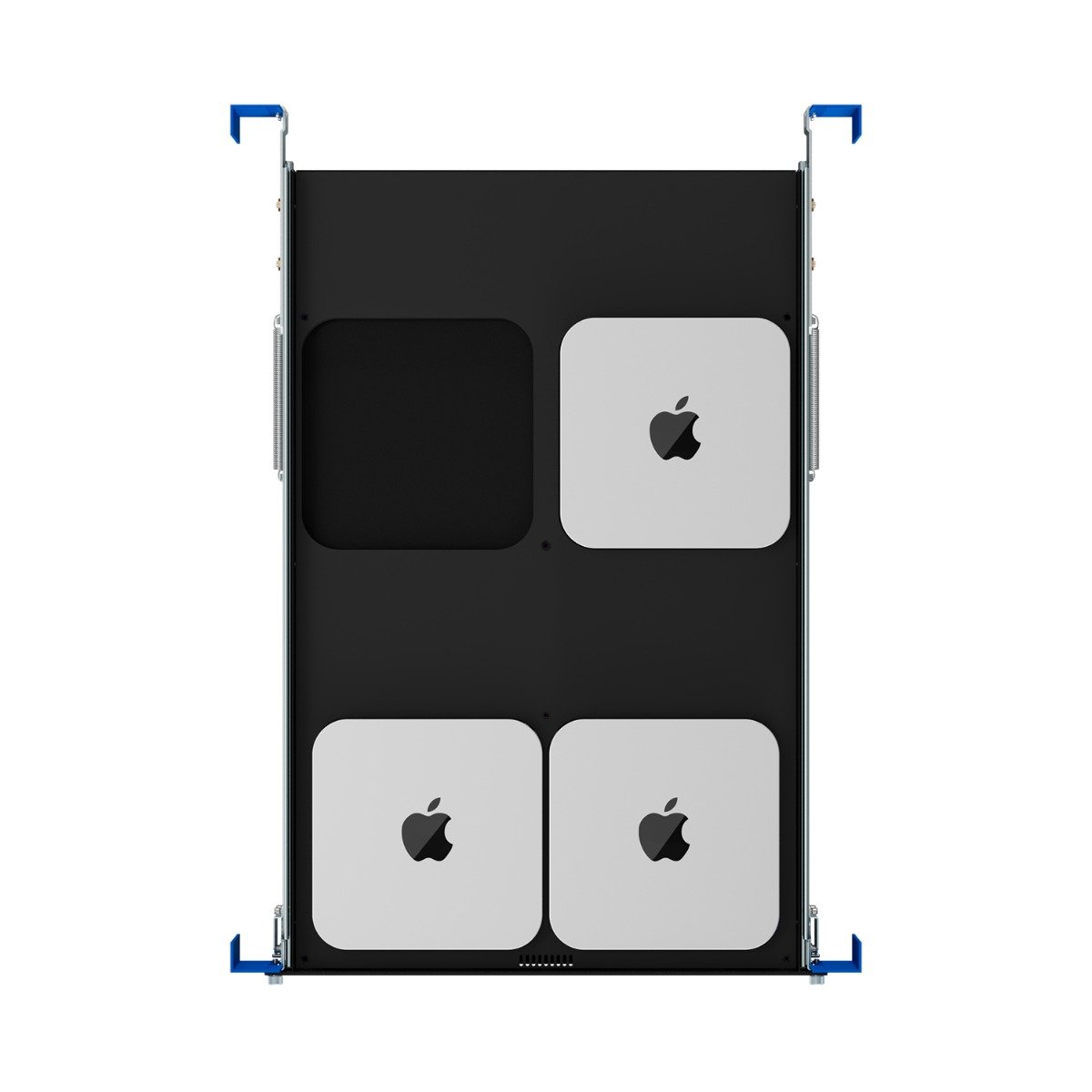

  • Mini Rack™ without Mac Minis
    Mini Rack™ without Mac Minis
    close

Sliding shelf for 4 Mac minis

  • Holds up to 4 Mac minis (2010, 2011, 2012 and 2014)
  • Sliding shelf allows for easier servicing of Mac minis
  • Tool-less design for quick installation
  • Integrated airflow ducting
  • Only requires 1U of space

Fits Any 4 Post Rack

  • Weight Capacity: 45 lbs (21 kgs)
  • Shelf Depth: 17.75" (451mm)
  • Mounting Depth: 27.77- 29.97" (705.5mm - 761.23)
  • Compatible with square hole 19" racks

See "Additional Information" for compatibility.

H-Squared
Rack Solutions Promise
Product Name SKU Price Qty
Mini Rack 112-4901
Excl. VAT: £210.00 Incl. VAT: £252.00
Description

Details

The Mini Rack features a single slide-out Mac mini rack shelf that is capable of mounting up to four Mac minis in a standard 19", 4-post rack enclosure. In less than 1U of space, up to 4 Mac minis can be installed on the mini shelf with no tools necessary.

The design of the airflow ducting with the mini ensures that all Mac minis are getting fresh, cool air from the front of the rack and that the exhaust is vented directly to the rear. Cool air is directed through four openings below the faceplate to the front and rear Mac minis. The cool air is separated by a base that also does double-duty as a Mac mini rack tray. An additional inlet directs cool air above the Mac minis to cool the chassis and force the warmer exhaust air to the rear of the Mac mini rack.

The Mini Rack is compatible with Mac mini (2010, 2011, 2012 and 2014).

NOTE: This information was provided by H-Squared,LLC.
  • Mini Rack Access Cooling
    Cooling
    The design of the airflow ducting with the mini rack ensures that all Mac minis are getting fresh, cool air from the front of the rack and that the exhaust is vented directly to the rear.
  • Tool-less Installation
    Tool-less Installation

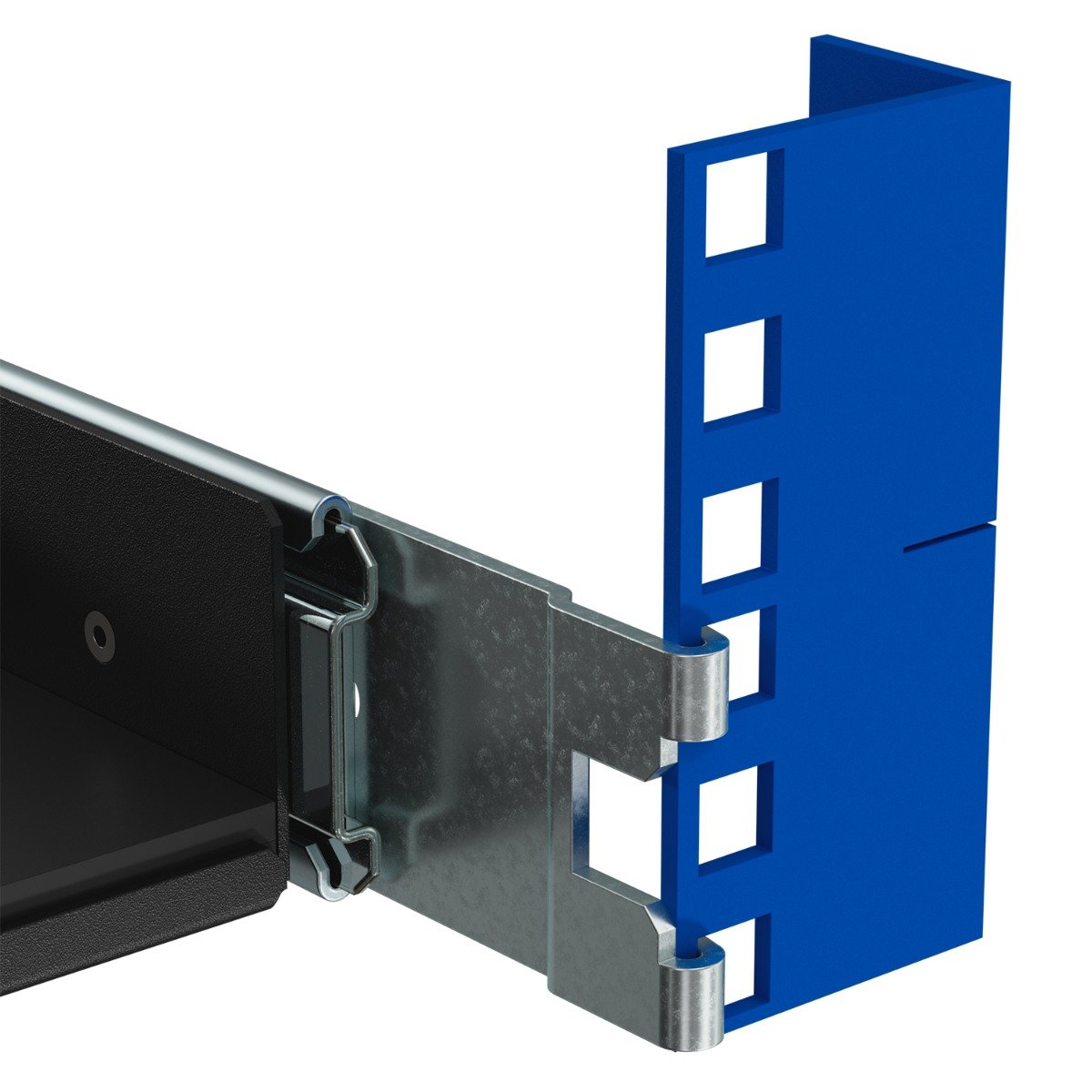

    The Mini rack can be installed in less than 5 minutes with no tools. Each rail securely engages the square hole rack posts and then the shelf is slid into place.
Additional Information

Additional Information

Equipment Depth 17.75" (451mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 17.75 x 16.375" (451 x 416 mm) L x W
Mounting Depth Range 27.77- 29.97"
Included Hardware Cage nuts are provided for square hole racks
Weight Capacity 45 lbs (21 kgs) capacity
Tool-less/Standard Tool-less
Overall Installation Depth 24" (610 mm)
Hole Type Square Hole
RoHS Compliant Yes
Tech Notes
    Compatible with:
  • Mac mini (Mid 2010)
  • Mac mini (Mid 2011)
  • Mac mini (Late 2012)
  • Mac mini (Late 2014)
