MP Rack for Mac Pro

112-5355

Availability: In stock

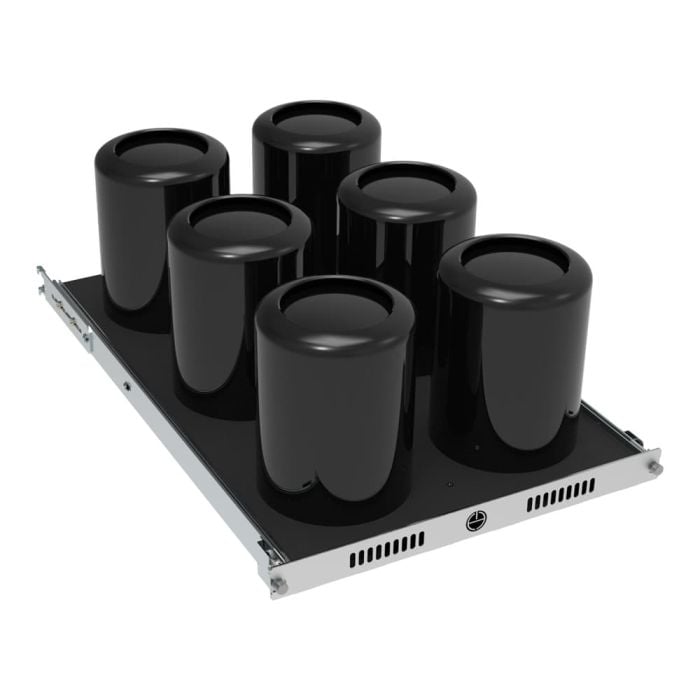

MP Rack for Mac Pro
  • MP Rack
    MP Rack
    close
  • MP Rack - No Mac Pros
    MP Rack - No Mac Pros
    close
  • MP Rack - Front
    MP Rack - Front
    close
  • MP Rack - Rear
    MP Rack - Rear
    close
  • Integrated ventilation
    Integrated ventilation
    close
  • Takes up 6U
    Takes up 6U
    close
  • Mounts up to 6 Mac Pros
    Mounts up to 6 Mac Pros
    close
  • Tooless installation
    Tooless installation
    close
  • MP Rack - Drawing
    MP Rack - Drawing
    close

Sliding Shelf for Mac Pros

  • Mount from 1-6 Mac Pros per 6U
  • Includes adhesive cable tie downs
  • All peripheral ports are accessible
  • Integrated airflow ducting for optimal cooling

Fits any 4 Post Rack

  • Mounting Depth: 27.77- 29.97" (705.5mm - 761.23)
  • Weight Capacity: 252 lbs (115.2 kgs)
  • Compatible with square holes
  • Left and right snap-in rails
  • Shelf Depth: 24" (69 cm)
  • Tool-less installation

See "Additional Information" for compatibility.

H-Squared
Rack Solutions Promise
Product Name SKU Price Qty
MP Rack for Mac Pro 112-5355
Excl. VAT: £220.00 Incl. VAT: £264.00
Description

Details

The MP Rack is a mac pro rack shelf constructed for server clusters, virtual systems, and render farms. It uses no tools to install which makes getting up and running simple. The mac pro rack mount shelf takes up only 1U of space and 6U with Mac Pros mounted. The open design and sliding shelf allows easy access to all peripheral ports and cable management.

The mac pro server rack shelf has a passive ventilation system designed to isolate hot and cold sides. The ventilation system takes in cold air through the front of the shelf's air intake and moves the air to a lower chamber where each Mac Pro's air intake resides. Then the Mac Pro's own cooling system then passes the hot air into the server's hot area where it is then ventilated out.

The mac pro rack can also be used for shelving other equipment if you only have a few Mac Pros to install. By covering the other openings with supplied caps, you now have additional shelf space for hard drives, routers, or whatever your needs may be.

The MP Rack comes with the pull-out shelf, two rails, and a slide-out shelf that holds up to 6 Mac Pros (post-December 2013 models). The mac pro mount also includes loose adhesive-backed cable tie-downs so you can place the tie down points wherever you require.

NOTE: This information was provided by H-Squared, LLC.

  • Mini Rack Access Cooling
    Cooling
    The ventilation system takes in cold air through the front of the shelf's air intake and moves the air to a lower chamber where each Mac Pro's air intake resides. Then the Mac Pro's own cooling system then passes the hot air into the server's hot area where it is then ventilated out.
  • Tool-less Installation
    Tool-less Installation
    The MP rack can be installed in less than 5 minutes with no tools. Each rail securely engages the square hole rack posts and then the shelf is slid into place.
Additional Information

Additional Information

Assembly Notes Tool-less Installation
Equipment Depth 24" (69 cm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 24" x 19" (69cm x 48.2cm) L x W
Finish Black
Mounting Depth Range 27.77- 29.97" (705.5mm - 761.23)
Included Hardware Tool-less design requires no additional hardware
Weight Capacity 252 lbs (115.2 kgs)
Rack Units Mount from 1-6 Mac Pros per 6U
Tool-less/Standard Tool-less
Hole Type Mounts to any 19" 4 Post Rack with Square Holes
Material Powder-coated Steel
RoHS Compliant Yes
Tech Notes Compatible with: Mac Pros (post-December 2013 models)
