Front View

 Front View

Hover to View, Click to Zoom

  • 16U Office Cabinet open
  •  Rear-Cable Management Bar

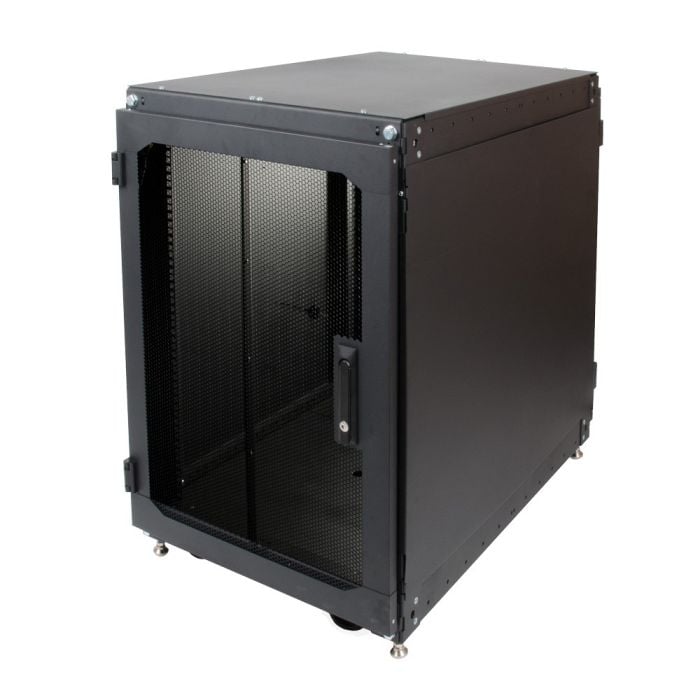

16U Office Cabinet

16U of rackable space

  • Adjustable mounting depth of 6" - 30" (152 - 762 mm)
  • Mounting depth preset to 29"
  • Universal square holes
  • Dell, HP, IBM compatible
  • $199 shipping to continental US only

Secure rack made for servers

  • 80% perforation on doors exceeds OEM air flow requirements
  • Doors and sides are removable, lockable, reversible
  • 1200 lbs (544 kgs) capacity
  • Lock upgrade options available
  • Casters, leveling feet included
  • Cable pass-throughs on bottom of rack

Call to Order


Price as configured: £0.00

Rack Solutions' 16U Office Cabinet securely houses servers and other IT equipment, yet fits in an office enviroment. The 16U Office Cabinet is perfect for small businesses and branch offices with in-house IT departments but no dedicated data center space or network closet. The 16U Office Cabinet includes security features that exceed the requirements of larger data center cabinets. The 16U Office Cabinet fully encloses equipment and has front & rear lockable doors.

16U Office Cabinet - Technical Specifications

Rack Mount Depth
  • Standard Depth: 29" (736 mm)
  • Adjustment Range: 6" to 30" in 1" increments (152 - 762 mm)
  • Internal Space: 37.25" (946 mm)
  • Front Space: 1.5" (38 mm)*
  • Rear Space: 6.75" (171 mm)*

*Measured with installation depth of 29" (736 mm)
Weight Capacity 1200 lbs. (544 kgs)
Rated capacity on leveling feet (without casters)
Rack Outside Dimensions D x W x H
40" x 24" x 36.58" (1016 x 607 x 930 mm)
Included Hardware (2) keys
Hole Type EIA 3/8" square holes
Rack Post Shape L Shape
Rack Ventilation 80% perforation on doors
Rack Doors Removable, lockable and reversible
Rack Sides Removable and lockable
Rack Casters Standard casters with leveling feet
NOTE: Casters are only for positioning an empty rack
They aren't meant to support the rack when it's loaded with equipment
Finish Black, textured powder coat
Assembly Notes Ships fully assembled on a pallet
