Rack Mount Keyboard Tray

 Rack Mount Keyboard Tray

Hover to View, Click to Zoom

  • Side view - Rack Mount Keyboard Tray
  • Rear view - Rack Mount Keyboard Tray

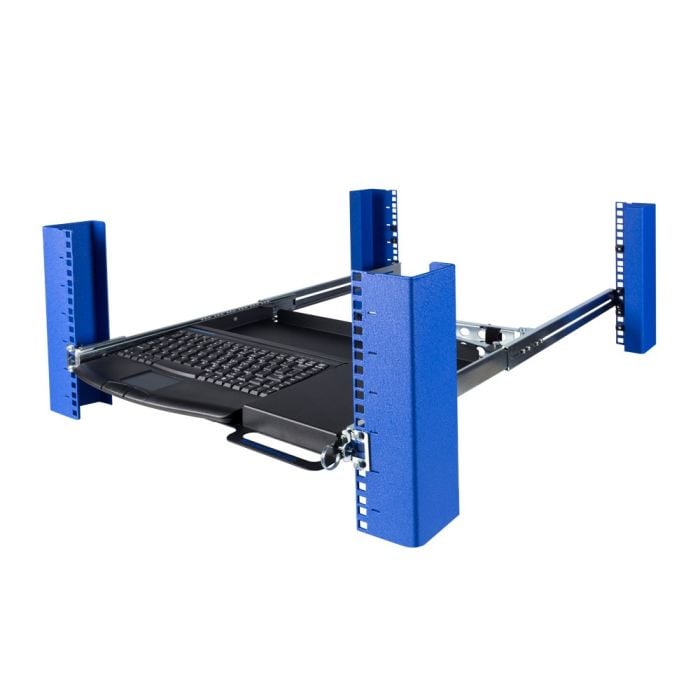

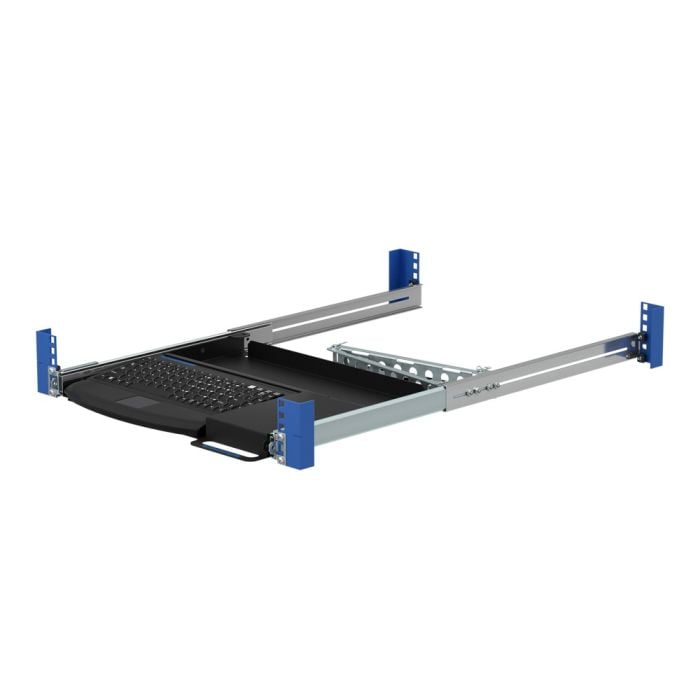

Rack Mount Keyboard Tray

P/N: 1UKYB-126

Keyboard tray for server consoles

  • PS/2, USB rack mount keyboard
  • USB conversion cable included

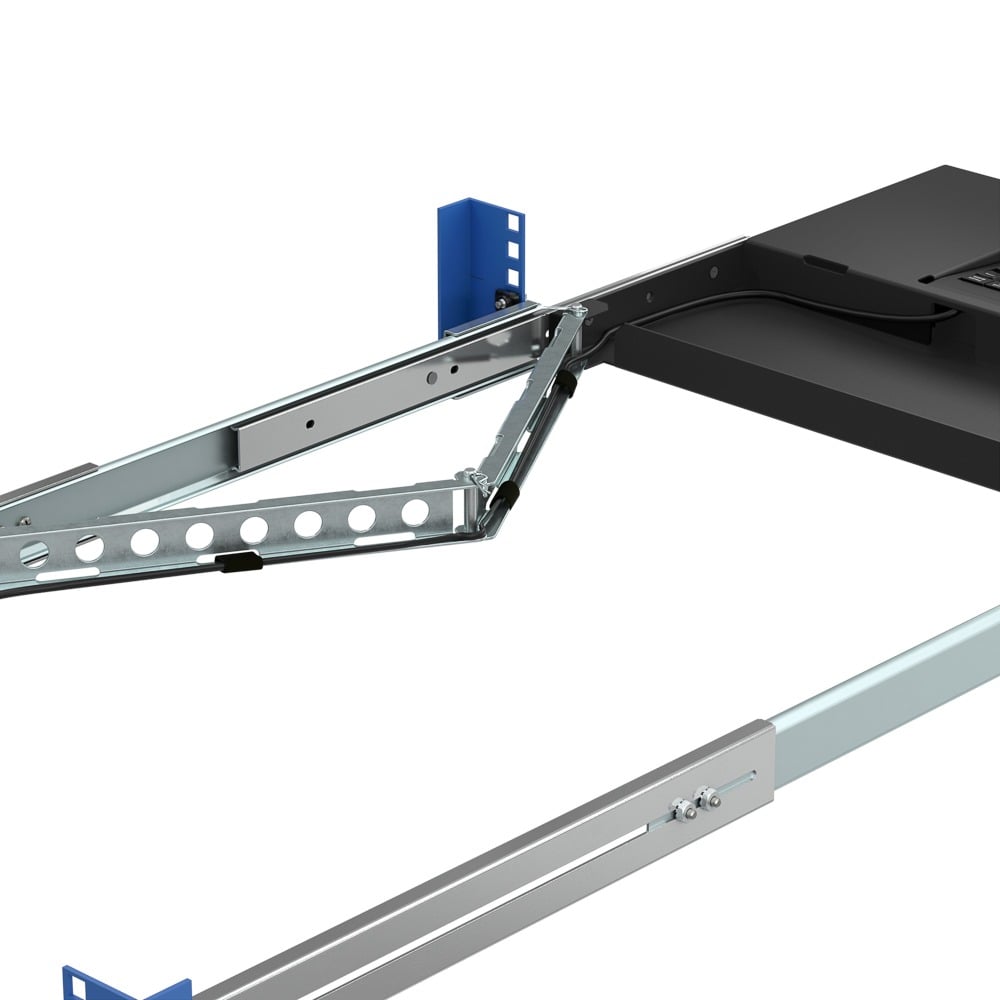

  • Cable management arm, Velcro cable ties
  • Space for mouse, pens, supplies
  • Dell, HP and IBM compatible
NOTE: Belkin or Raritan KVM Switches are not compatible with these products.

Fits any 4Post rack

  • Fits square, round, threaded holes
  • Installation depth from 19 - 30.2" (482 - 767 mm)
  • 1U rackmount keyboard

2Post Mounting

Alternate products

Product Name P/N: Availability Price Qty
Rack Mount Keyboard Tray 1UKYB-126-PS2-UK
In Stock
£145.00

Features

The 1U rack mount keyboard installs into any 19" standard 4Post server rack and occupies the minimum amount of space. The rack mount keyboard will install into server racks with installation depths from 19" - 31" (483 - 787 mm) The rack mount keyboard has 88/89 keys with the functionality of a 104/105 rack mount keyboard device.

Rack Mount Keyboard Tray - Technical Specifications

Included Hardware 10-32 and 12-24 Screws
Cage nuts provided for square hole racks
Assembly Notes Phillips head screwdriver required
Tech Notes
  • Interface: PS/2 (USB conversion dongle is available)
  • Layout: 88/89 keys have the functionality of a 104/105 rack mount keyboard
  • Embedded numeric keypad and 12 dedicated function keys
