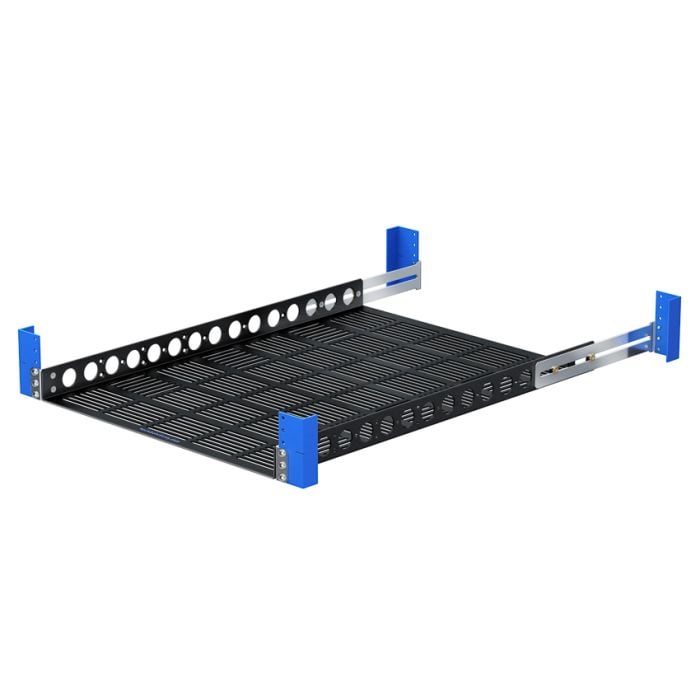

The RackSolutions fixed rack shelf is compatible with 19" server racks from manufacturers such as Dell, HP and IBM. This rack shelf can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 150 lbs can be installed using this rack shelf, when installed in a 4 post rack. The rack shelf is 24" deep 1USHL-108 (There is also a 20" deep option 108-2272) and can be installed in server racks with installation depths up to 30" and in multiple configurations.All needed mounting hardware is included with both versions of the 1u server rack shelf.

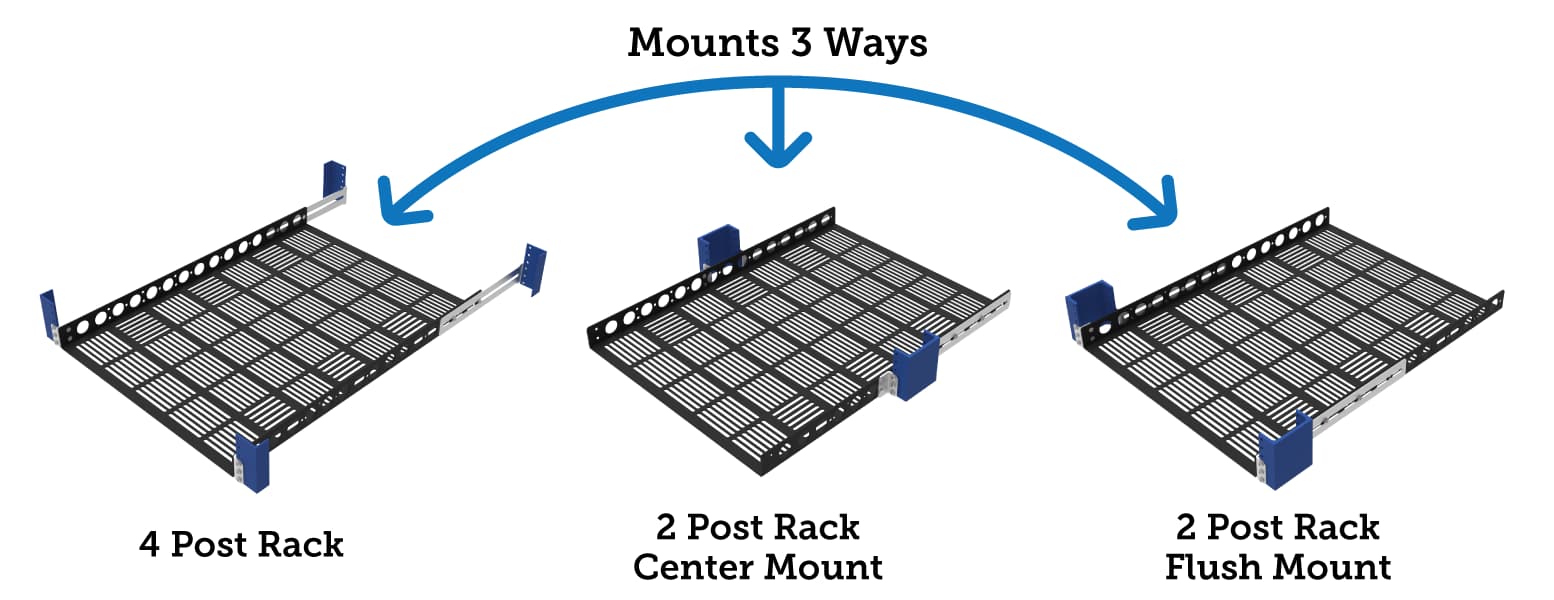

Universal mounting optionsRackSolutions 1U Cantilever 2 Post Rack Shelf is avaliable vented or solid with flanges up or down.

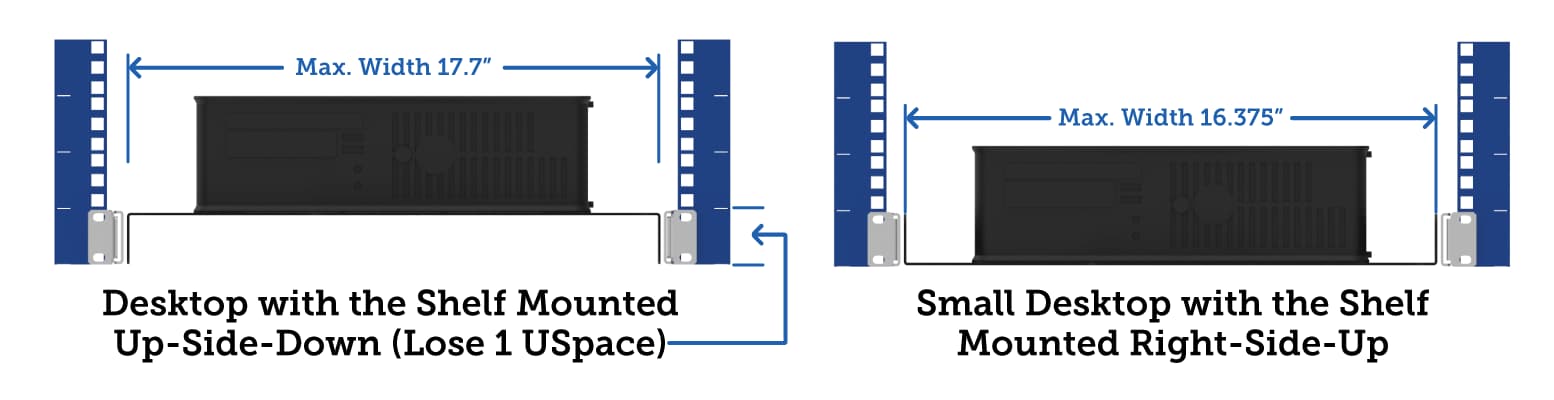

Shelf can mount upside downMount up-side-down for maximum width or right-side-up for minimum U space.
- Additional Information
Dell Part Number 108-2272 - A9368024 1USHL-108 - A7455372 Assembly Notes Partially assembled Equipment Depth Shelf depth is 24.0" (610 mm). Equipment can be deeper Shelf depth is 20.0" (508 mm). Equipment can be deeper Shelf Type Vented Rack Type 2 Post , 4 Post Fixed/Sliding Fixed Shelf Surface Area 1USHL-108 17.1" x 24" (435 x 609.6 mm)
108-2272 17.1" x 20" (435 x 508 mm)
Finish Black, textured, powder coat Mounting Depth Range 11 - 30" (279 - 762 mm) for 24" shelf
11 - 25" for 20" shelf (279 - 635 mm)
Included Hardware 10-32 and 12-24 screws Cage nuts are provided for square hole racks Front brackets: 2 adjustable position front rack flanges Rear slide brackets: 2 adjustable position rear rack flanges Weight Capacity
- This shelf is capable of being installed right side up or upside down, depending on the equipment width.
- 150 lbs (68 kgs) for 4Post mounting
- 100 lbs (45 kgs) for 2Post, center mounting
- 75 lbs (34 kgs) for 2Post, flush mounting
Rack Units 1U Tool-less/Standard Standard Overall Installation Depth Minimum overall depth is 24" 1USHL-108
Minimum overall depth is 20" 108-2772
Maximum overall depth is the same as the rack's mounting depth
Material 14 Gauge U.S. Steel Amazon ASIN 108-2272 = B00UVK8RPO 1USHL-108 = B00UVKE3V6 TAA Compliant Yes RoHS Compliant Yes
