Reducer Brackets

Availability: In stock

Reducer Brackets
  • 23" to 19" Joggled Reducer Bracket
    23" to 19" Joggled Reducer Bracket
    close

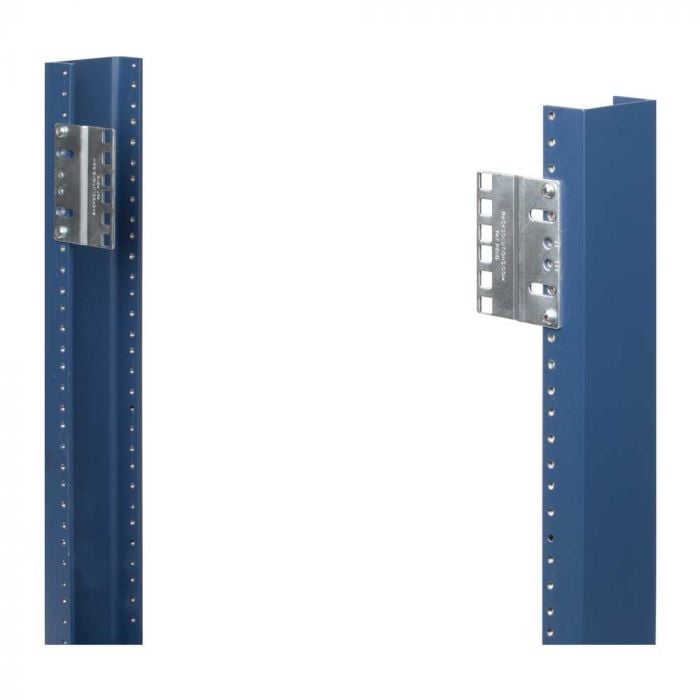

  • 23" to 19" Joggled Reducer Bracket mounted on a rack
    23" to 19" Joggled Reducer Bracket mounted on a rack
    close
  • Two, 23" to 19" Joggled Reducer Brackets mounted on a rack
    Two, 23" to 19" Joggled Reducer Brackets mounted on a rack
    close
  • Two, 23" to 19" Joggled Reducer Brackets mounted on a rack
    Two, 23" to 19" Joggled Reducer Brackets mounted on a rack
    close
  • Two, 24" to 19" Joggled Reducer Brackets mounted on a rack
    Two, 24" to 19" Joggled Reducer Brackets mounted on a rack
    close
  • 24" to 19" Joggled Reducer Bracket
    24" to 19" Joggled Reducer Bracket
    close
  • Two, 24" to 19" Joggled Reducer Brackets mounted on a rack
    Two, 24" to 19" Joggled Reducer Brackets mounted on a rack
    close

Fits any 4 Post, 2 Post racks

  • Square, round holes
  • Dell, HP, IBM, Apple compatible

Convert 19" (483 mm) equipment to fit
23 - 24" (584 - 609 mm) racks

  • Does not change mounting depth of rack
  • "Joggled" bracket type keeps mounting flush with the frame
  • Capacity 50 lbs (22.7 kgs)
Rack Solutions Promise
Product Name SKU Price Qty
2U, 23" to 19" Joggled Reducer Brackets (pair) 2UBRK-23J-PAIR
Excl. VAT: £14.00 Incl. VAT: £16.80
2U, 24" to 19" Joggled Reducer Brackets (pair) 2UBRK-24J-PAIR
Excl. VAT: £15.00 Incl. VAT: £18.00
Description

Details

RackSolutions' reducer brackets allow rack mount equipment designed for 19" (483 mm) racks to be properly installed into 24" (609 mm) and 23" (584 mm) racks. The 24" (609 mm) and 23" - 19" (584 mm - 483 mm) reducer bracket provides EIA-D standard square holes for installing OEM rails into 24" (609 mm) and 23" (584 mm) round-holed racks. This "joggled" type bracket has a slight bend in the material that keeps whatever you are mounting flush with the server frame, unlike flat brackets which cause items to stick out slightly.

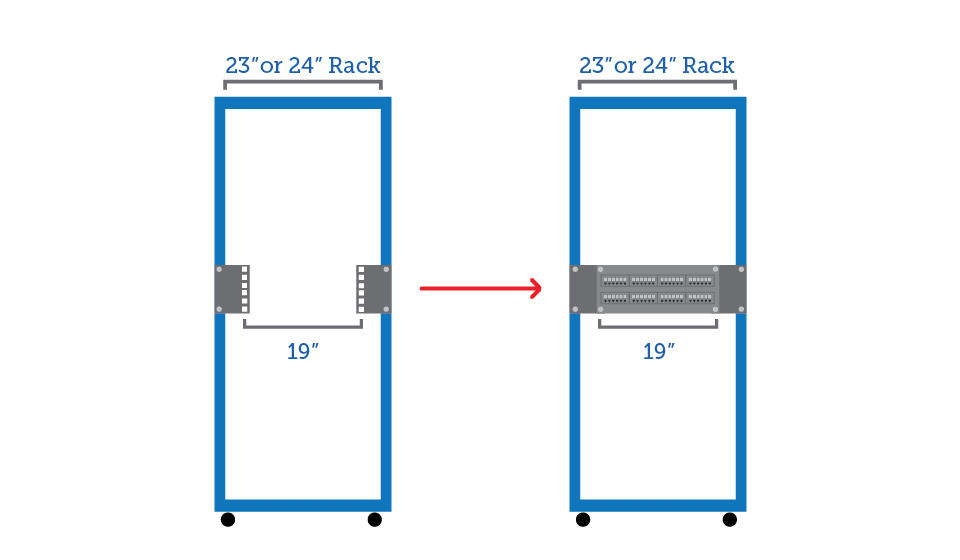

  • RackSolutions Reducer Bracket
    RS-Reducer Bracket
    The RackSolutions Reducer bracket allows 19" equipment to be mounted in 23" or 24" racks.
  • 19

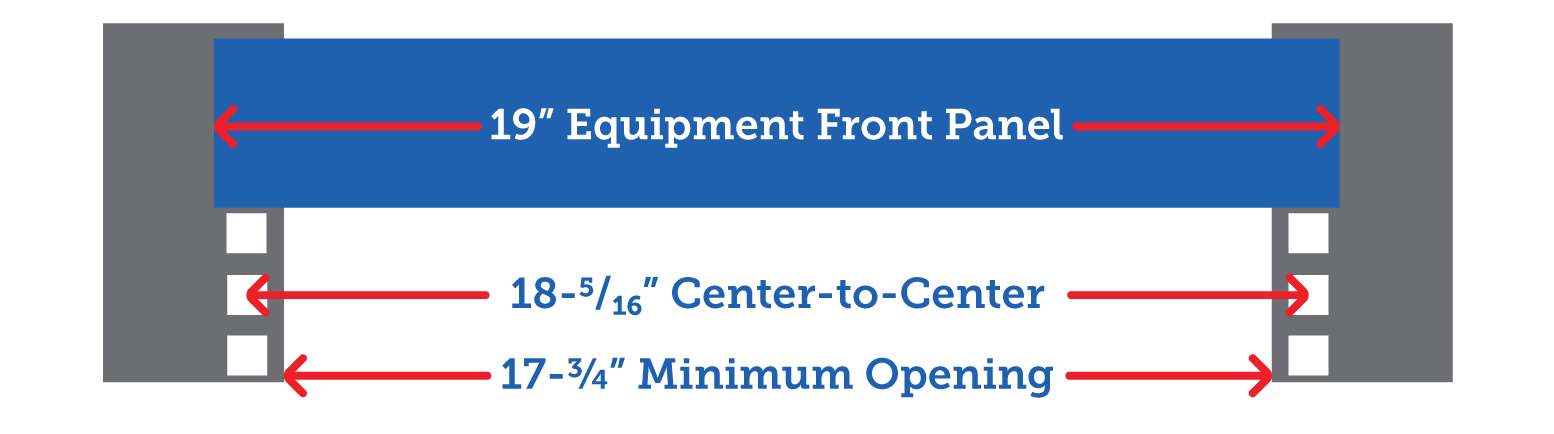

    Why 19" conversion
    19" server rack is the standard. Most OEMs made equipment that mounts in 19" racks. Some 2 post racks can be 23" or 24" wide and our brackets will allow for 19" equipment to be mounted normally.
Additional Information

Additional Information

Tech Notes 50 lb (22.7 kgs) weight capacity per rack unit
RoHS Compliant Yes
Hole Type Compatible with all EIA-D standard round hole racks or square hole racks with cage nuts
