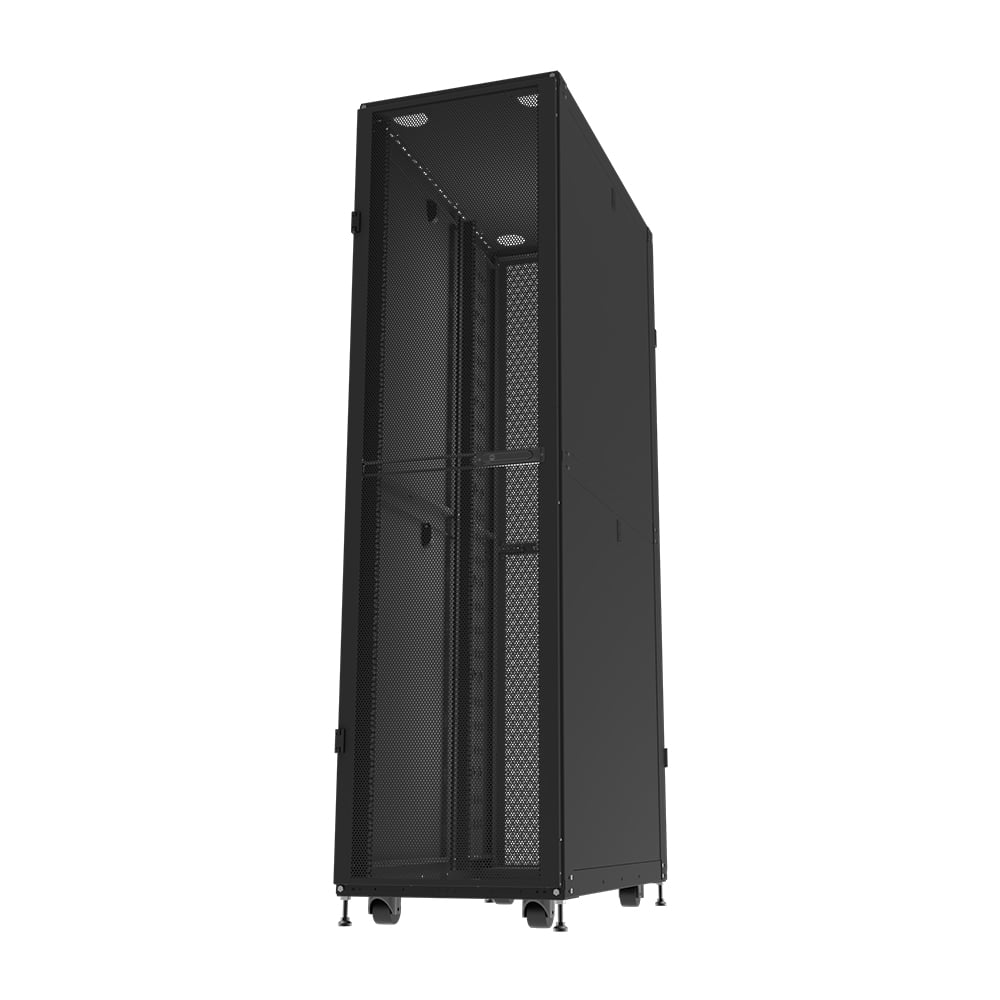

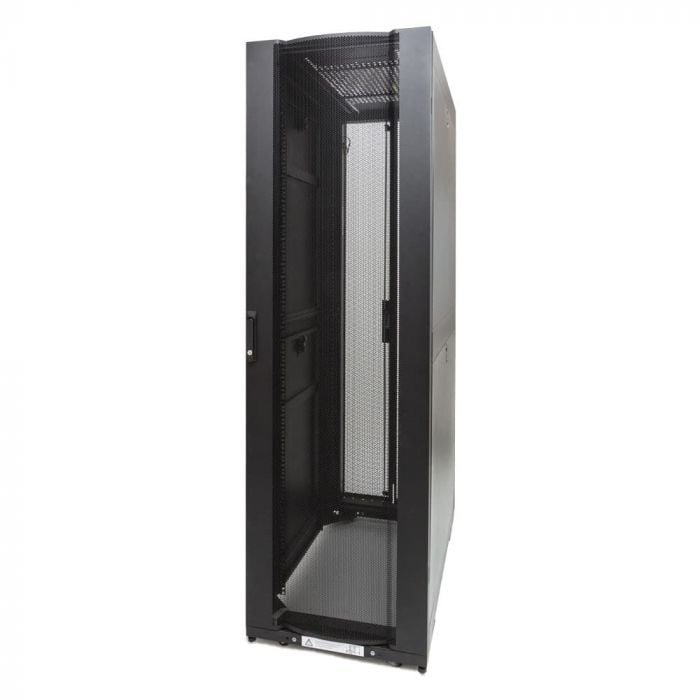

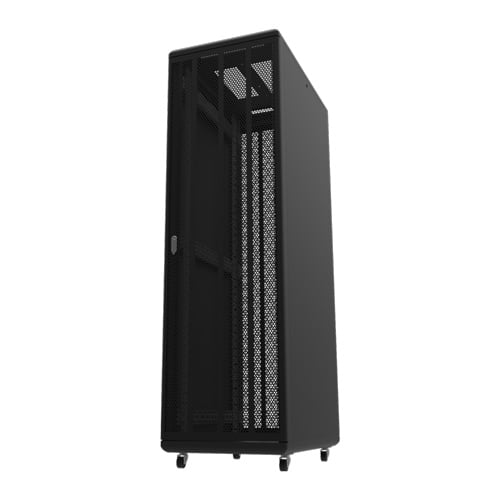

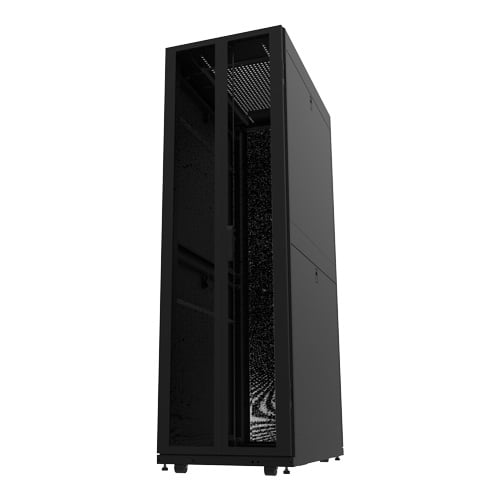

Data Centre Cabinet

RACK 151-SW

Availability: In stock

Data Centre Cabinet

42U/48U of rackable space

  • Adjustable mounting depth of 152 mm - 770 mm
  • Overall rack depth 1070 mm
  • Universal square holes
  • Dell, HP, IBM compatible

Designed for Data Centres

  • Doors and sides are removable, lockable
  • 3000 lbs. (1360 kgs) capacity
  • Casters, leveling feet included
  • Cable pass-throughs in top & bottom of rack
  • (2) Vertical cable management bars included

Alternate products

  • Open Frame Rack (24U - 50U)
  • Under-Desk Rack (12U)
  • Transport Rack (6U - 8U)
  • Rack Solutions Promise
    5 Day Economy Service, palletised delivery to goods in. (Two man delivery inside the building to reception or goods in warehouse) UK DELIVERY ONLY   +£45.00 (+£54.00 Incl. VAT) RACK-151-FRT

    * Required Fields

    From: Excl. VAT: £645.00 Incl. VAT: £774.00

    To: Excl. VAT: £1,020.00 Incl. VAT £1,224.00

    Price as configured: Excl. VAT: £0.00 Incl. VAT: £0.00

    Price as configured: Excl. VAT: £0.00 Incl. VAT: £0.00

    Description

    Details

    Features

    The RackSolutions Data Centre Cabinets are compatible with Dell, HP and IBM servers and have a footprint that is the same size as a European data center tile (600 mm). The 1070 mm wide rack is also avaliable for a network cabinet. Our cabinets are the EIA standard 19" server rack. The sizes are available in 42U or 48U to get the most height out of your data center space. All of these rack options come standard with 2 vertical cable management bars that are the same height of the rack.

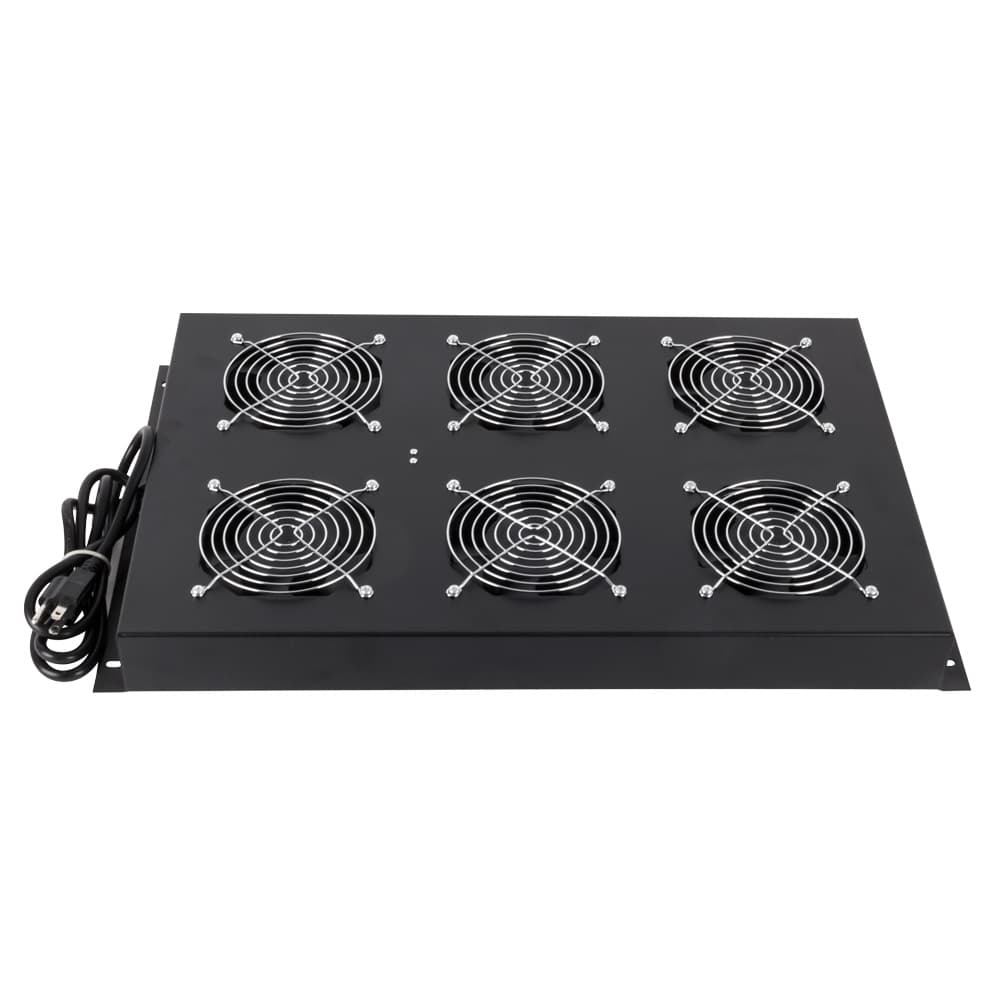

    Fantray

    The fan tray is powered with a standard 110 power cable that may be plugged into a power strip or PDU.



    Vertical Cable Management Tray

    These trays run vertically from the top to the bottom of the server cabinet and allow you to route cables to data switches or UPS devices in a structured manner.

    Additional Information

    Additional Information

    Product Line RACK 151-SW
    Rack Type 4 Post Rack, Enclosed
    Hole Type EIA 3/8" square holes
    Rack Internal Width EIA 19" Standard Rack
    Rack Mount Depth
    • 1070 mm rack: Adjustable mounting depth up to 890 mm (35")
    • 1200 mm rack: Adjustable mounting depth up to 1020 mm (40")
    Included Hardware (2) keys
    Finish Black textured powder coat
    Rack Post Shape L Shape
    Assembly Notes Ships fully assembled on a pallet
    Rack Doors Removable, lockable and reversible
    Rack Outside Dimensions 1070 mm x 600 mm D x W Weight: 260 lbs(151SW-4560)
    1070 mm x 600 mm D x W Weight: 363 lbs(151SW-4563)
    1200 mm x 600 mm D x W Weight: 380 lbs (151SW-4565)
    1200 mm x 600 mm D x W Weight: 426 lbs(151SW-4566)
    1200 mm x 800 mm D x W Weight: 470 lbs (151SW-4567)

    Height
    • 48U = 2224 mm (87.5 ")
    • 42U = 1995 mm (78.5 ")
    • 24U = 1155 mm (45.5 ")
    Rack Casters Standard casters with leveling feet
    NOTE: Casters are only for positioning an empty rack
    Rack Sides Removable and lockable
    Amazon ASIN 151SW-4563 = B01KAIBX1Q
    151SW-4565 = B01KAIZPAG
    151SW-4566 = B01KAI0BJG
    RoHS Compliant Yes
    TAA Compliant No
