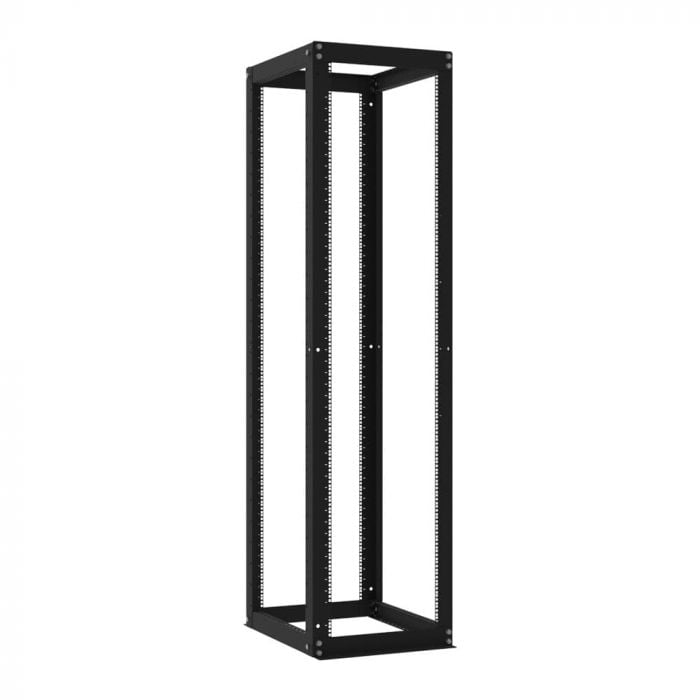

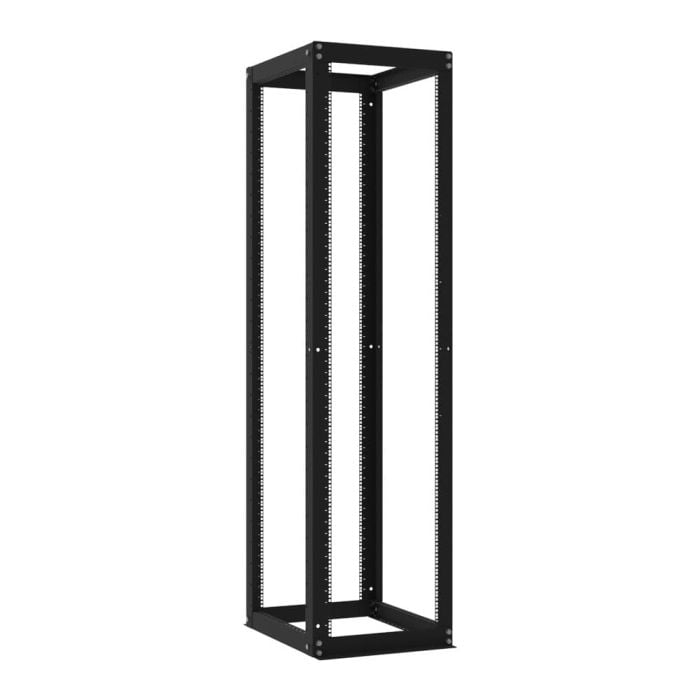

Open Frame Server Racks

Availability: In stock

Open Frame Server Racks
  • 24U - Open Frame Server Rack
    24U - Open Frame Server Rack
    close
  • 30U - Open Frame Server Rack
    30U - Open Frame Server Rack
    close
  • 36U - Open Frame Server Rack
    36U - Open Frame Server Rack
    close
  • 44U - Open Frame Server Rack
    44U - Open Frame Server Rack
    close
  • 50U - Open Frame Server Rack
    50U - Open Frame Server Rack
    close
  • Base, cable organizer, power strip support - Open Frame Server Rack
    Base, cable organizer, power strip support - Open Frame Server Rack
    close
  • Bolted corner closeup - Open Frame Server Rack
    Bolted corner closeup - Open Frame Server Rack
    close
  • Two, 50U Server racks bayed together with two, 55U server racks
    Two, 50U Server racks bayed together with two, 55U server racks
    close
  • Base of two, Open Frame Server Racks and floor grates
    Base of two, Open Frame Server Racks and floor grates
    close
  • Side view - Open Frame Rack, filled with servers and equipment
    Side view - Open Frame Rack, filled with servers and equipment
    close
  • Two, 50U Server Racks bayed together with two, 55U Server Racks
    Two, 50U Server Racks bayed together with two, 55U Server Racks
    close
  • Example of 3, Open Frame Server Racks in use - front view
    Example of 3, Open Frame Server Racks in use - front view
    close
  • Example of 3, Open Frame Server Racks in use - view of top/rear
    Example of 3, Open Frame Server Racks in use - view of top/rear
    close
  • Optional Caster kit
    Optional Caster kit
    close

Rack height 24U - 50U

  • Universal square holes, cage nuts included
  • Dell, HP, IBM, Cisco compatible
  • 50U, 44U, 36U, 30U, 24U
  • 3000 lbs (1360 kgs) capacity
  • Meets EIA, 19" standards

Optimizes cooling and makes wiring easy

  • Vertical cable organizer (sold separately with 50U)
  • Streamlined support for power strips, PDUs
  • Ships UPS -- Not expensive, non palletized freight
  • Quick and easy assembly

Designed for data centers

  • 24" width is perfect for data centers
  • Flush floor mount spreads load on floor tiles
  • Optional side & filler panels
  • Optional top panel with cable pass-throughs

Rack accessories

  • Rack tops, caster kits, side panels & power strips may be purchased separately. Follow links in each accessory section below for offerings.

Applications

  • High density installations
  • Cloud & virtualization providers

Alternate racks

Rack Solutions Promise

* Required Fields

From: Excl. VAT: £189.10 Incl. VAT: £226.92

To: Excl. VAT: £1,199.09 Incl. VAT £1,438.91

Price as configured: Excl. VAT: £0.00 Incl. VAT: £0.00

Price as configured: Excl. VAT: £0.00 Incl. VAT: £0.00

Description

Details

Data Center Rack

These server racks meet all EIA standards. These server racks are compatible with all the major OEM's such as Dell, HP, IBM and Cisco. The server racks are available in heights from 24U to 50U and are compatible with overhead cable trays from B-Line and other manufacturers. Read more about Open Frame Racks.

RackSolutions® is proud to be a leading provider of server racks and equipment for SoftLayer®.

Features

RackSolutions’ Open Frame Rack provides users with a versatile, customisable solution engineered to meet a diverse set of rack mounting needs. Ranging in heights from 24U to 50U, this rack optimises cooling and promotes easy wiring, making it ideal for high density installations. It is perfect for data centre deployment. It includes a vertical cable organiser (sold separately with 50U), as well as support for power strips, PDUs and for APC tool-less mounting. This rack features square holes, works perfectly with tool-less rails, and it’s quick and easy to assemble.The Open Frame Rack is compatible with 19” equipment developed by all of the leading OEMs including: Dell, HP, IBM, and Super Micro. The Open Frame Server Rack also features a number of new design attributes built specifically for data center deployment. The bottom of the open case has flush floor mounts that spread the rack's payload evenly over the floor. It can also be ordered with optional side and top panels. The top panel comes with or without holes for cable pass-through.


Caster Kit Option

Provides convenient rack access in tight spaces. The maximum capacity on casters is 1200 lbs (544 kg).
For safety reasons, this Caster Kit is only recommended on racks heights of 30U or less. See installation instructions for more details.

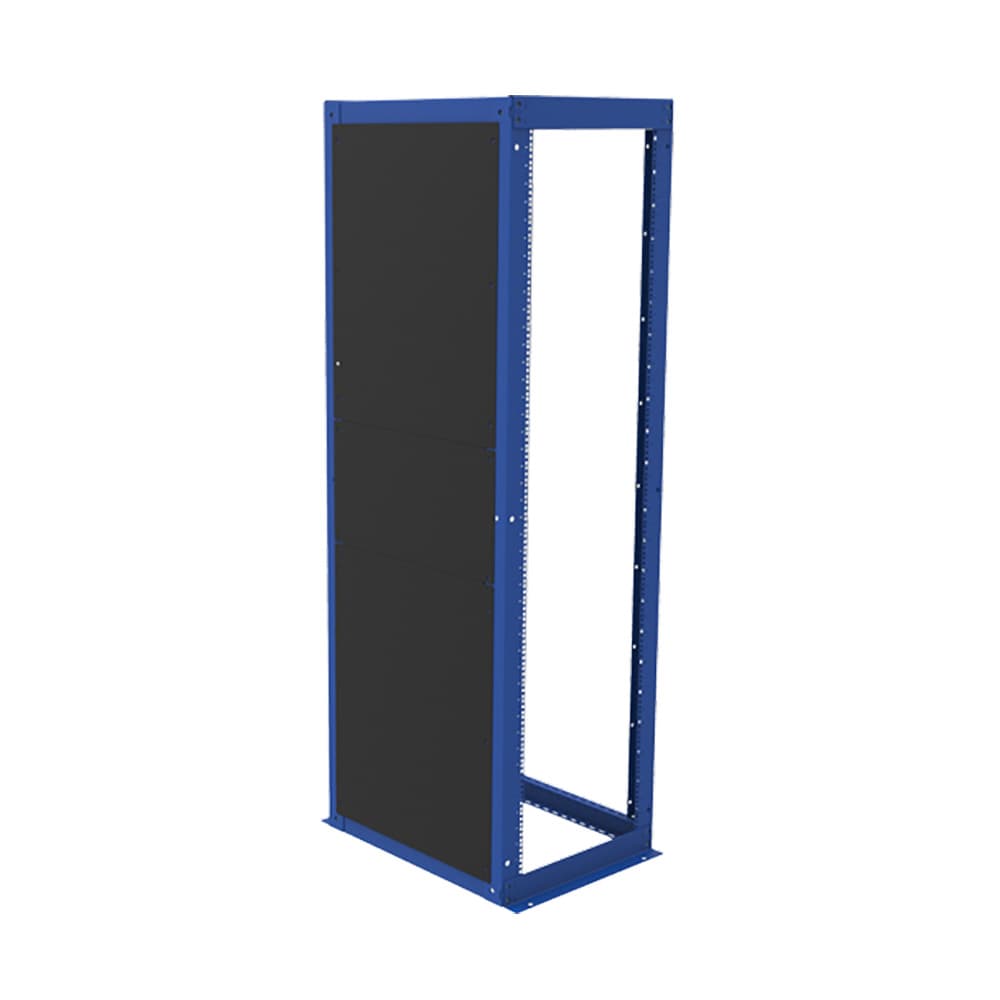

Rack Side Panels

These tool-less, non-locking, Side Panel Kits come in 16U, 24U, 30U, 36U, 44U, 50U, 55U and 58U sizes. Each side panel kit is broken into 1, 2 or 3 sections (depending on U height) to make installation easy. 58U, 55U, 50U and 44U rack panels are broken into 3 sections per side. 36U, 30U and 24U rack panels are broken into 2 sections per side. 16U has 1 section per side. You must order 2 side panel kits per rack if you wish to install side panels on the left and right side of the rack. Open Frame Rack-111 side panels are easy to install.


Rack Top Options

Close out the top of this rack with one of four Rack Top options. Choose from black or galvanized Rack Tops with or without cable pass-throughs. These are useful on short racks for providing additional storage space. Hardware included.

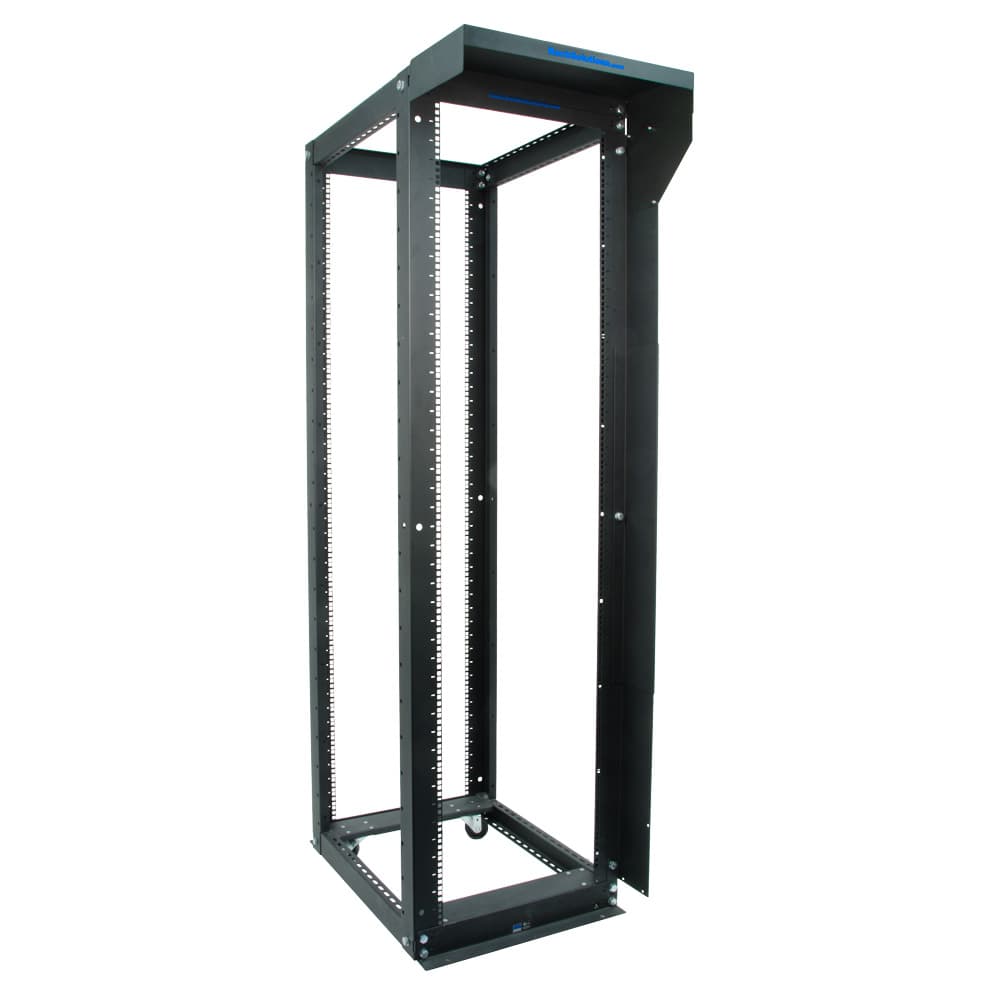

Vertical Cable Organizers

One Vertical Cable Organizer is included with each rack (sold separately with 50U or 55U). There are eight (8) locations to mount this vertical organizer (front/rear, right/left, and inside/outside). The organizer supports up to four (4) power strips. Holes included for cable pass-thru. Multiple wire tie points. Management bar is shared with adjacent racks.See an example of vertical cable organizers in use.


Baying Kit

1 Baying Kit is required to join 2 of these racks together. 2 Baying Kits will join 3 racks together and so forth. Every rack is designed to be coupled to one-another (same height rack).


Installation Examples

Note: Above is a great example of three, Open Frame Racks bayed together in a server room.



Note: Above is an example of two, 50U, Open Frame Server Racks bayed together with two, 55U Server Racks in a data center.


Customer Feedback

"Please pass on to everyone at RackSolutions how pleased we are with the three 44U racks, shelving and rails we purchased from RackSolutions. I've been in this business a lot of years, put together many rack systems, and never have I had such an easy experience. Everything fits perfectly, plenty of hardware, easily understandable instructions, and the sliding shelving is great for all our older non-rackable servers. Our company has several different kinds of servers...Dell, Compaq, IBM, and HP, and everything fits great in your racks. We just wanted to say we would recommend your product for anyone looking for a new rack solution for their network." - M. Morris, Systems Administrator -

"You guys ROCK. I bought a 4-post rack for a client through a local reseller--am amazed at the quality of materials and the amount of care and forethought put into the design. It's a real pleasure these days to see a beautifully-made product, delivered on time, carefully packaged, with clear, simple assembly instructions. And it really made my day to see the included masonry fasteners AND the drill bit. Keep it up!" - Brian K. IT Consultant -

Additional Information

Additional Information

Rack Type 4 Post Rack, Open Frame
Rack Internal Width EIA 19" Standard Rack
Hole Type EIA 3/8" (9.5 mm) square hole
Tech Notes UL certified
Included Hardware (40) 12-24 cage nuts
(40) 3/8" 12-24 screws
(4) Masonry anchors
(1) Masonry drill bit
Finish Black, textured powder coat
Rack Post Shape J-Shape
Assembly Notes 3/4" (19 mm) wrench required
Assembly time is approximately 10 minutes
Rack Outside Dimensions Width = 24" (609 mm)
Depth = depth kit you select (28.875", 24" or 20") plus 7" for the vertical cable bar
Example: 28.875" + 7" = 35.875" depth

Height
5U = 15" (381 mm)
16U = 34" (863 mm)
24U = 48" (1219 mm)
30U = 58.5" (1485 mm)
36U = 69" (1752 mm)
44U = 83" (2108 mm)
50U = 93.5" (2375 mm)
52U = 97" (2463 mm)
55U = 103" (2616 mm)
58U = 108" (2743 mm)
Rack Casters Optional Caster Kit with a weight capacity of 1200 lbs (544 kg). 111-1731
Rack Mount Depth 28.875" (733 mm)
24" (610 mm)
20" depth (508 mm)
RoHS Compliant Yes
Dimensions Rack Height Options 5U,16U, 24U, 30U, 36U, 44U, 50U, 55U, 58U
