Universal Wall Mount

Availability: In stock

Universal Wall Mount
  • Front view - 104-2109 shown with Optiplex 960
    Front view - 104-2109 shown with Optiplex 960
    close
  • Front view - 104-2109 shown with Optiplex 750
    Front view - 104-2109 shown with Optiplex 750
    close
  • Front view - 104-2109
    Front view - 104-2109
    close
  • Top view - 104-2109
    Top view - 104-2109
    close
  • Rear view - 104-2109
    Rear view - 104-2109
    close
  • Bottom view - 104-2109
    Bottom view - 104-2109
    close
  • 104-2109 Adjustable width from 2.35" - 3.75"
    104-2109 Adjustable width from 2.35" - 3.75"
    close

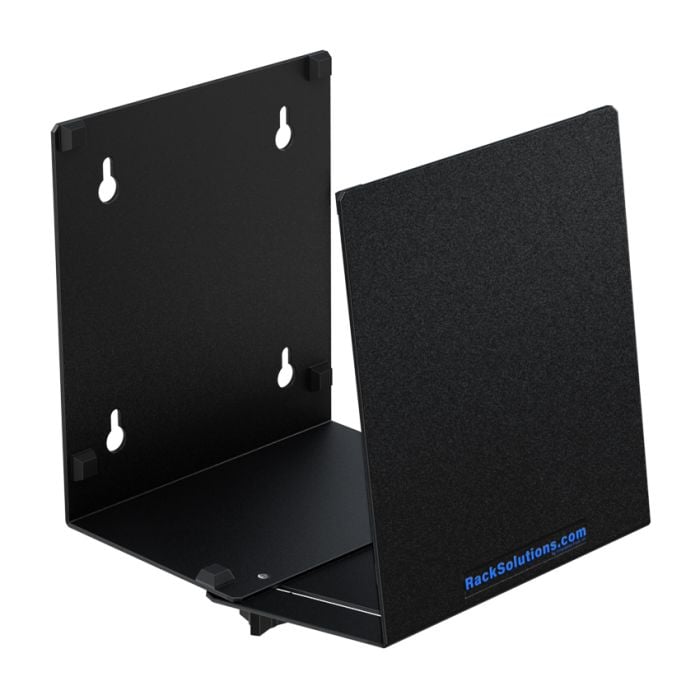

  • Front View - 104-4010
    Front View - 104-4010
    close
  • Front View extended- 104-4010
    Front View extended- 104-4010
    close
  • Wall Mounts extended 104-2109 (Left) 104-4010 (Right)
    Wall Mounts extended 104-2109 (Left) 104-4010 (Right)
    close
  • Front View extended - 104-4010
    Front View extended - 104-4010
    close

Wall mount a PC, UPS device or other equipment

  • 104-2109 :Adjustable width: 2.35" - 3.75"
  • 104-4010 :Adjustable width: 4.00" - 8.00"
  • 104-2109-Weight capacity: 35 lbs
  • 104-4010-Weight capacity: 40 lbs
  • Easily adjust knobs with fingers to tighten or loosen

Mount device on a wall to keep it out of the way

  • May also mount under a desk (must be positioned vertically)
  • Mounting hardware included
  • Mounted device may be removed easily when needed
Rack Solutions Promise

Two Wall Mount Sizes Available

Product Name SKU Price Qty
Universal Wall Mount (2.35" to 3.75") 104-2109
Excl. VAT: £30.00 Incl. VAT: £36.00
Universal Wall Mount (4.00" to 8.00") 104-4010
Excl. VAT: £35.00 Incl. VAT: £42.00
Description

Details

RackSolutions' Universal Wall Mount gives users the ability to easily mount a computer and many other devices to a wall. Designed with versatility in mind, the Universal Wall Mount satisfies diverse mounting needs. It is compatible with computers from leading manufacturers like Dell small form factors, HP and IBM as well as small tower universal power supplies. The width of the 104-2109 may be adjusted to a minimum of 2.35" and a maximum of 3.75". The adjustable width for the 104-4010 is 4.00" - 8.00". The mount's ability to meet the needs of a variety of sizes and form factors without the expense of stability. Maximum weight capacity for the Universal Wall Mount is rated at 35 and 40 lbs. For installation, all of the necessary hardware to safely attach the platform to the wall and mount any compatible computer or device is included.

Additional Information

Additional Information

Assembly Notes See Installation Instructions in the Documentation section above
Weight Capacity 104-2109 35 lbs.
104-4010 40 lbs.
Dimensions Width:
104-2109: 2.35" - 3.75" (59.7 mm - 95.2 mm)
104-4010: 4.00" - 8.00" (102 mm - 203 mm)
Rack Type Open Frame, Wall Mount
Finish Black, powder coated finish
RoHS Compliant Yes
Included Hardware Assembly Components
(1) Wall Bracket
(1) Clamp Bracket
(2) Adjustment Knobs

Wall Mount Hardware Package
(4) Pan Head Screws
(4) Anchors
