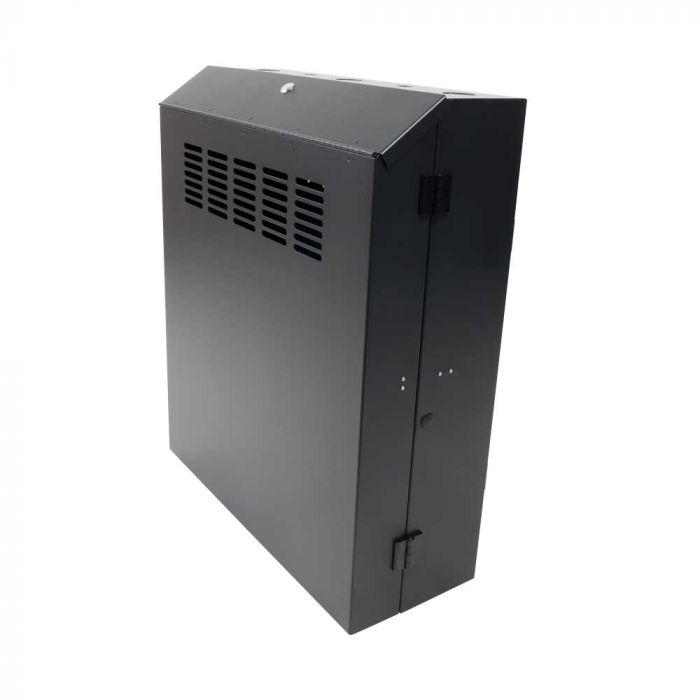

5U Secure Vertical Wall Mounts with Hinged Doors
5U of Secure Rackable Space
- Top cover and rack door are lockable
- Vented bottom
- Vented locking hinged cabinet door with latch
- 12 punch outs for routing cables
- Mount (2) 120mm fans to vented bottom for efficient airflow
Mounts 19" equipment
- 180-5281 23” rack - overall length is 29.7”
- 180-5282 30” rack - overall length is 36.7”
- 2U of extra rack space designed for patch panels
- Adjustable vertical mounting bracket
- Load capacity: 150 lbs
- Threaded holes for M6 or 12-24 screws
See "Additional Information" for Tech Specs.
Our secure 5U vertical wall mount rack is a perfect place to secure small amounts of rack equipment, extending less than 10 inches from the wall and saving space. Rack mount equipment such as servers, patch panels, UPS systems, and network switches are compatible with this vertical wall mount rack. The vertical rack features a vented hinged door and hinged top panel, both featuring lockable security and accessibility to equipment. The tab on the locking hinged cabinet door must be pressed down to avoid damaging the equipment.
There is an additional 2U mounting bracket, great for mounting patch panels up to 2.5 inches deep. The vented bottom of the server rack allows 2 standard 120mm fans to be mounted. The vertical wall solution is available in 23" and 30" vertical mount depths, the overall length of the racks are 29.7" and 36.7". The maximum weight capacity is up to 150 lbs of 19" equipment. The 5U vertical wall mount rack enclosure is PCI DSS compliant and ships fully assembled.Security and Accessibility:
The top panel cover and front rack door are both separately lockable for when you need varying security access.
Rack Mount Equipment Without Losing Floor Space:
Inside the top of the rack is a patch panel mounting bracket with the horizontal mounting rails below. Air vents are located at the bottom of the rack ready for 120mm fans to be installed.
Security and Accessibility
Saving Floor Space
- Inside the top of the rack is a patch mounting bracket with horizontal mounting rails below. Air vents are located at the bottom of the rack and allow for 1200mm fans to be installed.
Cable Access and Management
12 total punch outs for routing cables. Circular punch outs located on the top (5) and bottom (5), rectangular punch outs (2) located on the back of the rack.
Vented Locking Hinged Cabinet Door With Latch
Tab on the locking hinged door must be pressed down to avoid equipment damage.
Adjustable Vertical Mounting Bracket
Adjustable mounting depths between 20-23” for 180-5281 and 27-30” for 180-5282, compatible with M6/12-24 screws.
Optional Patch Panel
Additional 2U slide-out mounting bracket to secure patch panels for easy cable access.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | No |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | China |
| Included Hardware | Included |
| Rack Type | Enclosed, Wall Mount |
| Dell Part Number | 180-5282 - AA503081 |
| Synnex Part Number | 180-5281 - 5460292 180-5282 - 5460302 180-5416 - 4879336 |
| Ingram Part Number | 180-5281 - 5BM804 180-5282 - 6GR774 180-5416 - 6GT645 |
| Rack Height ( U Height) | 5U |
| Finish | Black |
