105-B Wall Mount for Dell, HP Mini and Zotac (Tilt Monitor)
Wall Mount for SFF PCs

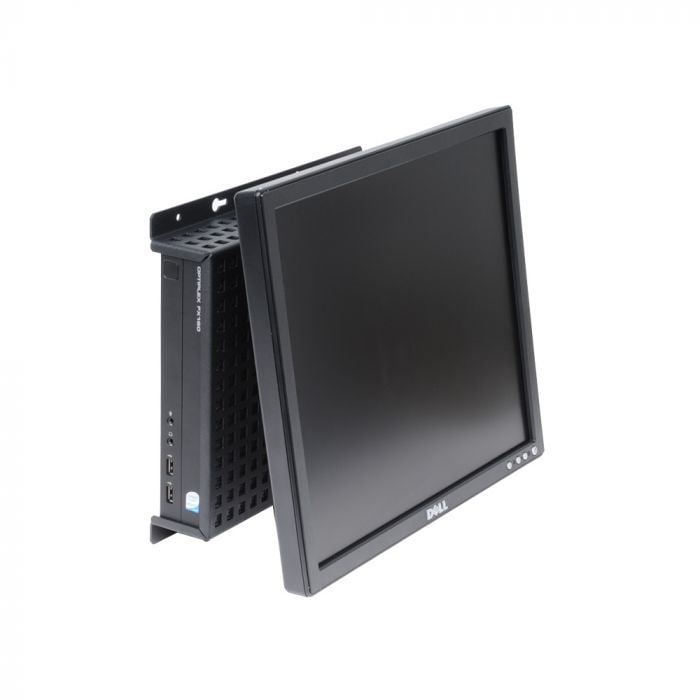

- Wall mounts a PC with monitor for an all-in-one solution
- Compatible with Dell, HP, and Zotac PCs
- Open front for easy access to front ports and power button
- Removable rear cover to limit access to vital rear ports
- Wall mount bracket supports up to 50 lbs
- Compatible with monitors using 75 mm and 100 mm VESA hole pattern
- Includes tilt bracket to adjust the monitor to a more comfortable position
- All required mounting hardware is included
Compatible Products
- OptiPlex FX160
- HP EliteDesk 800 Mini Series
- HP EliteDesk 800 G4 Mini
- HP EliteDesk 700 Mini Series
- HP EliteDesk 705 G4 Mini
- HP ProDesk 600 G4 Mini
- HP ProDesk 400 Mini
- Zotac ZBox B Series
- Zotac ZBox R Series
Read the Burger King case study to see how they used this wall mount in their kitchen.
NOTE: See "Additional Information" below for all compatible models.Â
Â
RackSolutions' Dell OptiPlex FX160 / HP EliteDesk 800 Mini Series Wall Mount is designed to mount a range of SFF PCs along with a monitor, creating a space-efficient all-in-one solution. While the mount was designed for Dell's FX160 and HP's EliteDesk 800 Mini Series, the mount is also compatible with the HP EliteDesk 700 Mini Series. Additionally, the wall mount will also work with Zotac ZBox B and R Series PCs. The wall mount is an excellent solution for clearing desk space or for work areas that need to utilize floor space, such as warehouses or cramped backroom work areas. A monitor can be attached to the mount using the VESA hole pattern on the mount, or by using the included tilt bracket, which allows the monitor to be positioned in a more comfortable position. All mounting hardware is included.
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 6.546000 | Country of Manufacture | United States | OEM Compatibility | Dell, HP / HPE | Finish | Powder coated black | Synnex Part Number | RETAIL-DELL-WALL-007 - 5496761 | Ingram Part Number | RETAIL-DELL-WALL-007 - Y74726 |
|---|
Assembly Components:
- (1) Main Bracket
- (1) Cover
- (1) Pivot Assembly
Monitor Hardware Package:
- (8) Nylon Spacers
- (5) M4 x 10mm Pan Head Screws
- (5) M4 x 18mm Pan Head Screws
- (5) M4 x 25mm Pan Head Screws
- (5) 8-32 Flat Head Screws
Wall Mount Hardware Package:
- (4) Pan Head Screw
- (4) Anchors
