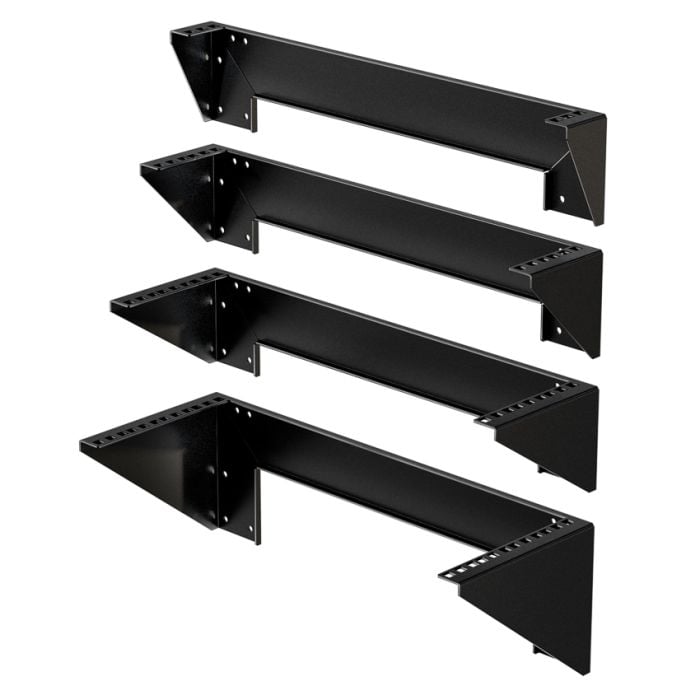

Vertical Wall Mount Rack 1U - 4U
Vertical Rack for 19 Inch Network Equipment
- Mounts server and network equipment flush against the wall to save space
- Low-profile vertical rack perfect for when a server rack is too much
- Great for mounting servers, network switches, routers, patch panels, KVM switches, and power strips
- Also mounts under a desk or to the ceiling.
- Equipment mounts to standard EIA universal, square mounting holes
- Installation hardware, sheetrock anchors, and cage nuts included
Built to Last
- Proudly made in Texas from high-quality 16-Gauge cold-rolled steel
- 200 lb weight capacity when mounted on 16" wooden center studs 35 - 105 lb weight capacity (depending on size) when mounted to dry wall using included sheetrock anchors
See "Additional Information" for Tech Specs.
Our rack mount bracket is a perfect solution for small or home offices. In environments where a server rack is too much or there's just not enough room, this wall mount can flush mount your 19" equipment vertically to the wall or horizontally to the bottom of a desk. With up to a 200lb load capacity, can handle everything from switches and patch panels to heavy servers. Any equipment mounted horizontally must be attached with two brackets so that there are four areas of support. This vertical wall mount rack works with standard 19" server, networking, and telecommunications equipment from Dell, HP, IBM, Apple, Sun, Intel, Cisco, Juniper, 3Com and more.

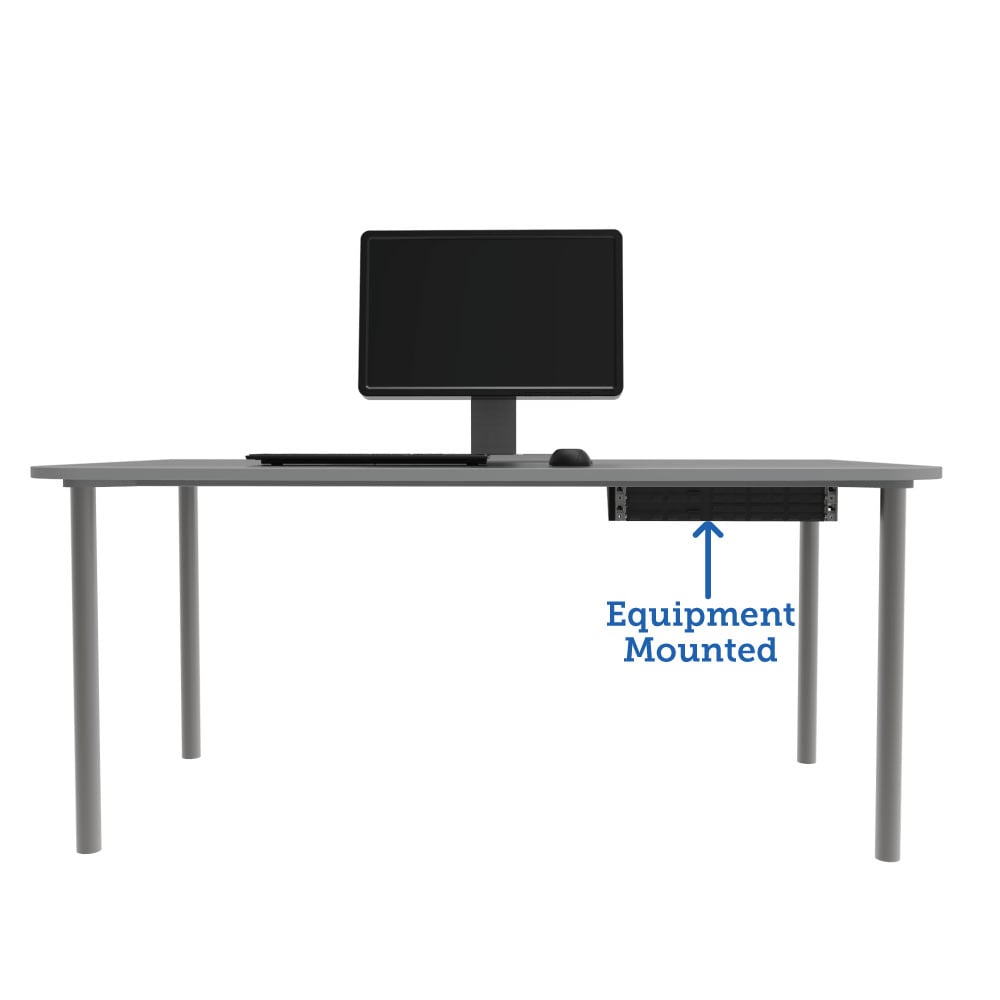

Mount It on a Wall or Under a Desk
The vertical wall mount rack's low-profile flush mounts networking equipment against the wall can hide it under a desk.

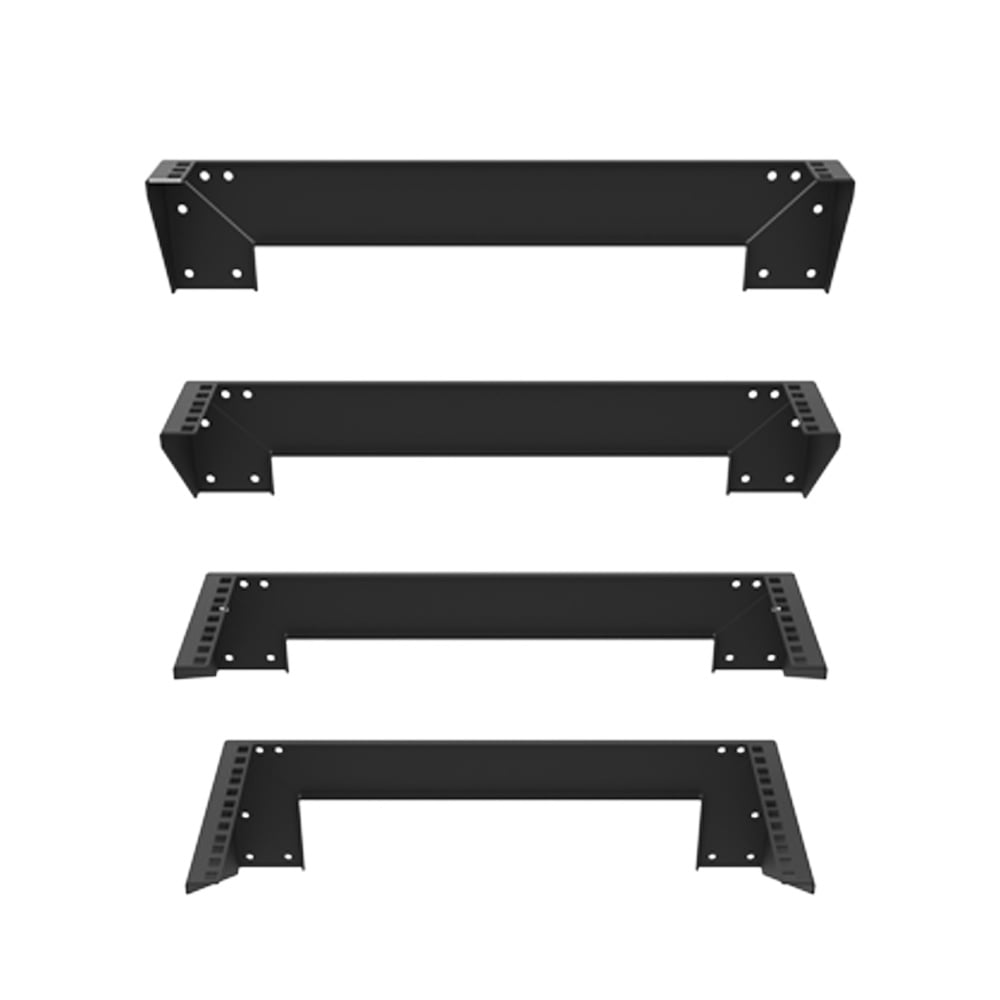

1U - 4U Sizes Available
1U - 4U vertical network racks available for rack mounting 19-inch server and telecommunications equipment including heavy servers, patch panels, routers, and network switches.

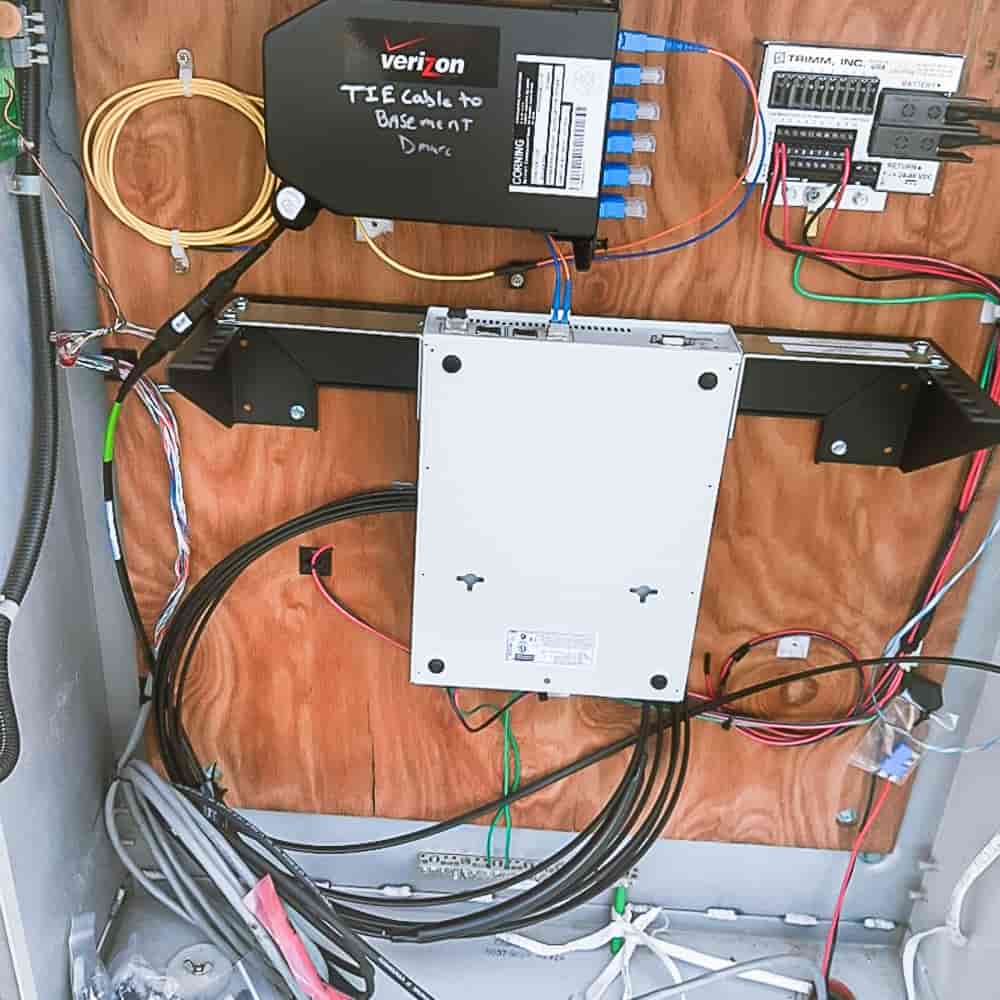

Installation Example
This is not only an example of how our vertical wall mount can be utilized in a business setting but how you can add reducer brackets, converters or adapters that allow you to mount all types of equipment on it.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | United States |
| Included Hardware | 1URACK-119 | 2URACK-119 | 3URACK-119 | 119-5028
|
| Rack Type | Wall Mount |
| Dell Part Number | 119-5028 - A8930307 1URACK-119 - A0414987 2URACK-119 - A0646538 3URACK-119 - A0586373 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Synnex Part Number | 1URACK-119 - 4614587 2URACK-119 - 4614588 3URACK-119 - 4614589 119-5028 - 4614590 |
| Ingram Part Number | 1URACK-119 - E93178 2URACK-119 - E93179 3URACK-119 - E93180 119-5028 - 4F3453 |
| Tech Notes | Note: Metal has a weight capacity of 200 lbs. The weight capacity with the included drywall anchors are as followed: 1URACK-119: Weight Capacity of 35 lbs (16 kg) 2URACK-119: Weight Capacity of 70 lbs (32 kg) 3URACK-119: Weight Capacity of 105 lbs (48 kg) 119-5028 (4U):Weight Capacity of 105 lbs (48 kg) Load capacity is limited by fasteners. For increased load capacity up to 200 lbs contact a professional engineer for mounting recommendations. |
| Rack Height ( U Height) | 1U - 4U |
| Finish | Black, textured powder coat |
Download Vertical Wall Mount Rack 1U - 4U Data Sheet (opens in a new tab)
Download Vertical Wall Mount Rack 1U - 4U Installation Instructions (opens in a new tab)
Download 1U Vertical Wall Mount (1URACK-119) Dimensional Drawings (opens in a new tab)
Download 2U Vertical Wall Mount (2URACK-119) Dimensional Drawings (opens in a new tab)
Download 3U Vertical Wall Mount (3URACK-119) Dimensional Drawings (opens in a new tab)
Download 4U Vertical Wall Mount (119-5028) Dimensional Drawings (opens in a new tab)
