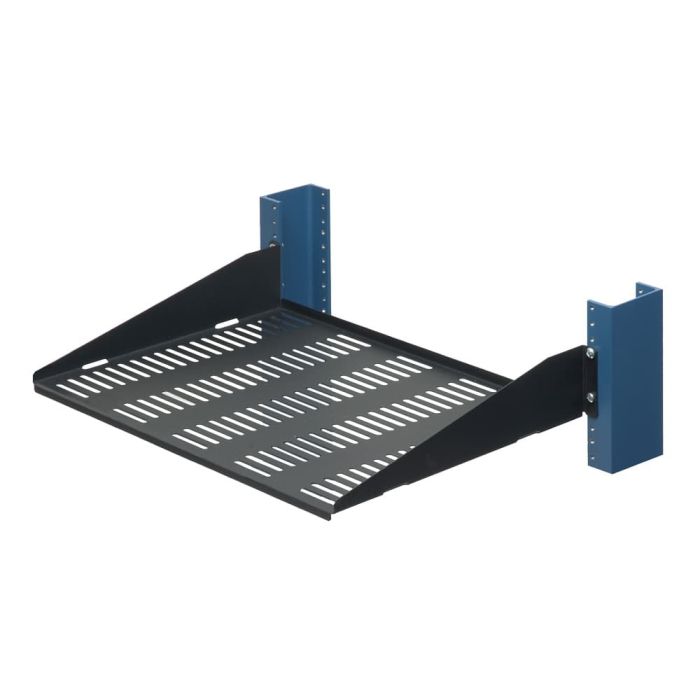

RackSolutions' fixed 2U Cantiliver Rack Shelf has a depth of 13 inches, (330 mm) and a weight capacity of 60 lbs (27.2 kgs) making it perfect for rack mounting smaller networking, AV, and other equipment that might not ordinarily be rack mountable. Our 2 Post rack shelves are compatible with most standard EIA 19" 2Post relay and telco racks and 4Post racks and cabinets. These fixed rack shelves are cantilever, meaning they mount to the rack at only one end of the shelf. Both vented and solid shelf options are available depending on your airflow needs. The shelf features flanges that can face either up or down meaning that the shelf can be mounted upside down to fit a wider variety of needs for different types of electronic equipment. Equipment strap slots found along the side of the shelf allow straps to be looped through the shelf to secure equipment to the shelf.
2U Cantilever 2 Post Rack Shelf FeaturesRackSolutions 2U Cantilever 2 Post Rack Shelf is avaliable vented or solid with flanges up or down.
- Additional Information
Assembly Notes Phillips head screwdriver required Equipment Depth The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement. Shelf Type Solid , Vented Rack Type 2 Post , 4 Post Fixed/Sliding Fixed Shelf Surface Area Flanges Up: 19.89" x 17.5" (505 x 445 mm) Flanges Down: 20" x 17.5" (508 x 445 mm) Finish Black textured powder coat Mounting Depth Range These relay rack shelves are cantilever mounted and will install into any relay rack, as well as any 4Post server rack Included Hardware 10-32 & 12-24 pan head screws Rack Units 2U Tool-less/Standard Standard Overall Installation Depth 13" (330 mm) Material 16 GA Steel RoHS Compliant Yes Tech Notes These relay rack shelves can be installed in a 4Post server rack.
Shelf depth is measured from front to rear excluding flanges.
