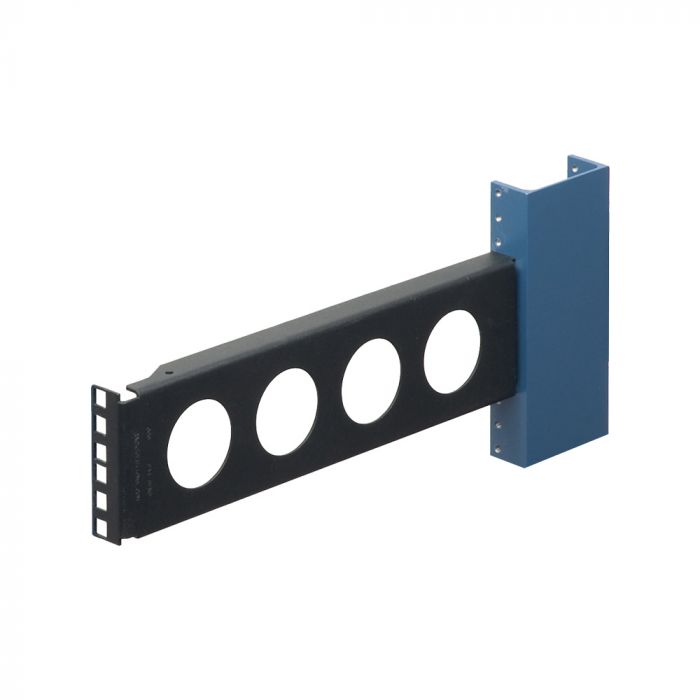

2Post Conversion Bracket

As low as £0.00 £0.00
In stock

Mount 4Post equipment in 2Post racks

  • Converts space in a 2Post Rack to allow 4Post equipment
  • Convert only the space you need
  • Couple several brackets together for contiguous space
  • 3", 5", 6" depths available
  • High quality solid steel construction
  • Sold individually (one bracket per pack)
  • 4 brackets required for mounting a server with rails

Compatible with any 2Post rack

  • Works with standard EIA 19" racks or 23" telecommunications racks
  • Mounts using square, round, or threaded holes
  • 50lb weight capacity per U space

Bundle and Save (opens in a new tab)



NOTE: Hardware not included. Rackmount hardware can be purchased here.

RoHS-Symbol (desktop image)RoHS-Symbol (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)

RackSolutions 2Post conversion brackets one key issue with 2Post racks, mounting 4Post equipment. Rather than purchasing a 4Post rack for only a few pieces of equipment, conversion brackets allow 4Post equipment such as servers using 4Post rail kits to be mounted in a 2Post rack. The 2Post conversion brackets essentially convert a small amount of space in your 2Post rack into a 4Post rack. Coupled together, the brackets can convert as much of the 2Post rack as needed. The brackets are sold in individual packs, so 4 brackets must be purchased to mount one piece of 4Post equipment in the rack.

Chassis and Rail Width Instructions (desktop image)Chassis and Rail Width Instructions (mobile image)

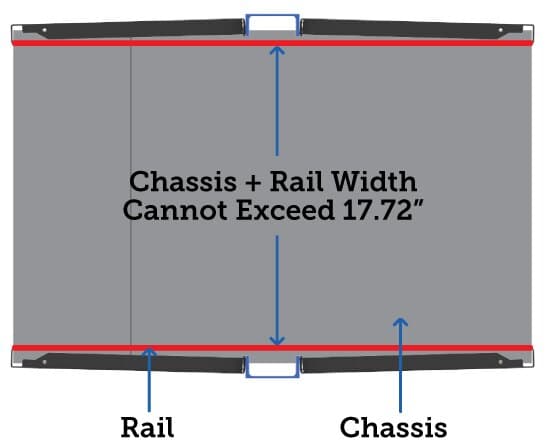

Compatible with most servers

The server chassis when attached to the rail kit can not exceed 17.72" to be compatible

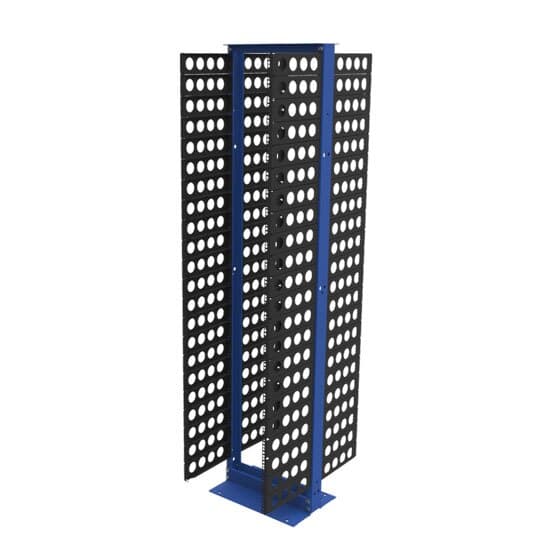

Create a 4 Post cabinet on a 2 Post relay rack (desktop image)Create a 4 Post cabinet on a 2 Post relay rack (mobile image)

Create a 4 Post cabinet on a 2 Post relay rack

If the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.

More Information
Country of Manufacture United States
Dell Part Number 2UBRK-000C: AB064953
2UBRK-000C-5: AB064949
Ingram Part Number 2UBRK-000C - NE9990
2UBRK-000C-6 - 3FM343
Tech Notes
  • Part Number 2UBRK-000C 2U tall x 13.07" deep. 2Post conversion bracket for 3" uprights
  • Part Number 2UBRK-000C-5 2U tall x 11.07" deep. 2Post conversion bracket for 5" uprights
  • Part Number 2UBRK-000C-6 2U tall x 9.82" deep. 2Post conversion bracket for 6" uprights
Material Type Solid steel construction
RoHS Compliant Yes
TAA Compliant Yes
