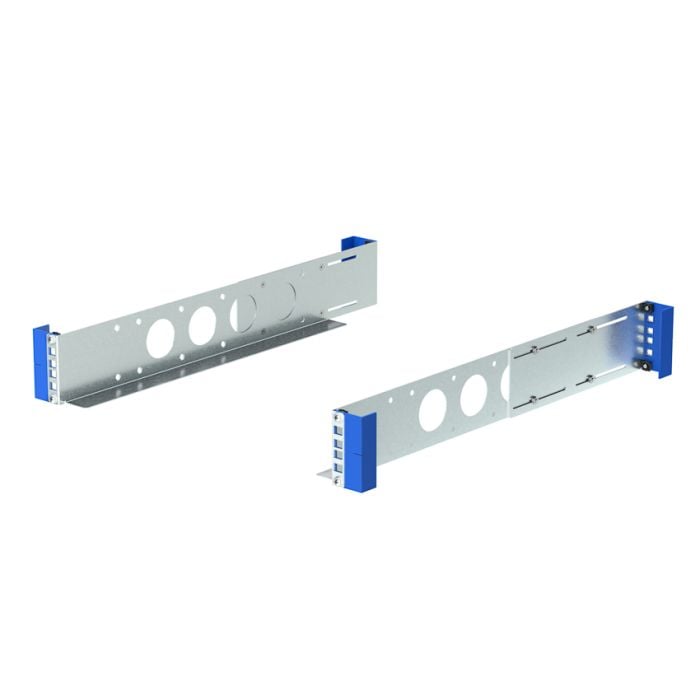

Universal Shallow Rack Rails

As low as £48.00 £40.00
In stock

Fits square, round or threaded holes

  • Rack mounts a variety of equipment
  • Mounting depths from 10" - 24" (254 - 609.6 mm)
  • 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)

Dell, HP & IBM compatible

  • Alternative to OEM slide rails

Rack rails can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 200 lbs (91 kgs) can be installed using rack rails. The rack rail can be installed into server racks with installation depths from 10" - 24" (254 - 609.6 mm).

Adjustable Rack Rails and Square Hole Mounting

The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.

The rails to be compatible with round, square or threaded hole racks.

XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
10 - 31.5"
(254-800 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
2-Post Only

Mounting Depth Range
Center or Flush Mount

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
28 - 30"
(711 - 762 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
No

XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

Size Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

Blue Stack Logo Web CC (desktop image)Blue Stack Logo Web CC (mobile image)
XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)
XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)
XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)
XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)
XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

4-Post

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Cable Management Bar

Yes

Yes

Yes

No

Yes

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 1UKIT-109-20 | 2UKIT-109-20 | 3UKIT-109-20
  • Components:
    • (1) Left Fixed Rail
    • (1) Right Fixed Rail
    • (2) Rear Brackets
  • Assembly Hardware Kit:
    • (8) 8-32 Flat Head Screws
    • (8) 8-32 Nuts
  • Cage Nuts for Equipment Thumb Screws:
    • (2) 10-32 Cage Nuts “Silver” (Dell Standard)
    • (2) 12-24 Cage Nuts “Black”
    • (2) M6 Cage Nuts “Gold” (HP-Compaq Standard)
  • Rack Hardware Kit (2 bags):
    • (8) 10-32 Pan Head Screws
    • (8) 12-24 Pan Head Screws
    • (8) 12-24 Cage Nuts
    • (8) 12-24 Square Nuts
Compatibility Universal
Dell Part Number 1UKIT-109-20 - A2778999
Synnex Part Number 1UKIT-109-20 - 4614573
2UKIT-109-20 - 4614574
3UKIT-109-20 - 4614575
Ingram Part Number 1UKIT-109-20 - Y74703
2UKIT-109-20 - PQ8682
Fixed/Sliding Fixed
Finish Galvanized
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
