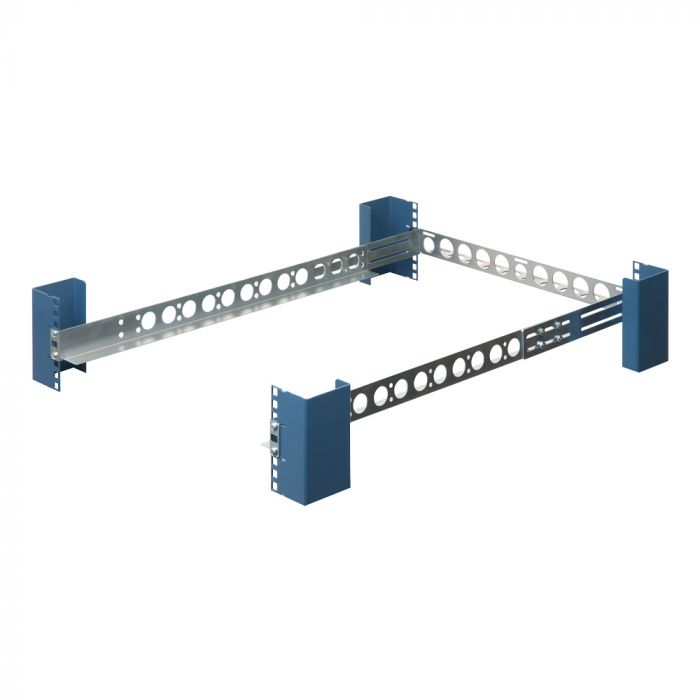

Deep Rackmount Rails

P/N: Rail Model 109-31

Designed for deep server racks

  • Installs in server racks up to 39.5" (1003 mm)
  • Work with square, round, threaded holes
  • 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)

Dell, HP & IBM compatible

  • Alternative to OEM slide rails
  • Mounting depth from 0" to 39.5" (0 mm - 1003 mm)
  • Universal rails mount in any 4Post rack

Alternate products

Product Name P/N: Availability Price Qty
1U, 31" Rackmount Rail 1UKIT-109-31
Call to Order
2U, 31" Rackmount Rail 2UKIT-109-31
In Stock
3U, 31" Rackmount Rail 3UKIT-109-31
In Stock


31" Universal Rackmount Rails are designed for deep Server Racks. These Rackmount Rails can be installed into racks with square, round, or threaded holes. Rack Mount Equipment weighing up to 200 lbs (90.7 kgs) can be installed using Rackmount Rails. The Rackmount Rail is 30.6" (777 mm) deep and can be installed into Server Racks with installation depths up to 39.5" (1003 mm).

Deep Rackmount Rails - Technical Specifications

Rail OEM All Purpose
Rack Type 4Post 19" EIA-310 Standard Server Rack
Rack Type 4Post
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
Rail Type Fixed Rail
Rack Units 1U, 2U, or 3U
Mounting Depth Range 0" to 39.5" (0mm to 1003.3 mm)
Equipment Width *Maximum Equipment Width: 17.4" (442 mm)
1U Rack Rails Minimum Equipment Width: 16 5/8" (422 mm)
2U Rack Rails Minimum Equipment Width: 16 3/8" (416 mm)
3U Rack Rails Minimum Equipment Width: 16 1/4" (413 mm)
*Maximum equipment width allowed is based on worst case conditions. Wider equipment may fit depending on the mounting configuration and/or actual equipment dimensions. Please contact technical support for further assistance.
Equipment Depth The Rack Rails support flange is 31" (787 mm) long.
The Rack Rail will support servers computers or equipment up to 36" (914 mm) deep.
Weight Capacity 1U: 45 lbs (20.4 kgs)
2U: 75 lbs (34 kgs)
3U: 200 lbs (90.7 kgs)
Overall Installation Depth Min: 31" (787 mm)
Max: 41.25 (1047 mm)
Cable Management Cabling Crossbar
Included Hardware
  • Components
  • (1) Left Fixed Rail
  • (1) Right Fixed Rail
  • (2) Rear Brackets
  • (1) Cable Crossbar
  • (1) 30" Velcro Cable Tie
  • Includes screws, cage-nuts, and nuts for all standard rack types

  • Assembly Hardware Kit
  • (8) 8-32 Flat Head Screws
  • (8) 8-32 Nuts
  • Cage Nuts
  • (2) 10-32 Cage Nuts
  • (2) 12-24 Cage Nuts
  • (2) M6 Cage Nuts

  • Rack Hardware
  • (12) 10-32 Pan Head Screws
  • (12) 12-24 Pan Head Screws
  • (12) 12-24 Cage Nuts
  • (12) 12-24 Square Nuts
Finish Zinc Plated
Tech Notes The Rackmount Rail Kit should be used when the depth of the Server Rack exceeds the installation range of the Server's Rail Kit. The Rackmount Rail Kit can be used in circumstances where the original Rail Kit has been lost or damaged.
