Top view vented flange down - 7" Relay Shelf

 Top view vented flange down - 7" Relay Shelf

Hover to View, Click to Zoom

  • Top view solid flange down - 7" Relay Shelf
  • Top view vented flange up - 7" Relay Shelf
  • Top view solid flange up - 7" Relay Shelf

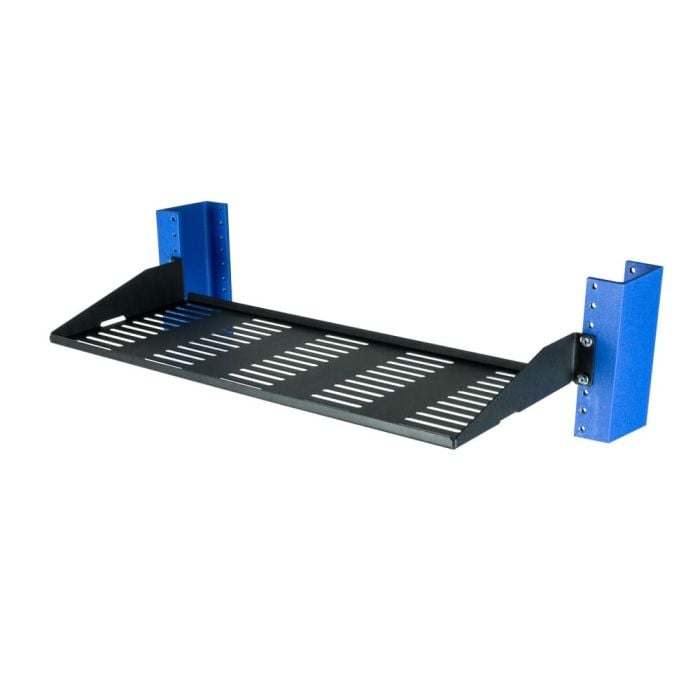

2 Post Rack Shelf - 7"

P/N: 1USHL-022HALF-7

Mounts in any 19" 2Post relay rack

  • Weight capacity 30 lbs (14 kgs)
  • Vented or solid options

Supports electronic equipment

  • Equipment stop flanges (up or down)
  • Optional straps & anti-slip mats secure equipment
  • Made in the USA from 16 GA steel
Product Name P/N: Availability Price Qty
2 Post Rack Shelf - 7" Vented, Flanges Up 1USHL-022HALF-7UV
Call to Order
£19.00

2 Post Rack Shelf - 7" Vented, Flanges Down 1USHL-022HALF-7DV
In Stock
£19.00
2 Post Rack Shelf - 7" Solid, Flanges Up 1USHL-022HALF-7US
Call to Order
£19.00

2 Post Rack Shelf - 7" Solid, Flanges Down 1USHL-022HALF-7DS
In Stock
£19.00

Relay Rack Shelf - Features


More Info

These relay rack shelves are compatible with most 19" EIA standard 2Post relay racks. These relay rack shelves have a 30 lb. equipment capacity and will support a wide variety of electronic equipment. Electronic devices up to 7" deep can be supported on a relay rack shelf. Transport and seismic options are available for these relay rack shelves if the installation requires.

2 Post Rack Shelf - 7" - Technical Specifications

Finish Black textured powder coat
Included Hardware 10-32 & 12-24 pan head screws
Assembly Notes Phillips head screwdriver required
Tech Notes These relay rack shelves can be installed in a 4Post server rack.
Shelf depth is measured from front to rear excluding flanges.
