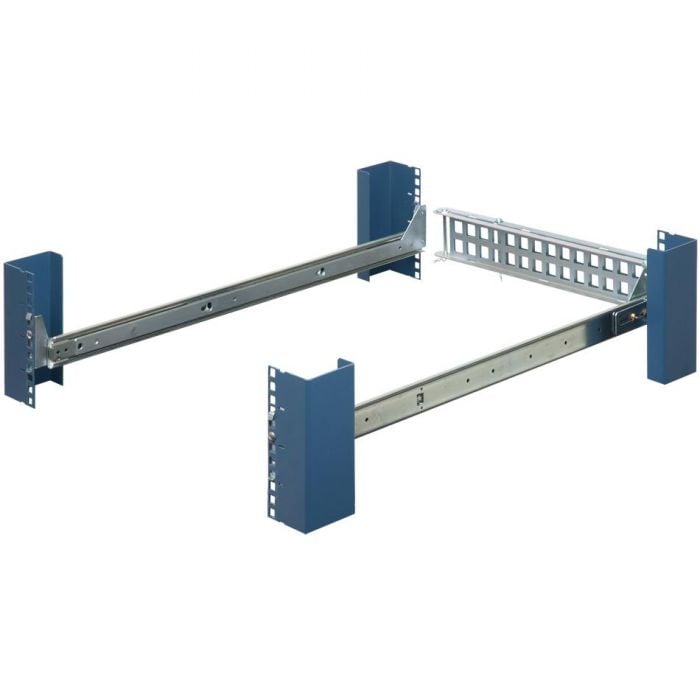

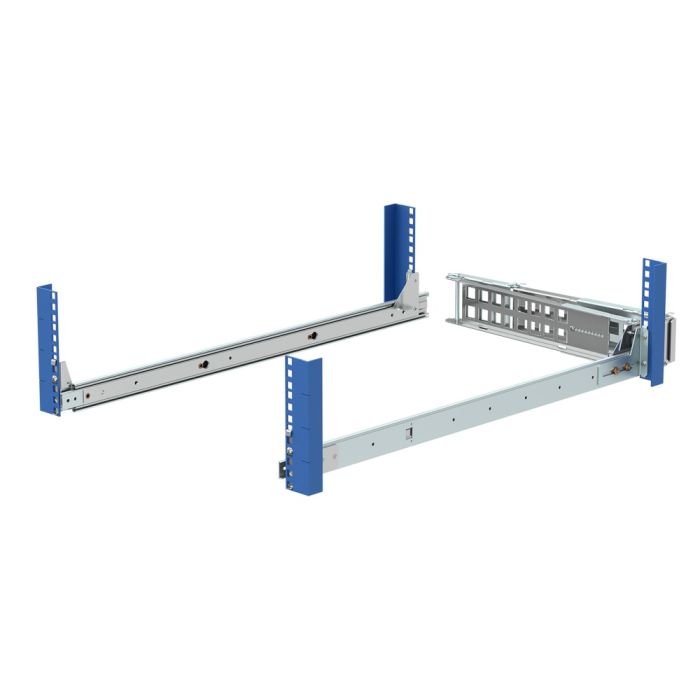

This kit reduces the overall mounting depth of the PE2950 from 36" (914 mm) down to 30.8" (782 mm). This QUICKRAIL-2950 kit replaces the original Dell OEM Ready Rails. This kit is designed to quickly snap into square hole racks without tools. See this Dell 2950 rail kit for other hole types. This QUICKRAIL-2950 kit resolves some of the common issues associated with the Dell OEM Ready Rail kit such as: obstructions with the frame of the rack as well as problems with the installation depth range. This QUICKRAIL-2950 kit comes with complete cable management. This cable management arm reduces the installation depth required by the PE2950 by a full 5.2" (132 mm).
- Additional Information
Compatibility Dell PowerEdge 2950 Dell PowerEdge 2970 Dell PowerEdge 2950 III Dell PowerEdge 2970 Dell PowerEdge R5400 Rail OEM Dell Fixed/Sliding Sliding Tool-less/Standard Tool-less Included Hardware Tool-less. No hardware needed Cable Management Articulated cable management arm included. Rail Type Ball bearing 30" travel (762 mm) Mounting Depth Range Mounting depth 25.2" - 31" (640 - 787 mm) without CMA Mounting depth 29.6" - 30.8" (752 - 782 mm) with CMA Tech Notes This rail kit replaces the Dell rail kit in situations where the Dell rail kit is incompatible with the rack Finish Zinc plated Rack Units 2U Rack Type 4 Post RoHS Compliant Yes Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
