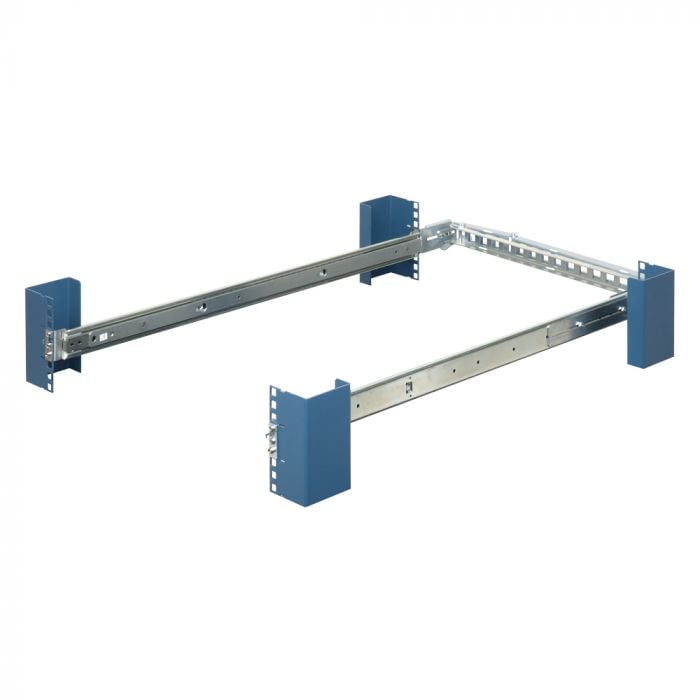

Dell PowerEdge R610 Slide Rails

Availability: In stock

Dell PowerEdge R610 Slide Rails

Fits 4Post racks

  • Fits square, round, threaded holes
  • Adjustable mounting depth of 18 - 31.5" (457 - 800 mm)
  • Dell rail kit not required
  • 2Post mounting also requires conversion brackets (see below)

Alternative to Dell R610 rail kit

  • High quality, ball bearing slide rail
  • Optional (CMA) cable management arm

2Post Mounting

  • 2Post Center Mount requires additional P/N: 2POST-2UKIT
    Mounts up to 2 servers
  • 2Post Flush Mount requires additional P/N: 4UKIT-003
    Mounts up to 4 servers
RackSolutions is a Dell Technology Partner
Rack Solutions Promise
Product Name SKU Price Qty
Dell PowerEdge R610 Slide Rails 1URAIL-R6
Excl. VAT: £105.00 Incl. VAT: £126.00

Out of stock

Dell PowerEdge R610 Slide Rails with CMA 1URAIL-R6-CMA
Excl. VAT: £125.00 Incl. VAT: £150.00
Description

Details

The Dell PowerEdge R610 Slide Rails can provide a stable, sturdy and easy-to-install sliding rail solution for Dell-compatible server racks. Dell PowerEdge R610 Slide Rails are compatible with standard 19" EIA-301 server racks, and can work with either 2 post or 4 post models. In terms of server compatibility, the slide rails are designed for the Dell PowerEdge R610. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 18" and 31.5". Furthermore, users can deploy the RackSolutions Slide Rails regardless of whether or not they have Dell server rack rails currently equipped. Users purchasing the ball bearing slide rail can also enjoy a number of optional supporting features. Those interested can also obtain a cable management arm, a 2 post, center mount that can handle two servers and a 2 post flush mount that allows users to equip four servers with the RackSolutions Dell PowerEdge R610 Slide Rails. The item ships with inner rail/shim assemblies, outer rail/rail bracket assemblies, Keps nuts, Truss Head screws and Pan Head screws. As a result, users need nothing more than a Phillip's head screw driver to install the device.
Additional Information

Additional Information

Compatibility
Dell PowerEdge R610 Slide Rails

Dell PowerEdge R610 Slide Rails with CMA
Dell Part Number
Dell PowerEdge R610 Slide Rails - A3460598

Dell PowerEdge R610 Slide Rails with CMA - A2954917
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware
Kit Contents
(2) Inner Rail/Shim Assemblies
(2) Outer Rail/Rack Bracket Assemblies
Rail Hardware:
(4) 8-32 Keps Nuts
(4) 8-32 x .375 Truss Head Screws
(10) 8-32 x .500 Pan Head Screws
Cable Management Articulated cable management arm (optional)
Assembly Notes Phillips head screwdriver required
Rail Type Ball bearing slide rails
28" (711 mm) extension
Mounting Depth Range 18 - 31.5" (457 - 800 mm)
Rack Units 1U
Rack Type 2 Post , 4 Post
Amazon ASIN 1URAIL-R6 = B00UVKDPDS
1URAIL-R6-CMA = B00UVKDSAS
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
TAA Compliant Yes
